10,000 Psi Air Pump / Rmt Ctrl
- High strength reinforced aluminum alloy reservoir is lightweight and corrosion resistant
- Pressure relief valve for overload protection
- Suggested air pressure range: 90-175 psi / 6-12 bar
- Designed to be used with single acting cylinders
- Dust cover protection for the release control valve
- Dual stage release control valve
- 5AS200 offers a turbo function that features high flow at high pressure condition
- 5AD150M offers a 4-way control valve for operation of double acting cylinders
- Maximum working pressure: 10,000 psi / 700 bar
| Used with Cylinder | Single Acting |
| Usable Oil Capacity, (In.3) | 91.5 |
| Pressure Rating, (PSI) | 10,000 |
| Oil Output Flow Rate, (In.3/Min.), No Load | 61 |
| Oil Output Flow Rate, (In.3/Min.), Load | 10 |
| Input Air Pressure Range, (PSI) | 100-200 |

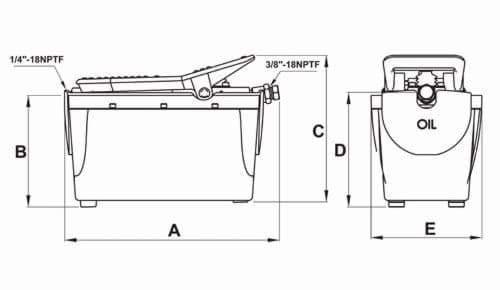

| Dimensions (In.), A | 10.98 |
| Dimensions (In.), B | 6.3 |
| Dimensions (In.), C | 8.03 |
| Dimensions (In.), D | 5.12 |
| Dimensions (In.), E | 5.35 |
