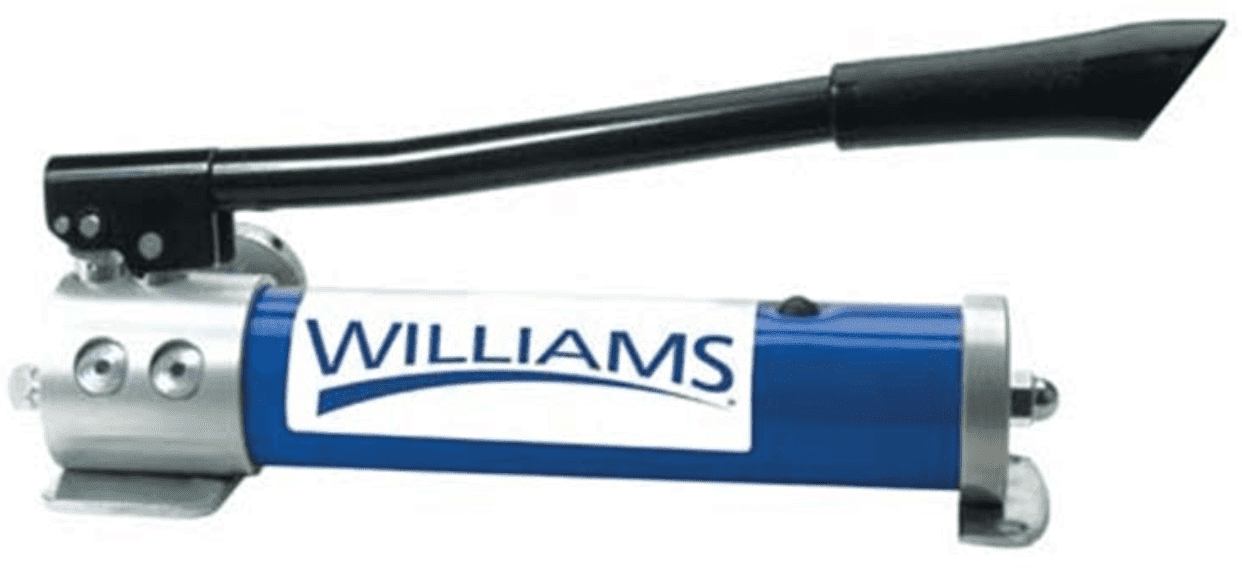

2 Speed H& Pump
- 5HS2S35, 5HS2S100 and 5HS2S200 feature 2 speed operation
- Pressure relief valve for overload protection
- Load release valve for single acting cylinder usage
- Large oil capacities to power a wide range of cylinders and tools
- 5HS2S35 and 5HS2S100 are constructed of high strength lightweight aluminum alloy for easy handling and corrosion resistance
- All hand pumps function in horizontal positions and will also function in some vertical positions
- Maximum working pressure: 10,000 psi / 700 bar
- HAND PUMP SPECIFICATIONS
| Used with Cylinder | Single Acting |
| Pump Type | Two-speed |
| Usable Oil Capacity (In.3) | 61 |
| Pressure Rating, (PSI), 1st Stage | 200 |
| Pressure Rating, (PSI), 2nd Stage | 10,003 |
| Oil Displacement per Stroke, (In.3), 1st Stage | .81 |
| Oil Displacement per Stroke, (In.3), 2nd Stage | .14 |
| Max. Operating Force, (Lbs.) | 132 |
| Piston Stroke, (In.) | .82 |
| Oil Outlet Port | 3/8"-18NPTF |

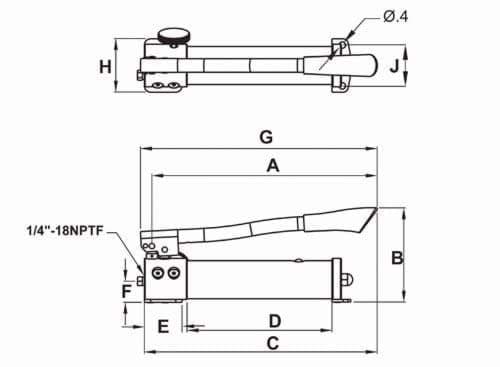

| Dimensions (In.), A | 19.69 |
| Dimensions (In.), B | 6.38 |
| Dimensions (In.), C | 19.88 |
| Dimensions (In.), D | 14.96 |
| Dimensions (In.), E | 3.62 |
| Dimensions (In.), F | 1.26 |
| Dimensions (In.), G | 20.63 |
| Dimensions (In.), H | 4.72 |
| Dimensions (In.), J | 3.94 |
| Dimensions (In.), K | 16.93 |
