5T Single Acting Cylinders 0.25'' Strokeoke 3/8''f
- 39 models
- Internal plunger threads
- Snap in grooved saddles
- Rod wiper seals out dirt and contamination
- Collar fixture threads
- Two base mounting holes on most models
- High strength steel construction from gun drilled solid bar
- High flow 3/8" NPTF couplers
- Collar thread protector
| Cylinder Capacity (Ton) | 5 |
| Stroke (In.) | .63 |
| Cylinder Effective Area (In.2) | 1.1 |
| Pressure at Capacity (PSI) | 9,090 |
| Oil Capacity (In.3) | .69 |

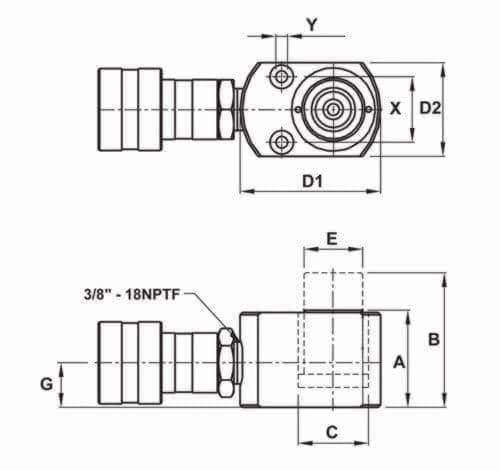

| Collapsed Height, A (In.) | 1.61 |
| Extended Height, B (In.) | 2.24 |
| Cylinder Bore Diameter, C (In.) | 1.18 |
| Outside Diameter, D (In.) | 2.36 x 1.58 |
| Plunger Diameter, E (In.) | .98 |
| Saddle Diameter, F (In.) | N/A |
| Base to Inlet Port, (In.) | .75 |
| Base Mounting Hole, Bolt Circle, (In.) | 1.1 |
| Base Mounting Hole, Thread, (In.) | .2 |
