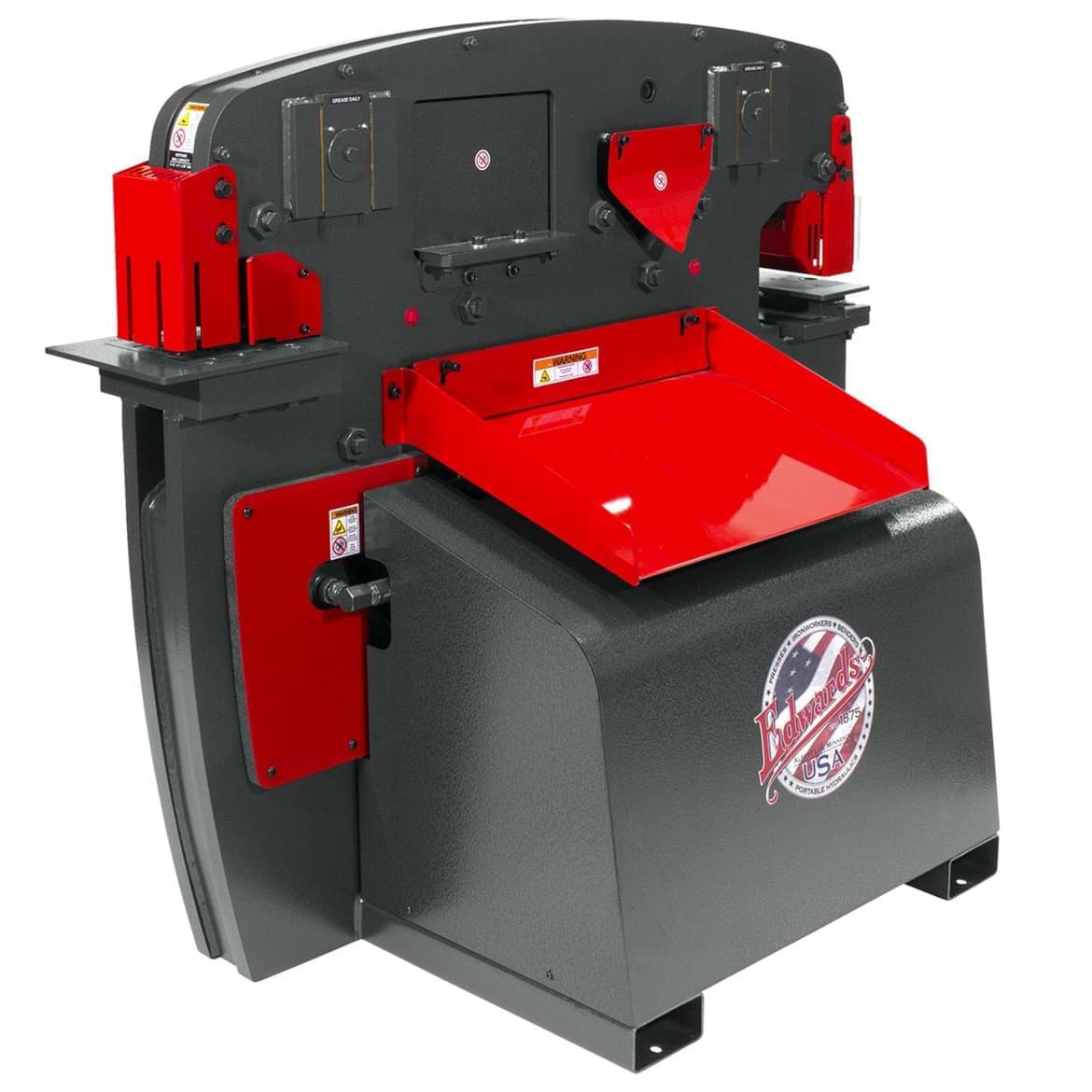

65 Ton Ironworker 230V, 3Ph
- Five Workstations: Standard (4) - Punch, Flat Bar Shear, Angle Shear & Coper Notcher ; Open Cavity (1) - Customize your ironworker with 4 optional Attachments - Brake, Rod Shear, Multi-Shear & Pipe Notcher
- 14 interchangeable Attachments available to tailor the Ironworker to your needs
- 17 optional Accessories available to increase precision and efficiency
- Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine.
- Optimized workstation heights for improved efficiency
- Electric foot pedal with integrated jog control
- Adjustable electric stoke control
- Bright LED lights increase visibility
- ANSI B11.5-1988(02) Compliant Guarding
- ETL Certified Controls
| Punch Rating (Tons) | 65 |
| Punch Max Capacity (In.) | 1-1/16 diam. in 3/4 mild steel |
| Punch Work Height (In.) | 36-9/16 |
| Punch Throat Depth (In.) | 9-3/4 |
| Punch Stroke (In.) | 1-13/16 |
| Flat Bar Shear Max Capacity (In.) | 3/8 x 24, 1/2 x 14, 1 x 4 |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| Flat Bar Shear Max Round Capacity (In.) | 1 |
| Flat Bar Shear Max Square Capacity (In.) | 1 |
| Angle Shear Max Capacity (In.) | 5 x 5 x 3/8 |
| Angle Shear Work Height (In.) | 43-1/2 |
| Coper Notcher Max Capacity (In.) | 2-1/2 x 5 x 3/8 |
| Coper Notcher Work Height (In.) | 39-1/2 |
| Motor | 7.5 HP 230V 3Ph |
| AMPS | 22 |
| Hydraulics (PSI) | 3500 |
| Hydraulic Reservoir (Gal.) | 17 |
| Hydraulics (GPM) | 10-1/2 |
| Product Dimensions (In.) | 62-1/8 x 45 x 57 |
| Shipping Dimensions (In.) | 46 x 69 x 63 |
| Weight (Lbs.) | 4750 |
| Open Cavity Width (In.) | 12 |
| Open Cavity Height (In.) | 8-3/4 |
| Opt. Coper Notcher Work Height (In.) | 43 |
