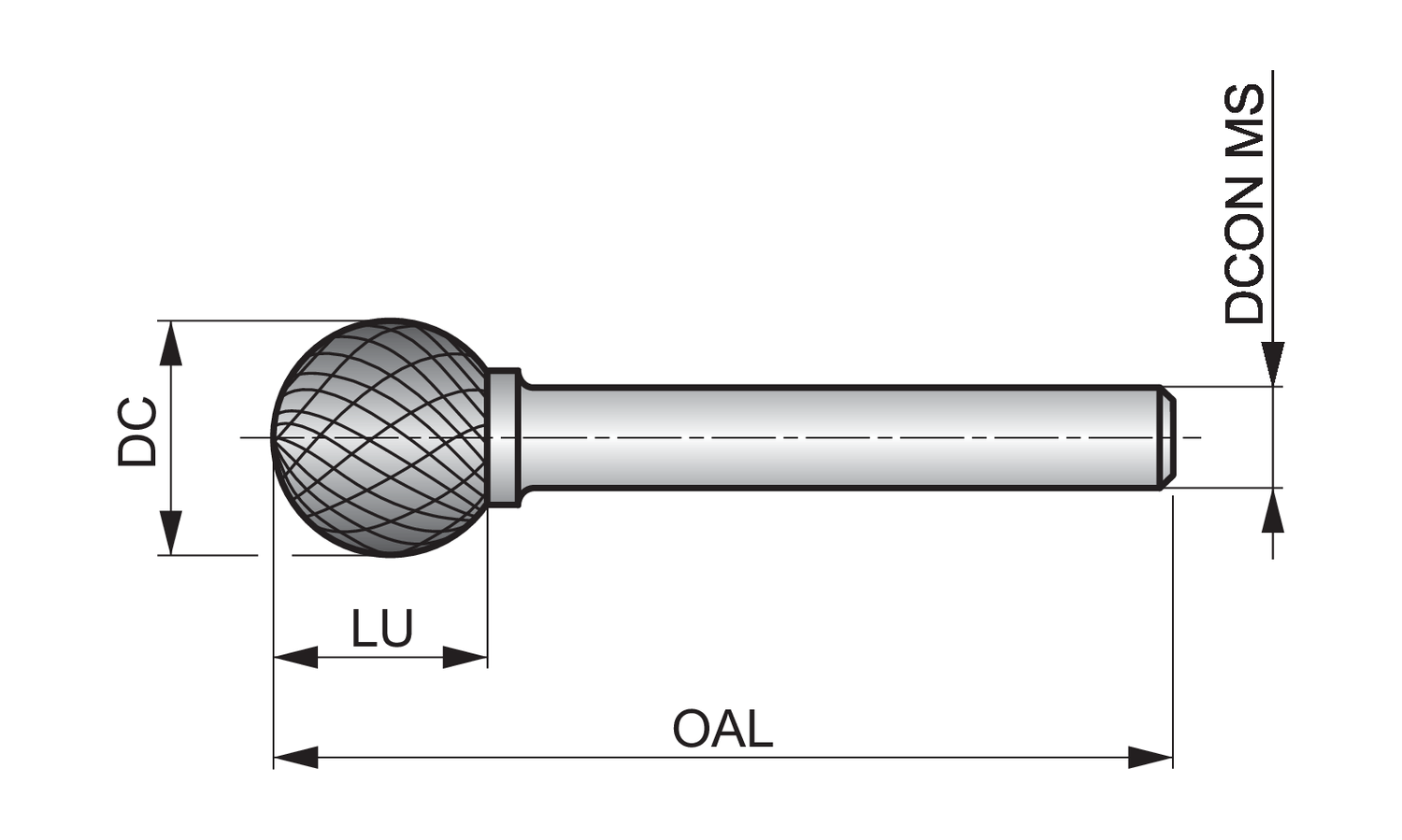

Ball burr (D shape), diameter 3/16" with 1/8" length of cut, 2" overall length and 1/4" shank, solid carbide with bright finish, DC double cut flute style with close spaced edges for intricate carving, metal engraving and welding preparation in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials
- Product Name ISO: SD-01DC
- Ordering Code ANSI: SD-01DC
- EDP Number: 7466275
- Coating: Bright
- Material Code (BMC): HM
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 4.76 |
| Cutting Diameter (In.) | 0.1875 |
| Cutting Diameter Fractional (In.) | 3/16 |
| Connection Diameter (Mm.) | 6.35 |
| Overall Length (Mm.) | 50.8 |
| Connection Diameter (In.) | 0.25 |
| Overall Length (In.) | 2 |
| Material Code | HM |
| Coating | Bright |
| Shank | Cylindrical Shank |
| Burr Shape | D - Ball Shape |
| Burr Type | Double Cut Geometry |
