Ball nose segment copy milling insert for a diameter of .7874" for a maximum depth of cut of .3937", FM geometry and M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with copy end mills K3-CXP
- Product Name ISO: XP 20ER-FM:M8345
- Ordering Code ANSI: XP 20ER-FM:M8345
- EDP Number: 6756180
- Coating: M8345
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 10 |

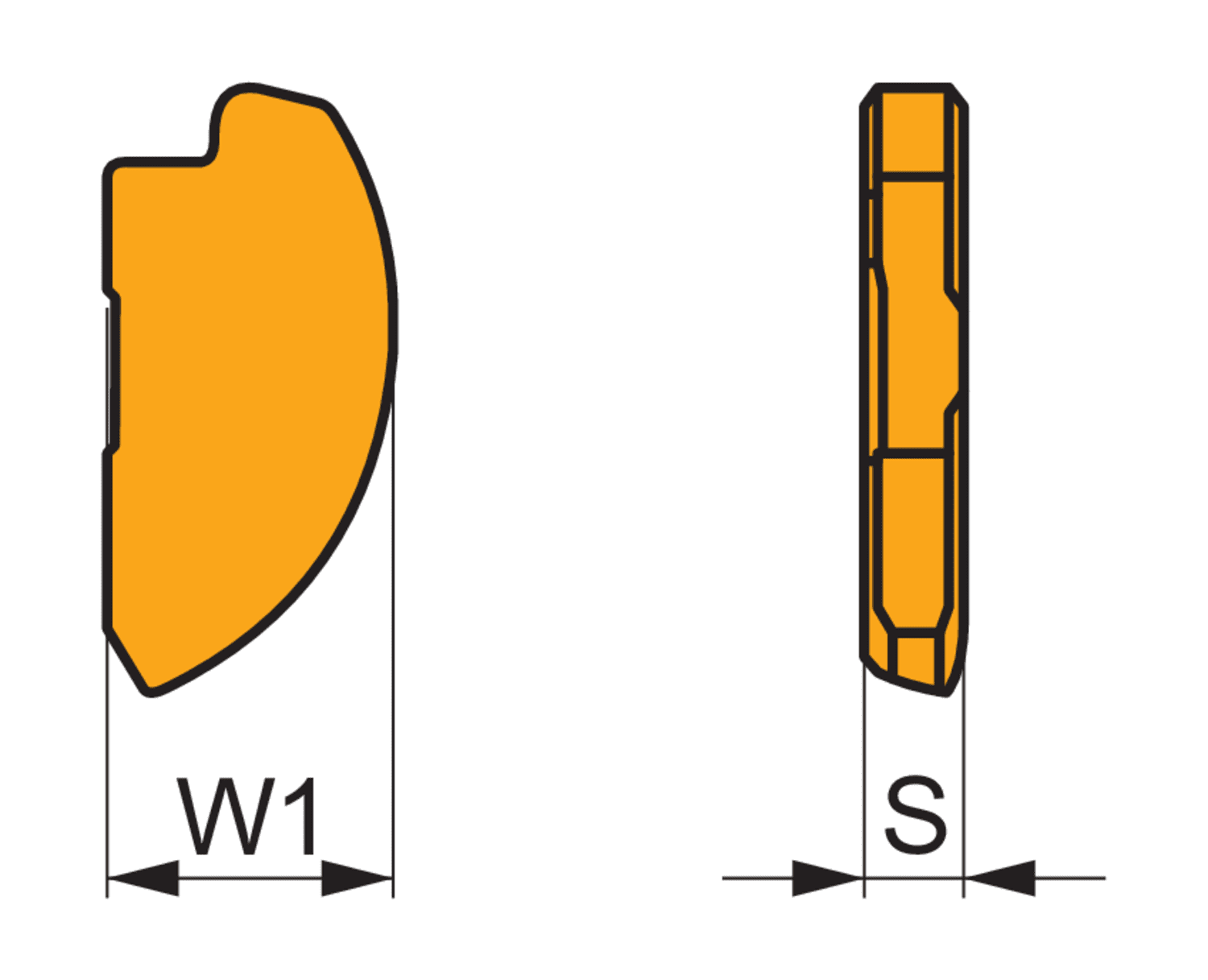

| Insert Thickness (Mm.) | 2.5 |
| Insert Width (Mm.) | 20 |
| Max Depth of Cut (In.) | 0.394 |
| Coating | M8345 |
