Ball nose segment copy milling insert for a diameter of .7874" for a maximum depth of cut of .3937", FM geometry and M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy end mills K3-CXP
- Product Name ISO: XP 20ER-FM:M8330
- Ordering Code ANSI: XP 20ER-FM:M8330
- EDP Number: 7451124
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 10 |

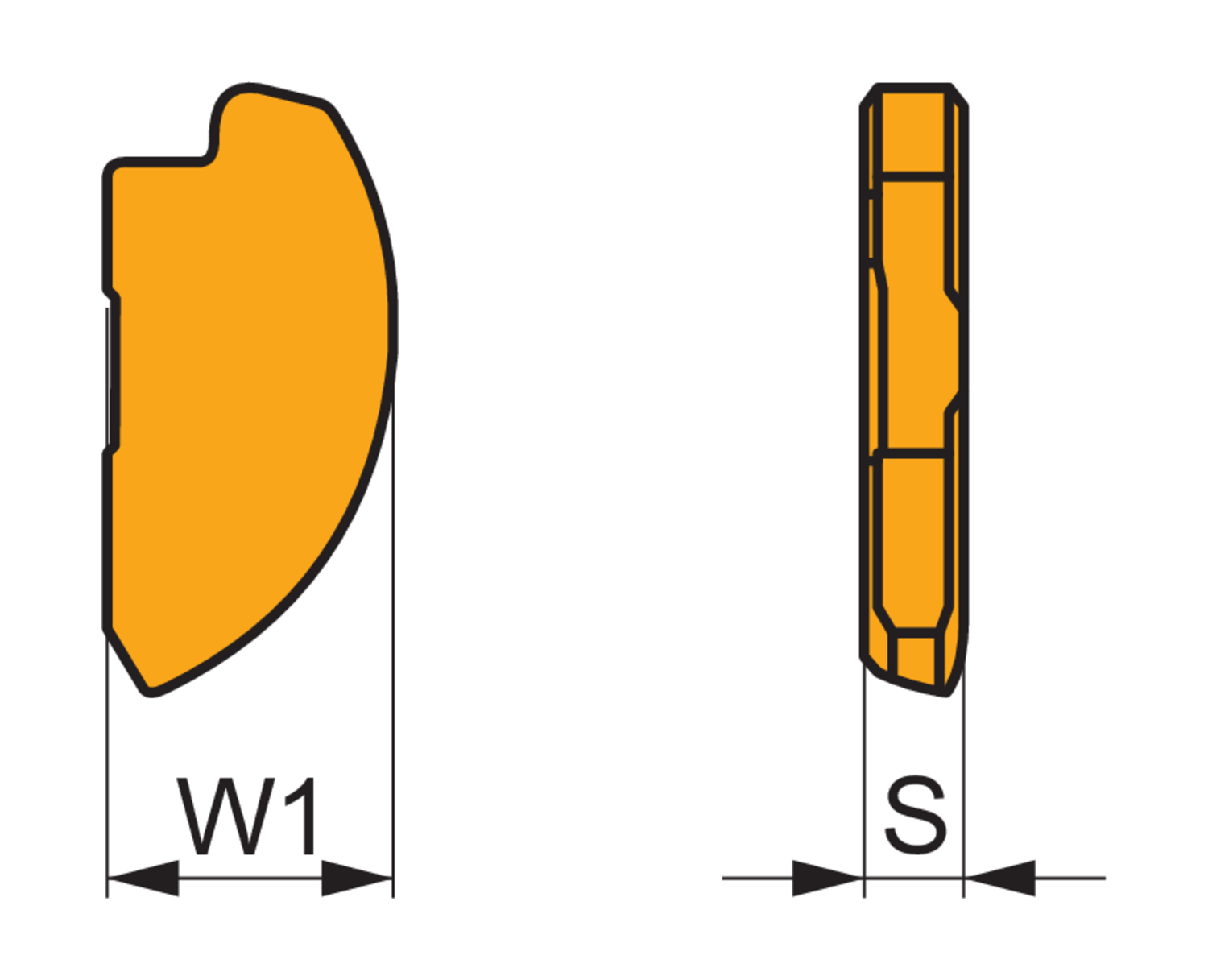

| Insert Thickness (Mm.) | 2.5 |
| Insert Width (Mm.) | 20 |
| Max Depth of Cut (In.) | 0.394 |
| Coating | M8330 |
