Ball-nosed cone burr (L shape), diameter 1/2" with 1.1/8" length of cut, 2.7/8" overall length and 1/4" shank, carbide tipped with toughened and hardened steel shank and bright finish, FM single cut flute style with wide speced edges for enlarging holes, rounding edges and surface-finishing in tight narow angles or other hard-to-reach areas in wrought, cast aluminium and glass fibre reinforced polymers
- Product Name ISO: SL-40FM
- Ordering Code ANSI: SL-40FM
- EDP Number: 7466357
- Coating: Bright
- Material Code (BMC): HM
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)

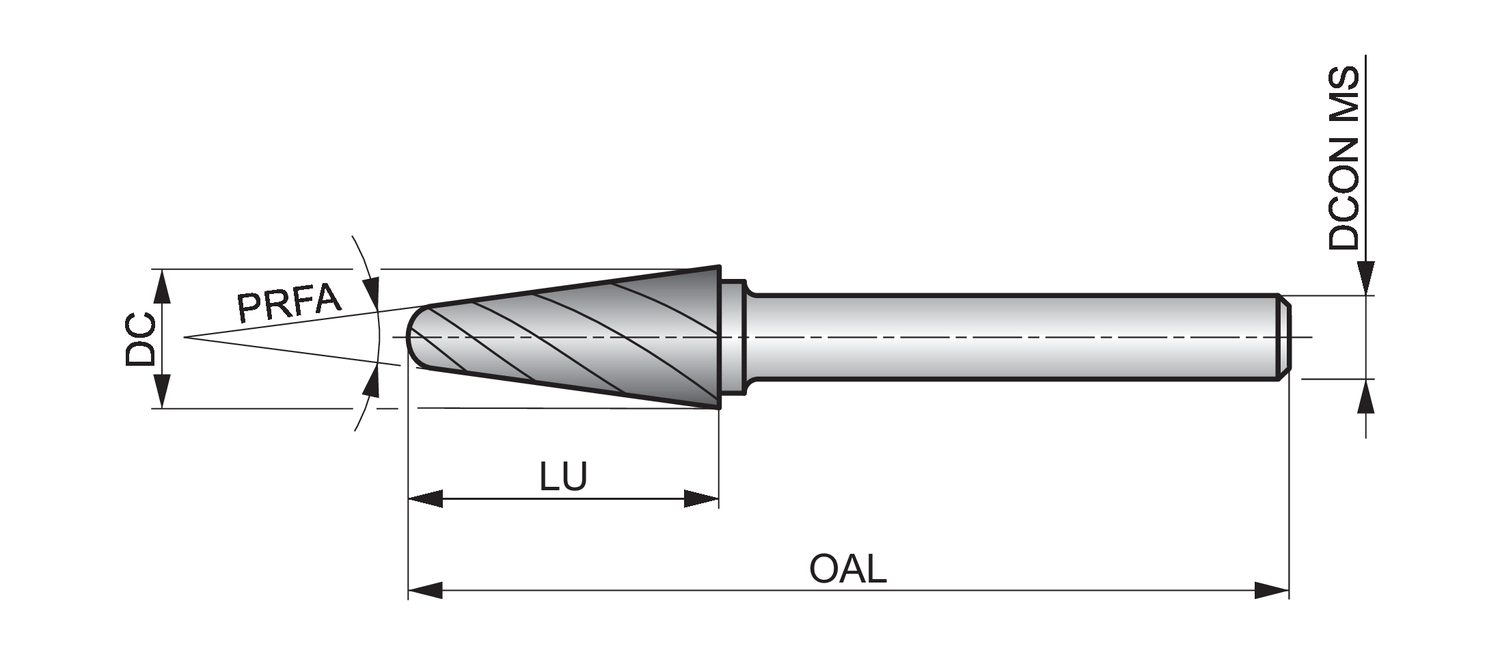

| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 12.7 |
| Cutting Diameter (In.) | 0.5 |
| Cutting Diameter Fractional (In.) | 1/2 |
| Connection Diameter (Mm.) | 6.35 |
| Overall Length (Mm.) | 73.03 |
| Profile Angle | 14 |
| Connection Diameter (In.) | 0.25 |
| Overall Length (In.) | 2.875 |
| Material Code | HM |
| Coating | Bright |
| Shank | Cylindrical Shank |
| Point Angle | 14 |
| Burr Shape | L - Ball Nosed Cone Shape |
| Burr Type | Aluminium Cut Geometry |
