Ball nosed copy milling insert with a diameter of .4724" for a maximum depth of cut of .0472", CL1 geometry and 2003 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy end mills K2-PPH
- Product Name ISO: PPH 1200-CL1:2003
- Ordering Code ANSI: PPH 1200-CL1:2003
- EDP Number: 7156082
- Coating: 2003
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)

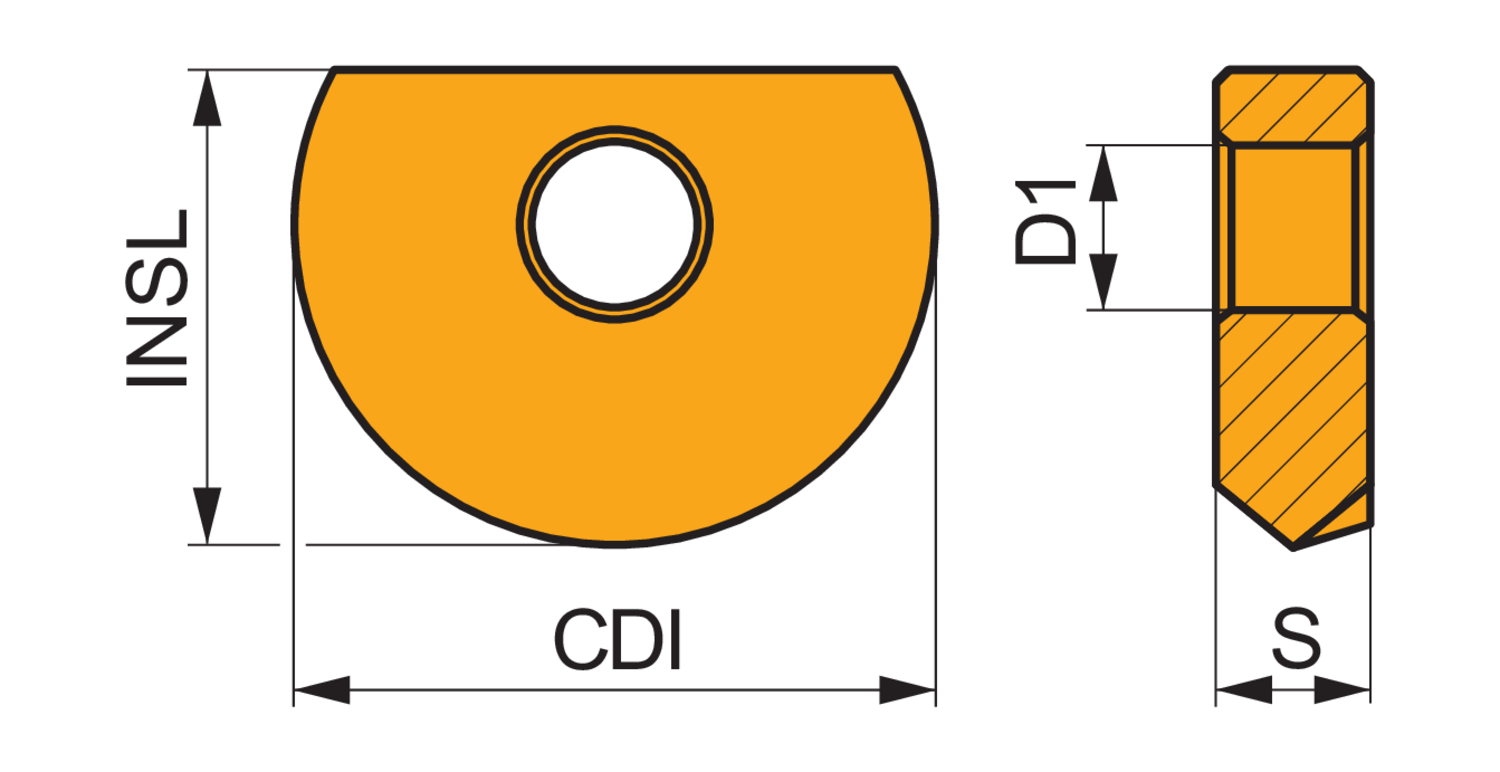

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 3.5 |
| Insert Length (Mm.) | 10 |
| Insert Thickness (Mm.) | 3 |
| Max Depth of Cut (In.) | 0.047 |
| Coating | 2003 |
