Ball nosed copy milling insert with a diameter of .6299" for a maximum depth of cut of .063", SM1 geometry and 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10-P20 and K10-K25 for machining of steel, cast-iron and hardened material with copy end mills K2-PPH
- Product Name ISO: PPHE 1600-SM1:8215
- Ordering Code ANSI: PPHE 1600-SM1:8215
- EDP Number: 7156098
- Coating: 8215
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

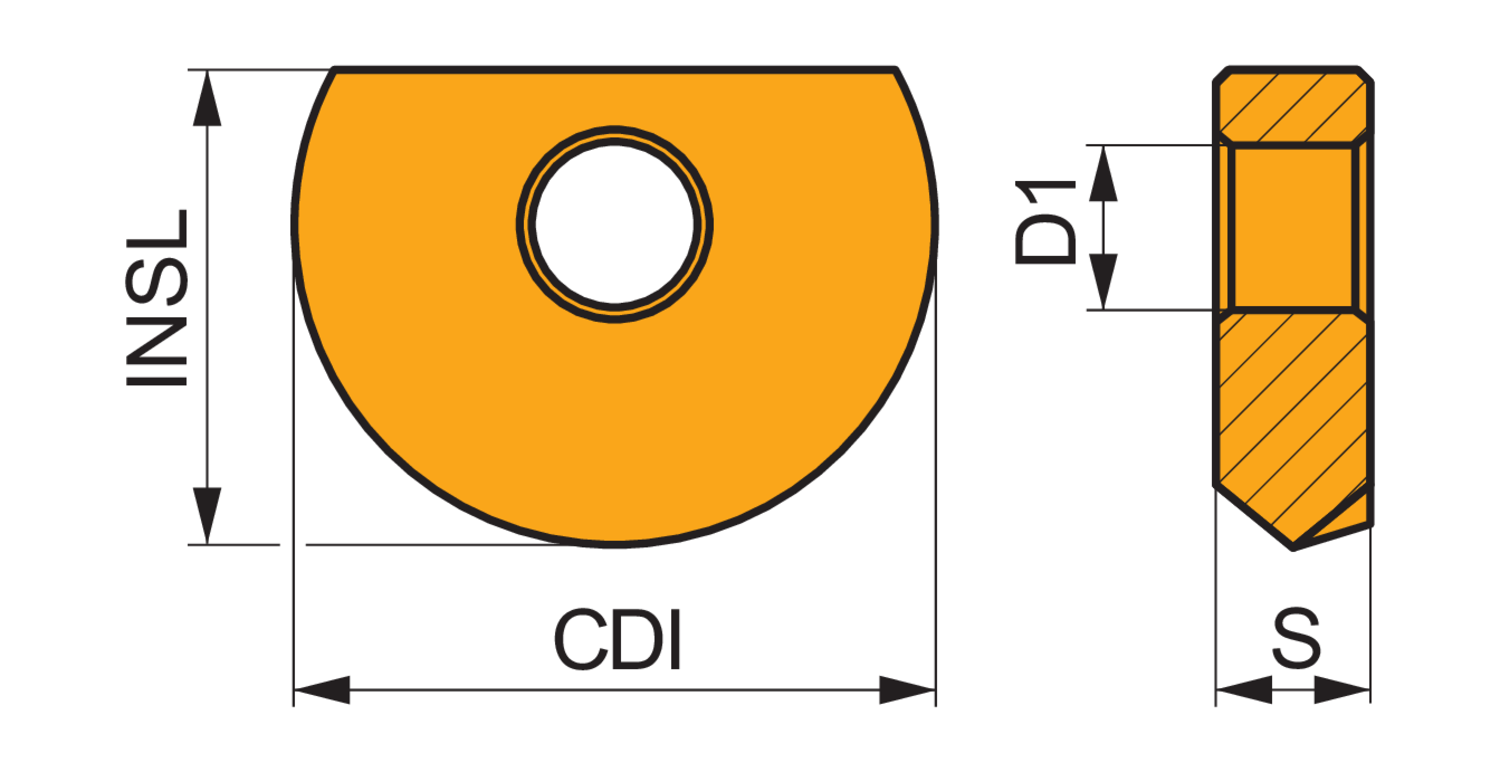

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.6 |
| Fixing Hole Diameter (Mm.) | 4 |
| Insert Length (Mm.) | 12 |
| Insert Thickness (Mm.) | 4 |
| Max Depth of Cut (In.) | 0.063 |
| Coating | 8215 |
