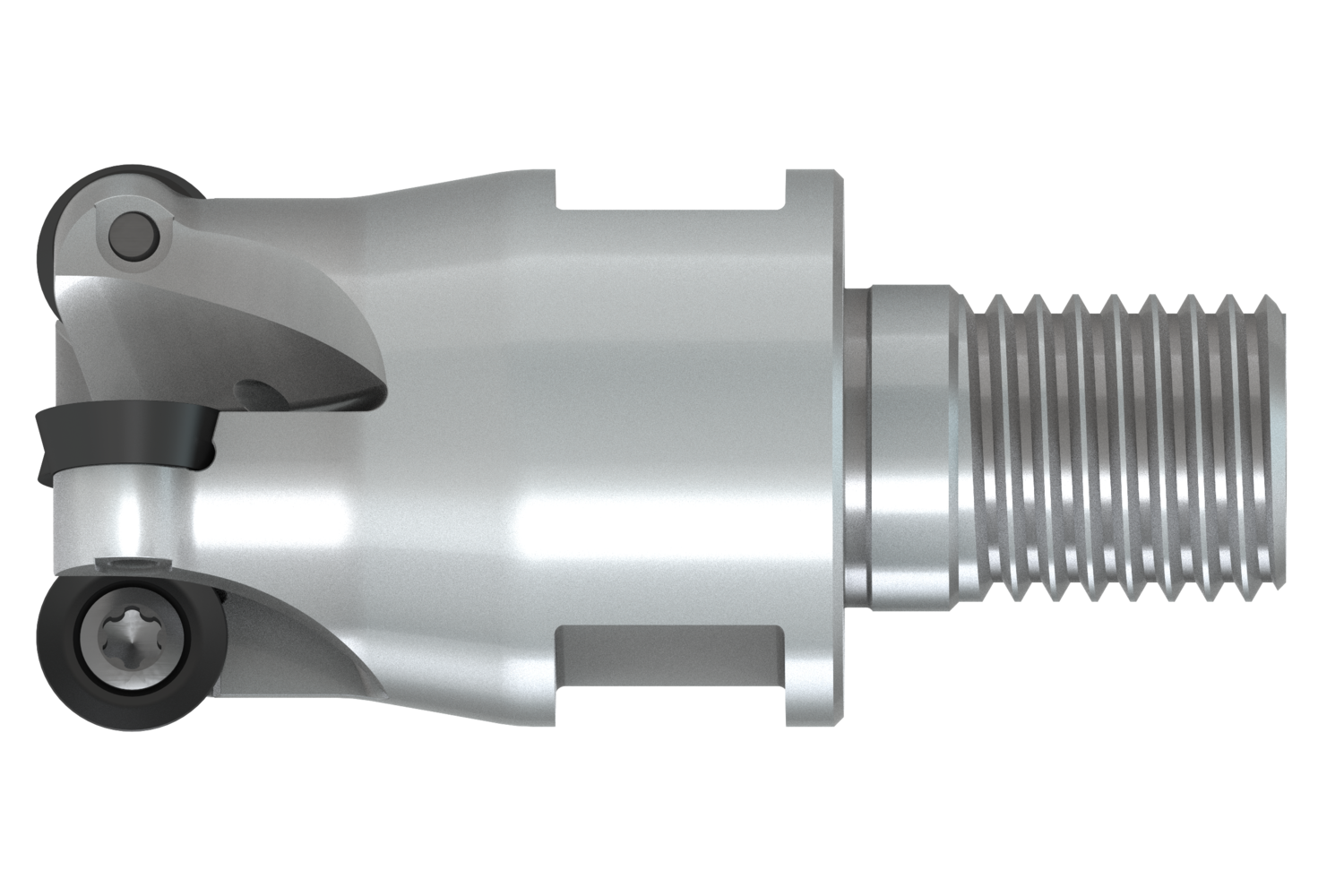

Copy face mill with double negative geometry which utilises 4 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 1.250" with M16 threaded shank for standard modular tool-holders, 1.575" functional and 2.480" protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.098"
- Product Name ISO: 125E4R157M16-ISRD10-CF
- Ordering Code ANSI: 125E4R157M16-ISRD10-CF
- EDP Number: 7999210

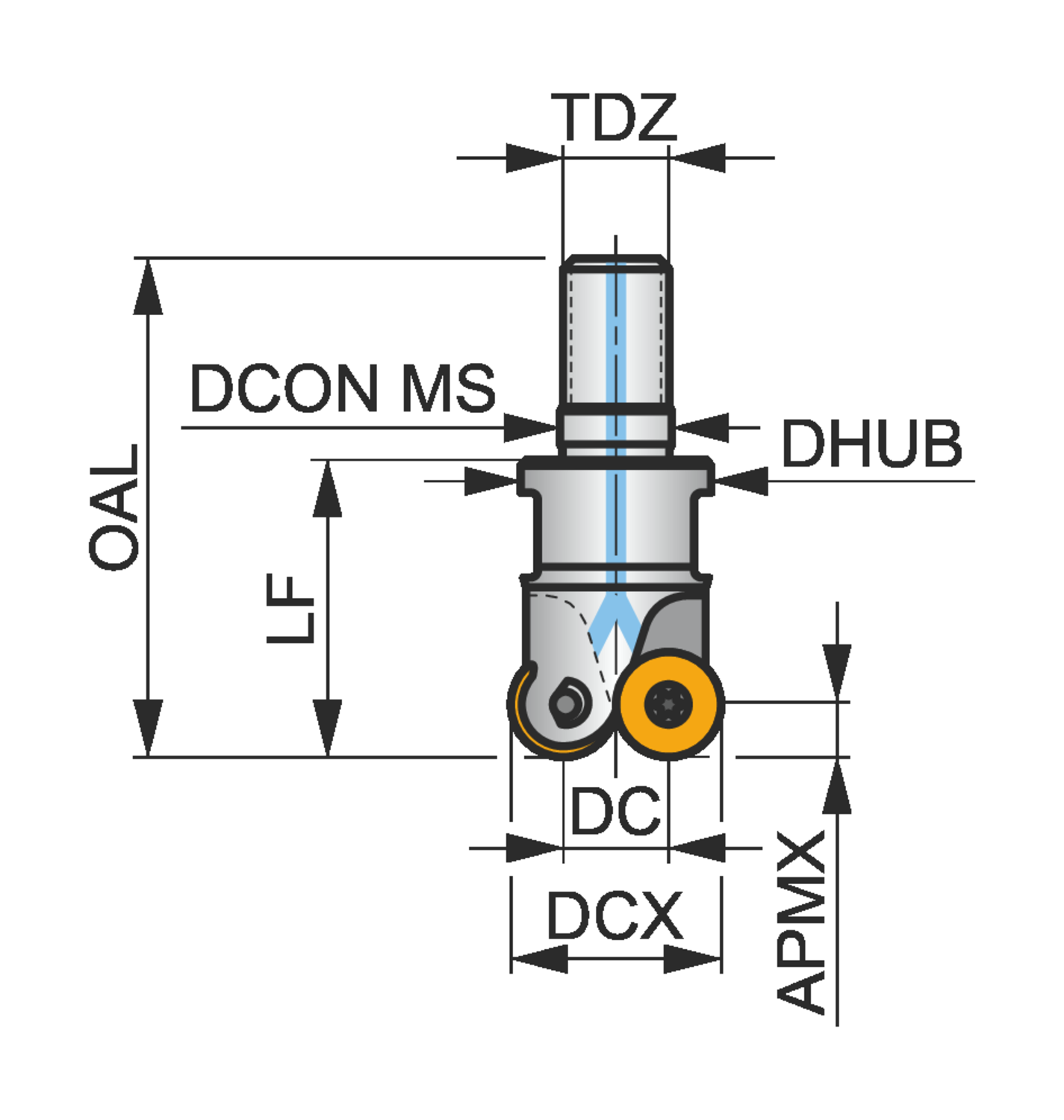

| Product Measurement Standard | Inch |
| Cutting Diameter (In.) | 0.857 |
| Connection Diameter (Mm.) | 17 |
| Overall Length (Mm.) | 63 |
| Max Depth of Cut (In.) | 0.098 |
| Connection Diameter (In.) | 0.669 |
| Overall Length (In.) | 2.48 |
| Shank | Threaded Coupling |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
| Thread Diameter Size | M16 |
