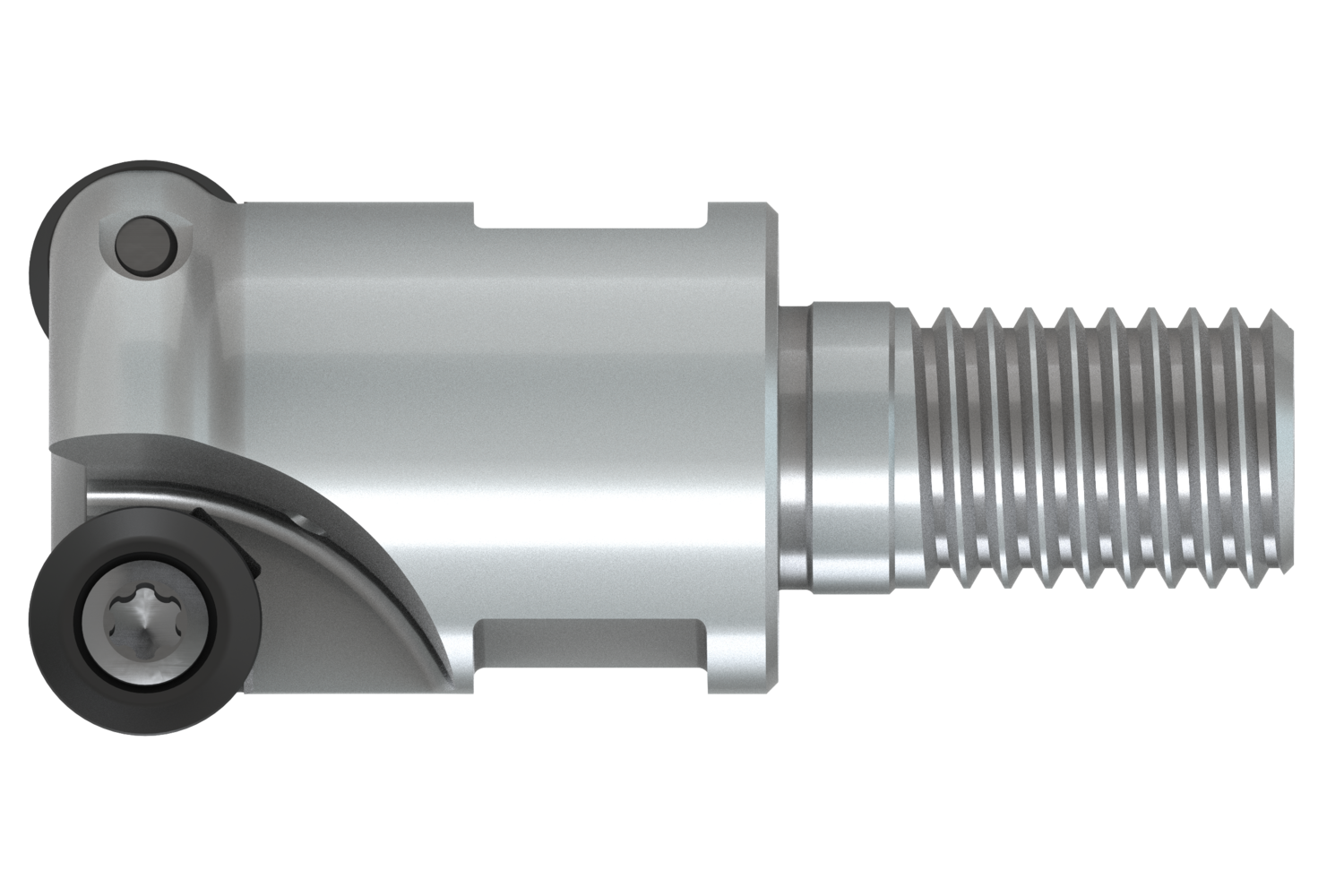

Copy face mill with double positive geometry which utilises 2 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 1.000" with M12 threaded shank for standard modular tool-holders, 1.300" functional and 2.165" protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.098"
- Product Name ISO: 100E2R130M12-ISRD10-CF
- Ordering Code ANSI: 100E2R130M12-ISRD10-CF
- EDP Number: 7999188

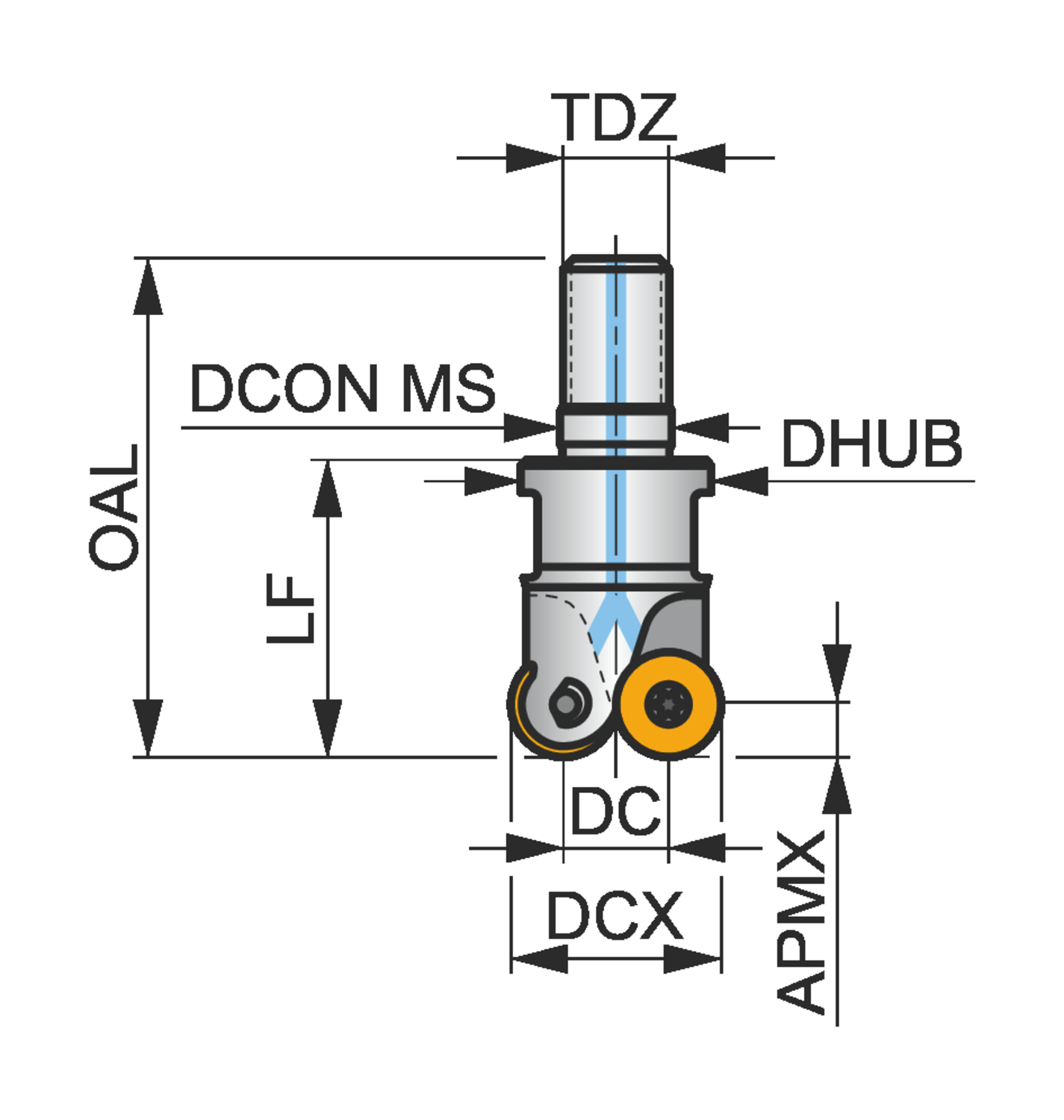

| Product Measurement Standard | Inch |
| Cutting Diameter (In.) | 0.607 |
| Connection Diameter (Mm.) | 12.5 |
| Overall Length (Mm.) | 55 |
| Max Depth of Cut (In.) | 0.098 |
| Connection Diameter (In.) | 0.492 |
| Overall Length (In.) | 2.165 |
| Shank | Threaded Coupling |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
| Thread Diameter Size | M12 |
