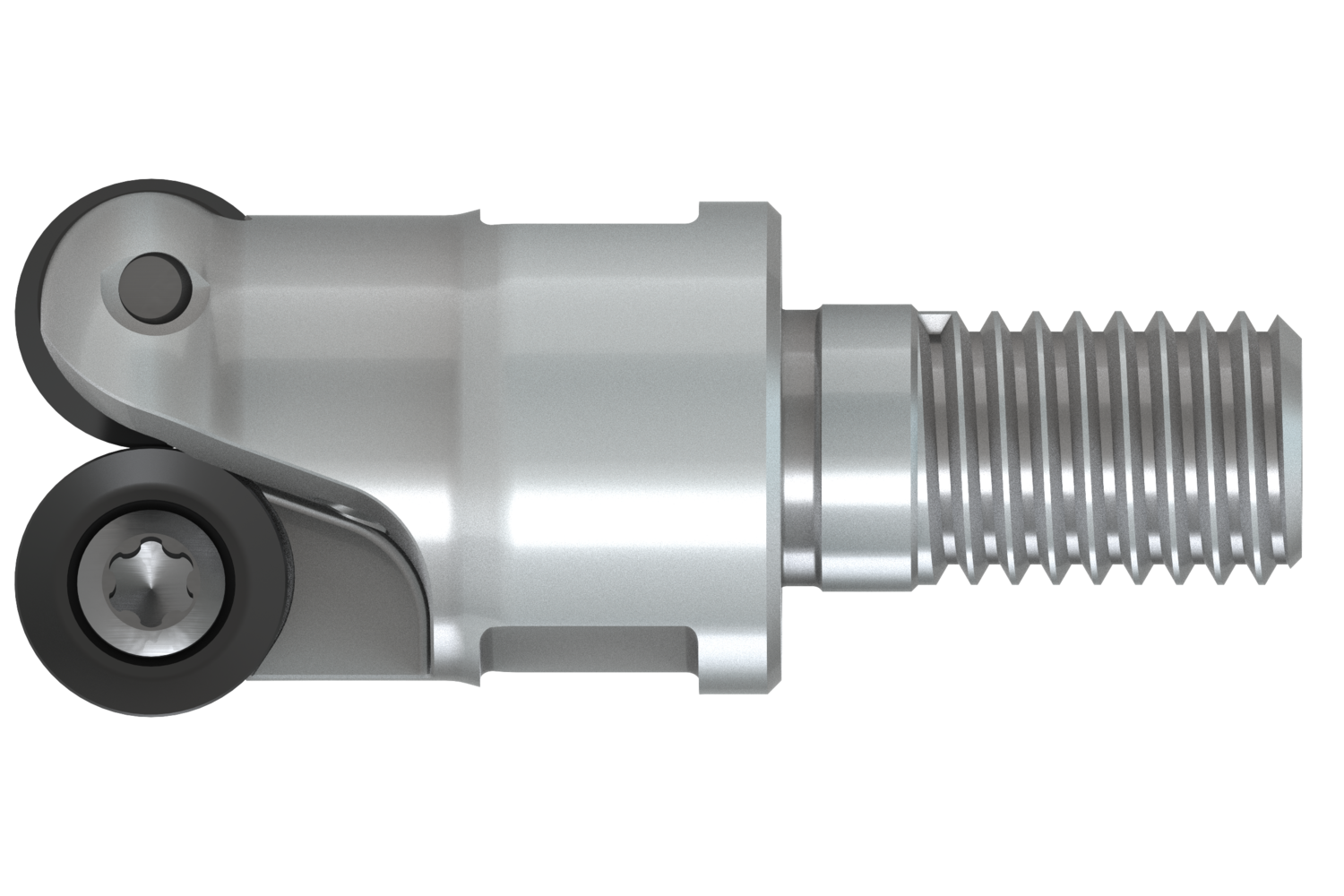

Copy face mill with positve/negative geometry which utilises 2 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 0.750" with M10 threaded shank for standard modular tool-holders, 1.102" functional and 1.850" protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.098"
- Product Name ISO: 075E2R110M10-ISRD10-CF
- Ordering Code ANSI: 075E2R110M10-ISRD10-CF
- EDP Number: 7999187

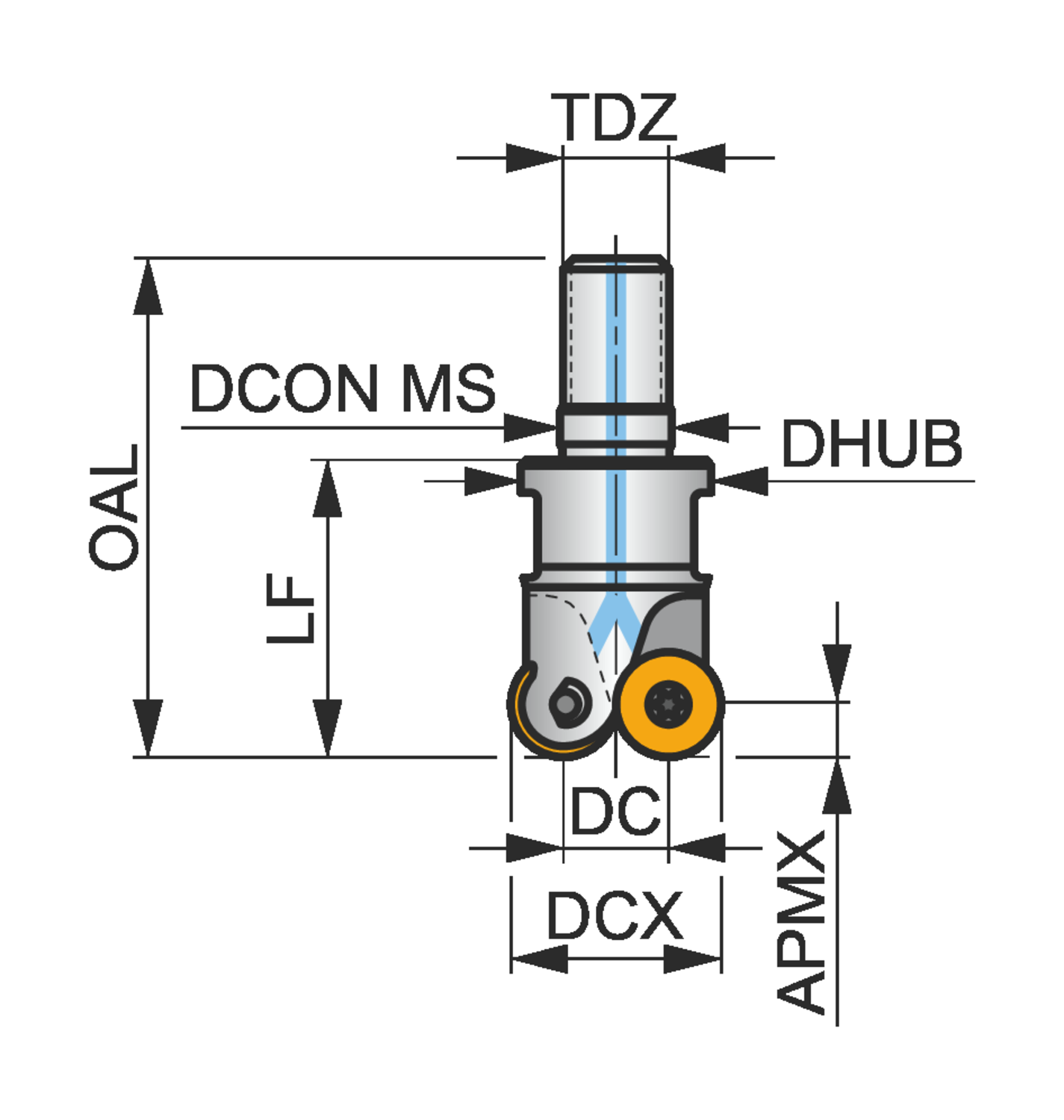

| Product Measurement Standard | Inch |
| Cutting Diameter (In.) | 0.357 |
| Connection Diameter (Mm.) | 10.5 |
| Overall Length (Mm.) | 47 |
| Max Depth of Cut (In.) | 0.098 |
| Connection Diameter (In.) | 0.413 |
| Overall Length (In.) | 1.85 |
| Shank | Threaded Coupling |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
| Thread Diameter Size | M10 |
