Cylinder burr with ball nose (C shape), diameter 1/2" with 1" length of cut, 2.3/4" overall length and 1/4" shank, carbide tipped with toughened and hardened steel shank and bright finish, DC double cut flute style with close spaced edges for machining contours and circular arcs in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials
- Product Name ISO: SC-50DC
- Ordering Code ANSI: SC-50DC
- EDP Number: 7466257
- Coating: Bright
- Material Code (BMC): HM
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

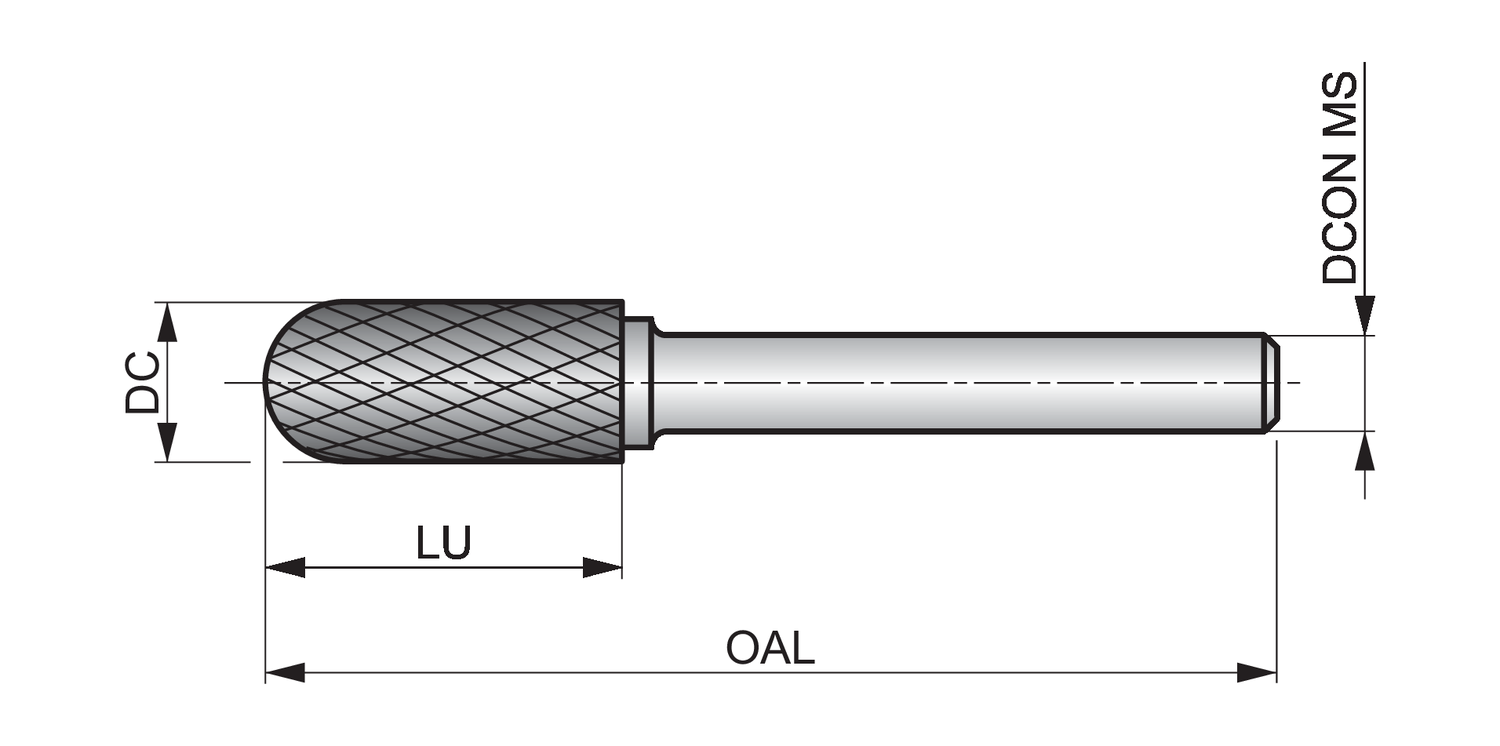

| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 12.7 |
| Cutting Diameter (In.) | 0.5 |
| Cutting Diameter Fractional (In.) | 1/2 |
| Connection Diameter (Mm.) | 6.35 |
| Overall Length (Mm.) | 69.85 |
| Connection Diameter (In.) | 0.25 |
| Overall Length (In.) | 2.75 |
| Material Code | HM |
| Coating | Bright |
| Shank | Cylindrical Shank |
| Burr Shape | C - Ball Nosed Cylinder Shape |
| Burr Type | Double Cut Geometry |
