Cylinder burr without end cut (A shape), diameter 1/2" with 1" length of cut, 2.3/4" overall length and 1/4" shank, carbide tipped with toughened and hardened steel shank and bright finish, FM single cut flute style with wide speced edges for machining surfaces in wrought, cast aluminium and glass fibre reinforced polymers
- Product Name ISO: SA-50FM
- Ordering Code ANSI: SA-50FM
- EDP Number: 7466224
- Coating: Bright
- Material Code (BMC): HM
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)

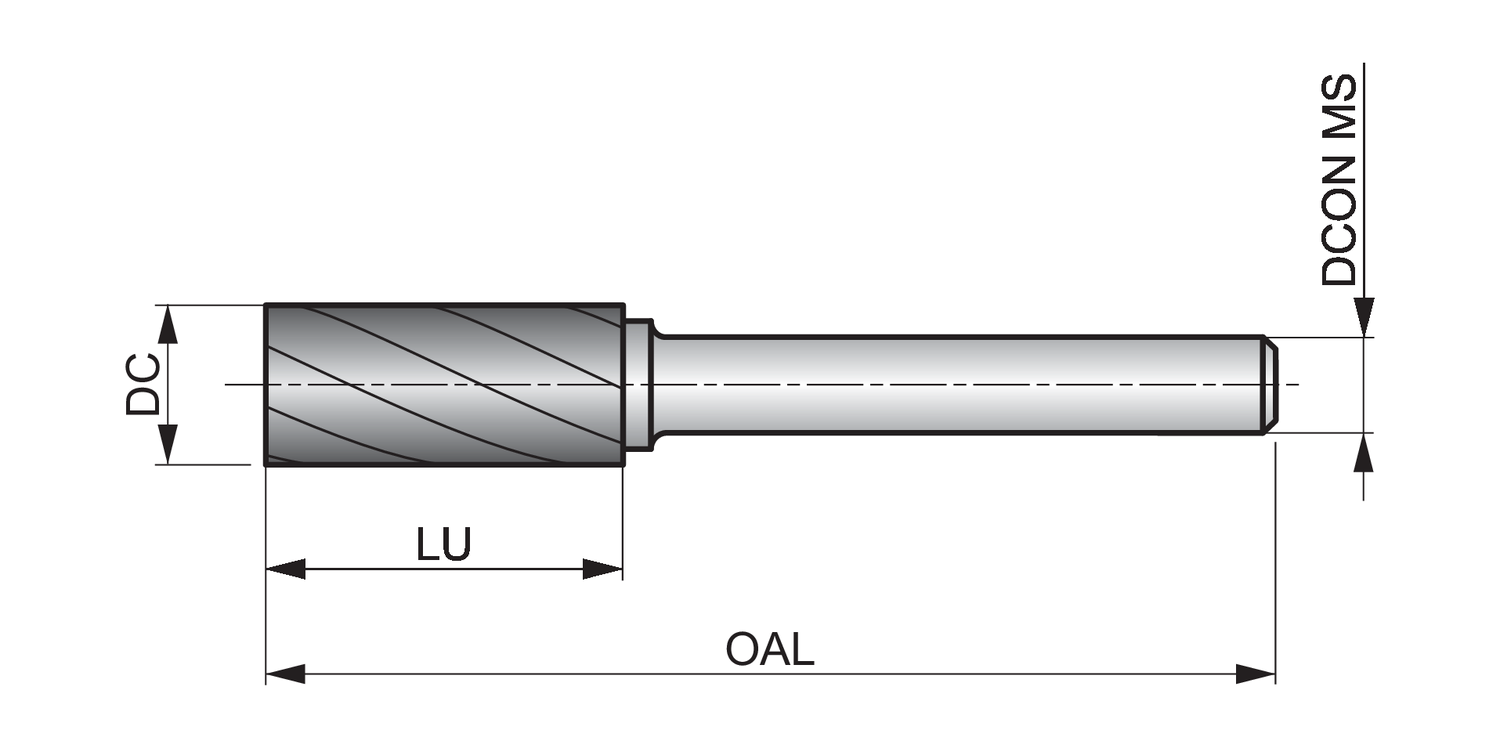

| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 12.7 |
| Cutting Diameter (In.) | 0.5 |
| Cutting Diameter Fractional (In.) | 1/2 |
| Connection Diameter (Mm.) | 6.35 |
| Overall Length (Mm.) | 69.85 |
| Connection Diameter (In.) | 0.25 |
| Overall Length (In.) | 2.75 |
| Material Code | HM |
| Coating | Bright |
| Shank | Cylindrical Shank |
| Burr Shape | A - Cylinder Shape without Endcut |
| Burr Type | Aluminium Cut Geometry |
