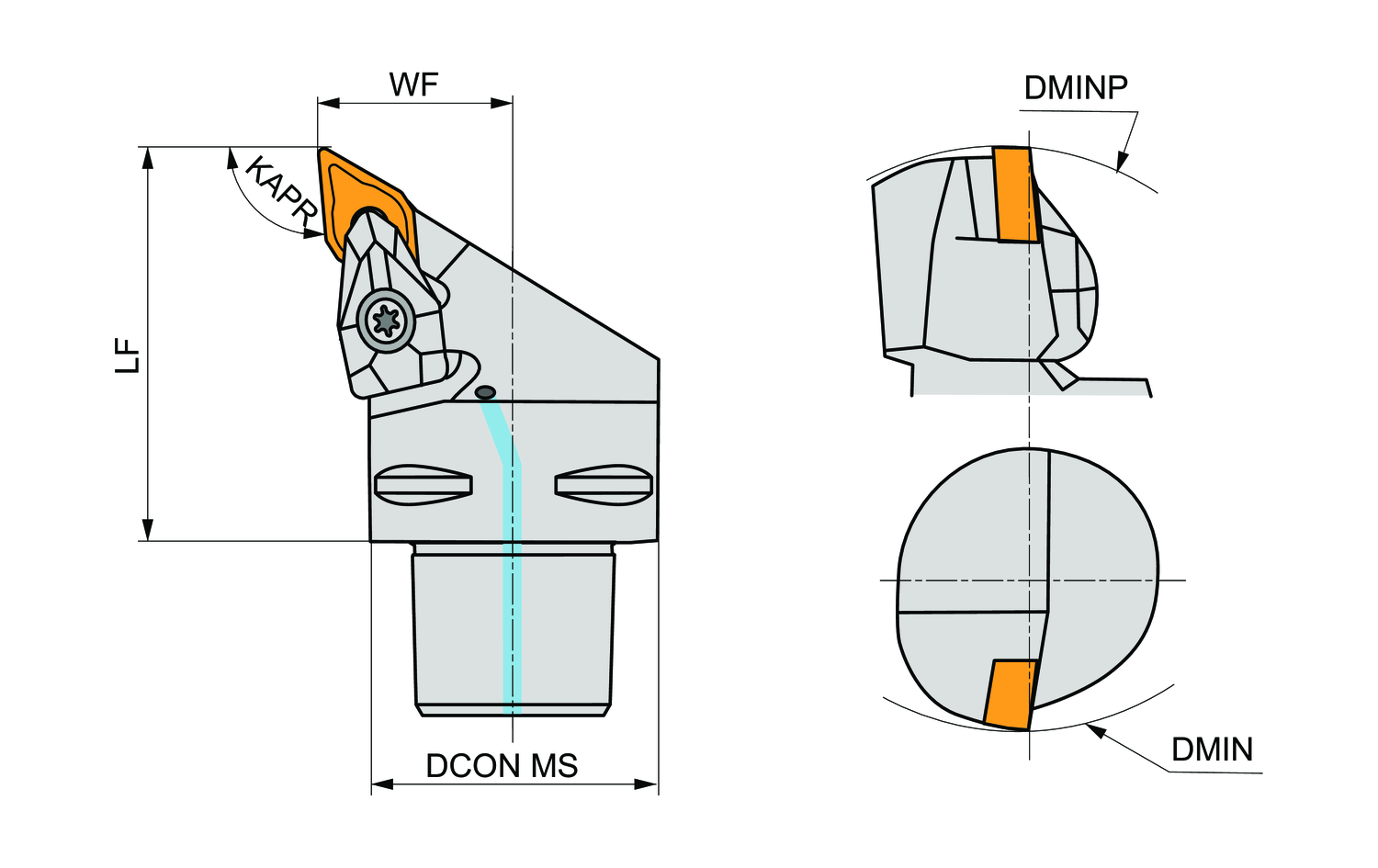

Double clamp turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7mm, 6.35mm thick (ISO designation DN.. 1506.. ), left hand 93° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 35mm funtional width and 60mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
- Product Name ISO: C5-DDJNL-35060-15
- Ordering Code ANSI: C5-DDJNL-35060-15
- EDP Number: 7809784
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Product Measurement Standard | Metric |
Connection Diameter (Mm.) | 50 |
Connection Diameter (In.) | 1.969 |
Direction of Tool | Left |
Clamping Type | System D |
Cooling | 1 |
