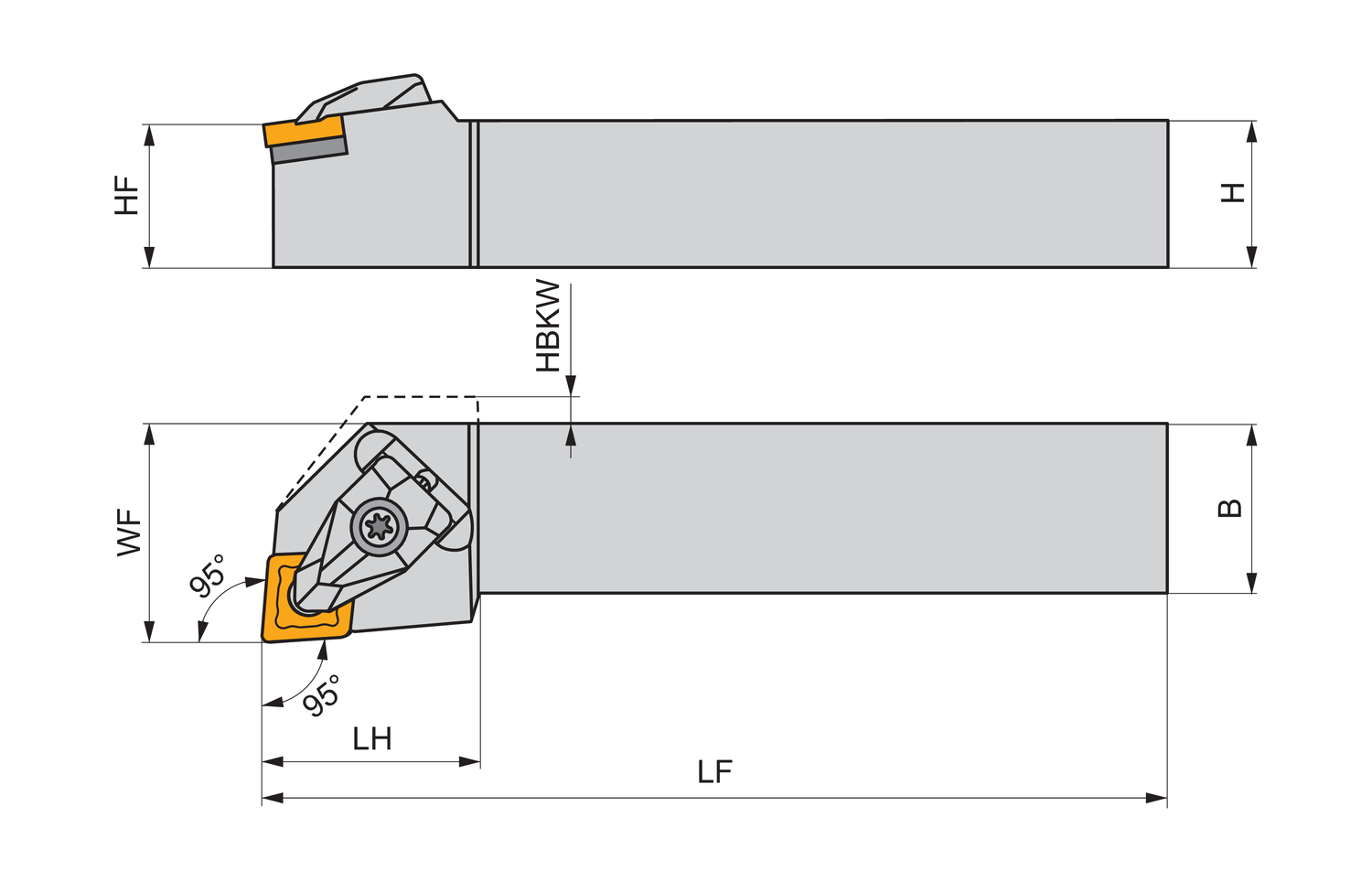

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 3/4'', 1/4'' thick (ANSI designation CN.. 64. ), left hand 95° side and end cutting with off-set shank, 1.1/4'' tool height x 1.1/4'' width x 6'' long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
- Product Name ISO: DCLNL 20 6D
- Ordering Code ANSI: DCLNL 20 6D
- EDP Number: 6788552
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
Product Measurement Standard | Inch |
Clamping Type | System D |
