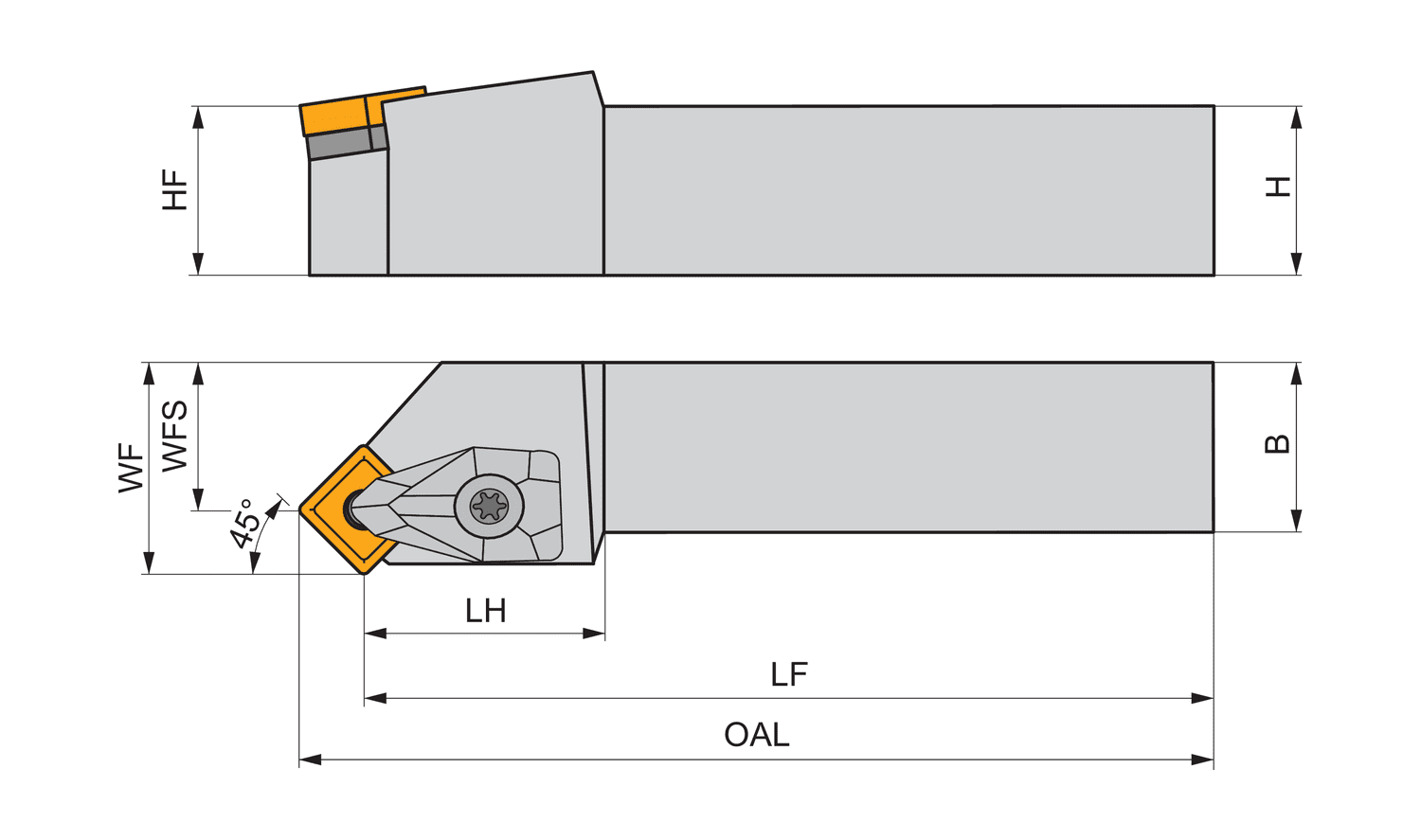

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation SN.. 43. ), right hand 45° side cutting with off-set shank, 1'' tool height x 1'' width x 6'' long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder

• Product Name ISO: DSSNR 16 4D
• Ordering Code ANSI: DSSNR 16 4D
• EDP Number: 6788605
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
