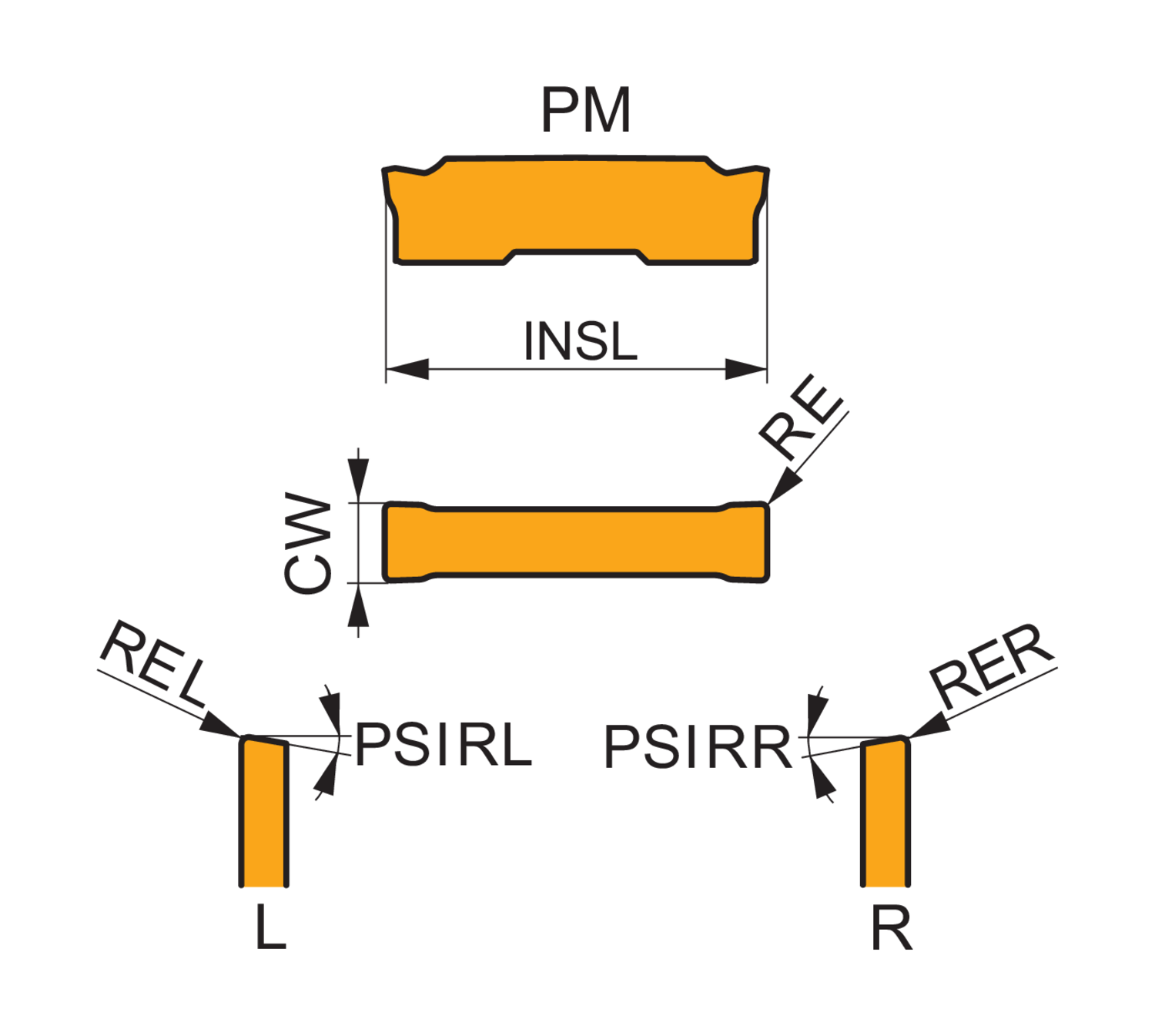

Double ended parting and grooving insert, 0.65 inch long with a 0.059 inch cutting width and 0.006 inch corner radii. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25 -P40 and M20 -M35 for machining of steel and stainless-steel. PM geometry with highly positive rake, first choice for parting-off, and continuous to slightly interrupted cuts.
- Product Name ISO: GL1-D150G015L06-PM:G8330
- Ordering Code ANSI: GL1-D150G015L06-PM:G8330
- EDP Number: 8463343
- Coating: G8330
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.15 |
| Insert Length (Mm.) | 16.5 |
| Cutting Width Upper Tolerance (Mm.) | 0.04 |
| Cutting Width Lower (Mm.) | -0.04 |
| Coating | G8330 |
