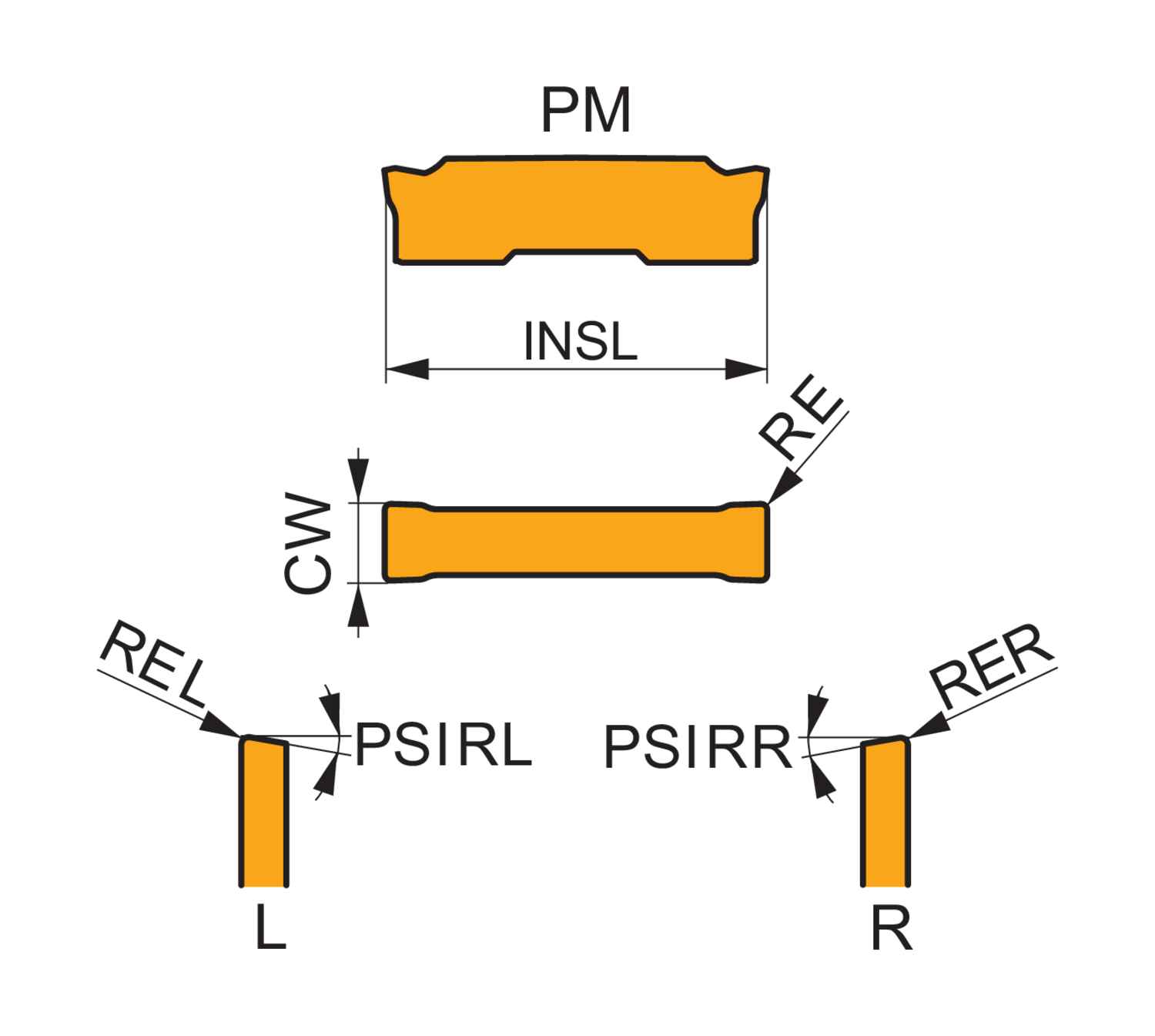

Double ended parting and grooving insert, 0.984 inch long with a 0.079 inch cutting width and 0.008 inch corner radii, 6°. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25 -P40 and M20 -M35 for machining of steel and stainless-steel. PM geometry with highly positive rake, first choice for parting-off, and continuous to slightly interrupted cuts.

• Product Name ISO: GL2-D200G02R06-PM:G8330
• Ordering Code ANSI: GL2-D200G02R06-PM:G8330
• EDP Number: 7802887
• Coating: G8330
• Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
