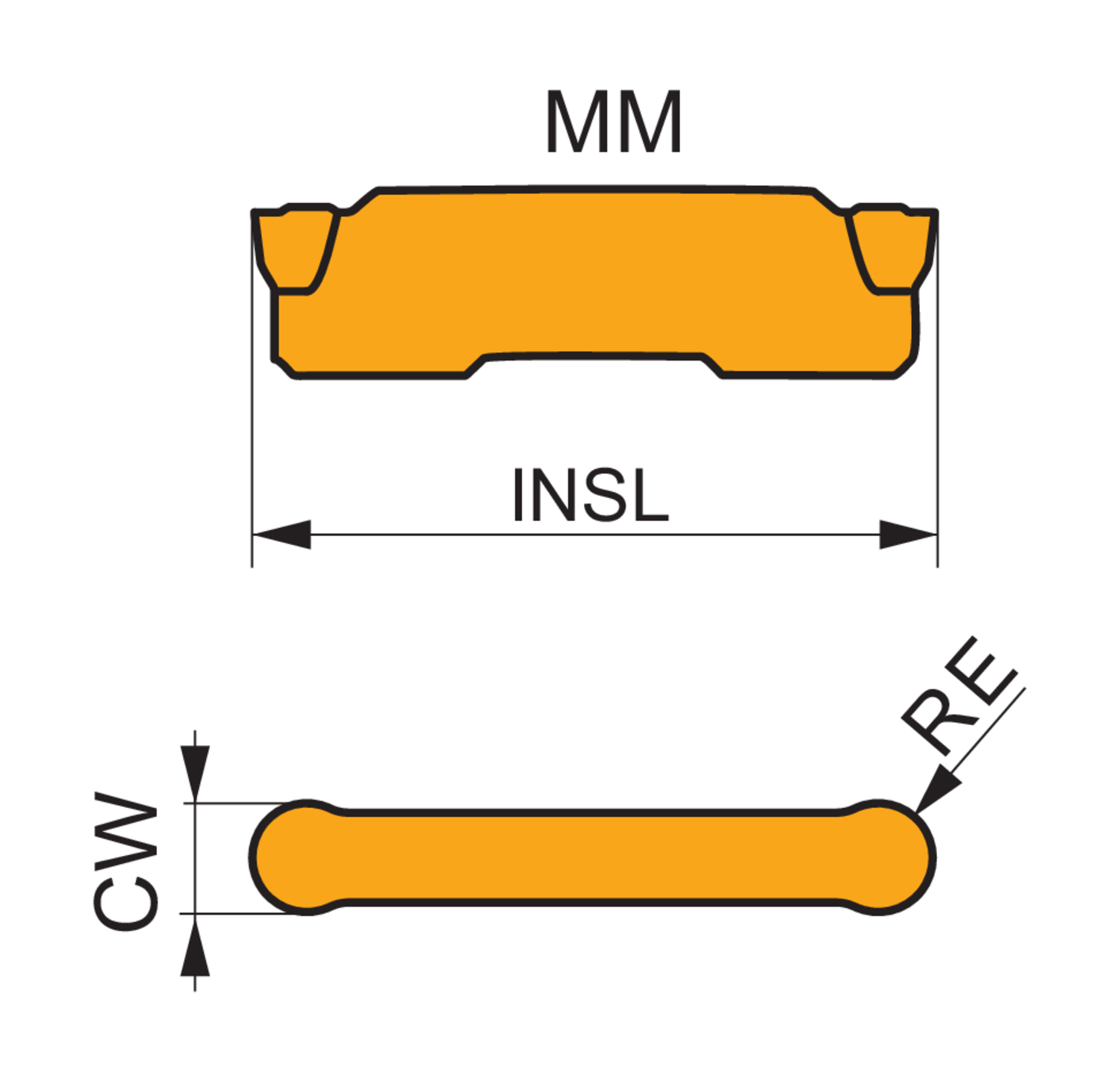

Double ended parting and grooving insert, 0.984 inch long with a 0.079 inch cutting width and 0.039 inch full radius. Grade T7325 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges M10 -M25 and K15 -K25 for machining of stainless-steel and cast-iron. MM geometry, with full radius shape for copy profiling and longitudinal turning, and continuous to interrupted cuts.
- Product Name ISO: GL2-D200MMO-MM:T7325
- Ordering Code ANSI: GL2-D200MMO-MM:T7325
- EDP Number: 8023061
- Coating: T7325
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 1 |
| Insert Length (Mm.) | 25 |
| Cutting Width Upper Tolerance (Mm.) | 0.05 |
| Cutting Width Lower (Mm.) | -0.05 |
| Coating | T7325 |
