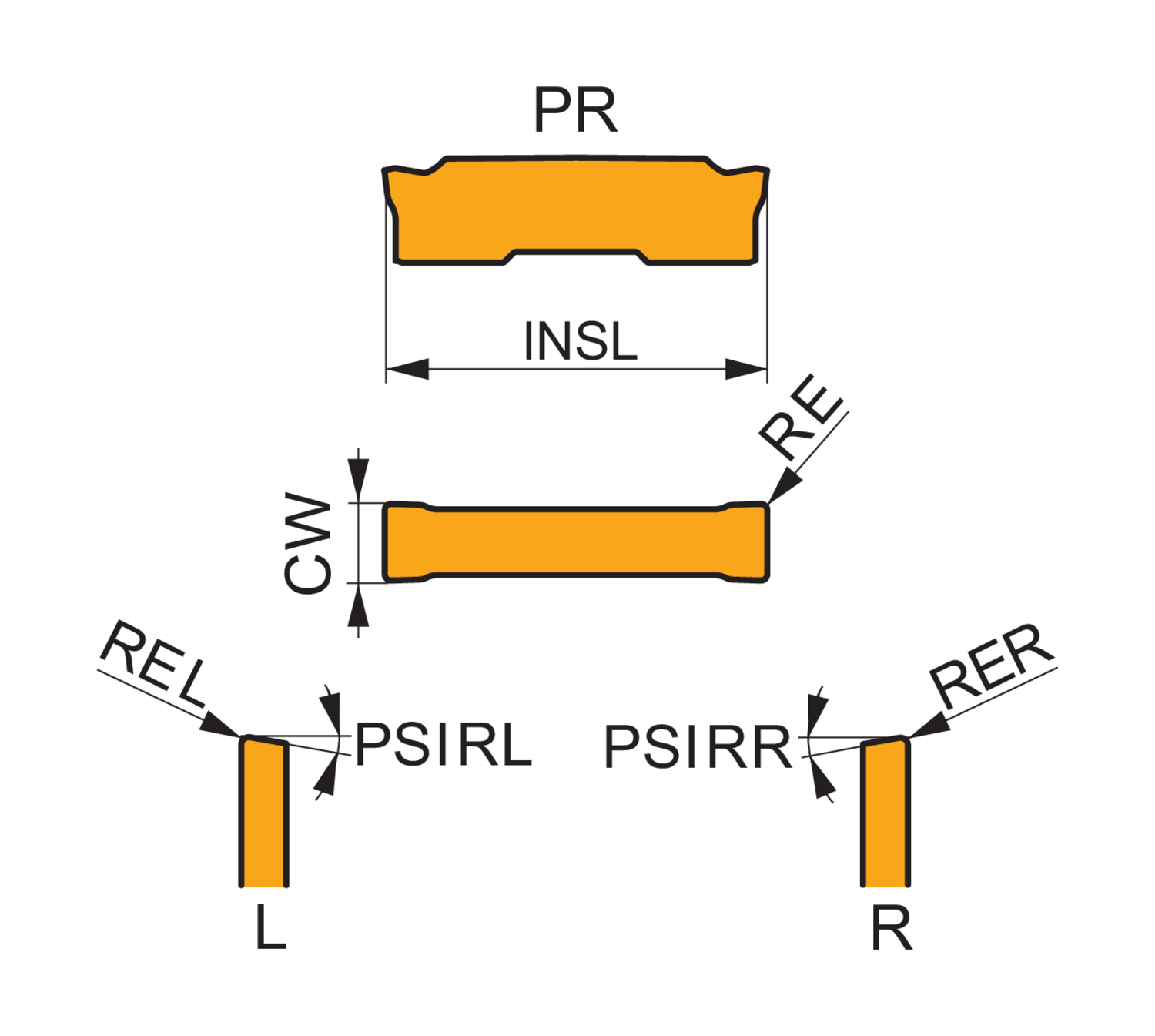

Double ended parting and grooving insert, 0.984 inch long with a 0.118 inch cutting width and 0.008 inch corner radii. Grade T7325 MT-CVD coated functionally graded WC-Co carbide within ISO-grade range K15 -K25 for machining of cast-iron. PR geometry with negative T-land, first choice for difficult grooving and parting-off, and continuous to interrupted cuts.
- Product Name ISO: GL3-D300M02-PR:T7325
- Ordering Code ANSI: GL3-D300M02-PR:T7325
- EDP Number: 7802926
- Coating: T7325
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.2 |
| Insert Length (Mm.) | 25 |
| Cutting Width Upper Tolerance (Mm.) | 0.05 |
| Cutting Width Lower (Mm.) | -0.05 |
| Coating | T7325 |
