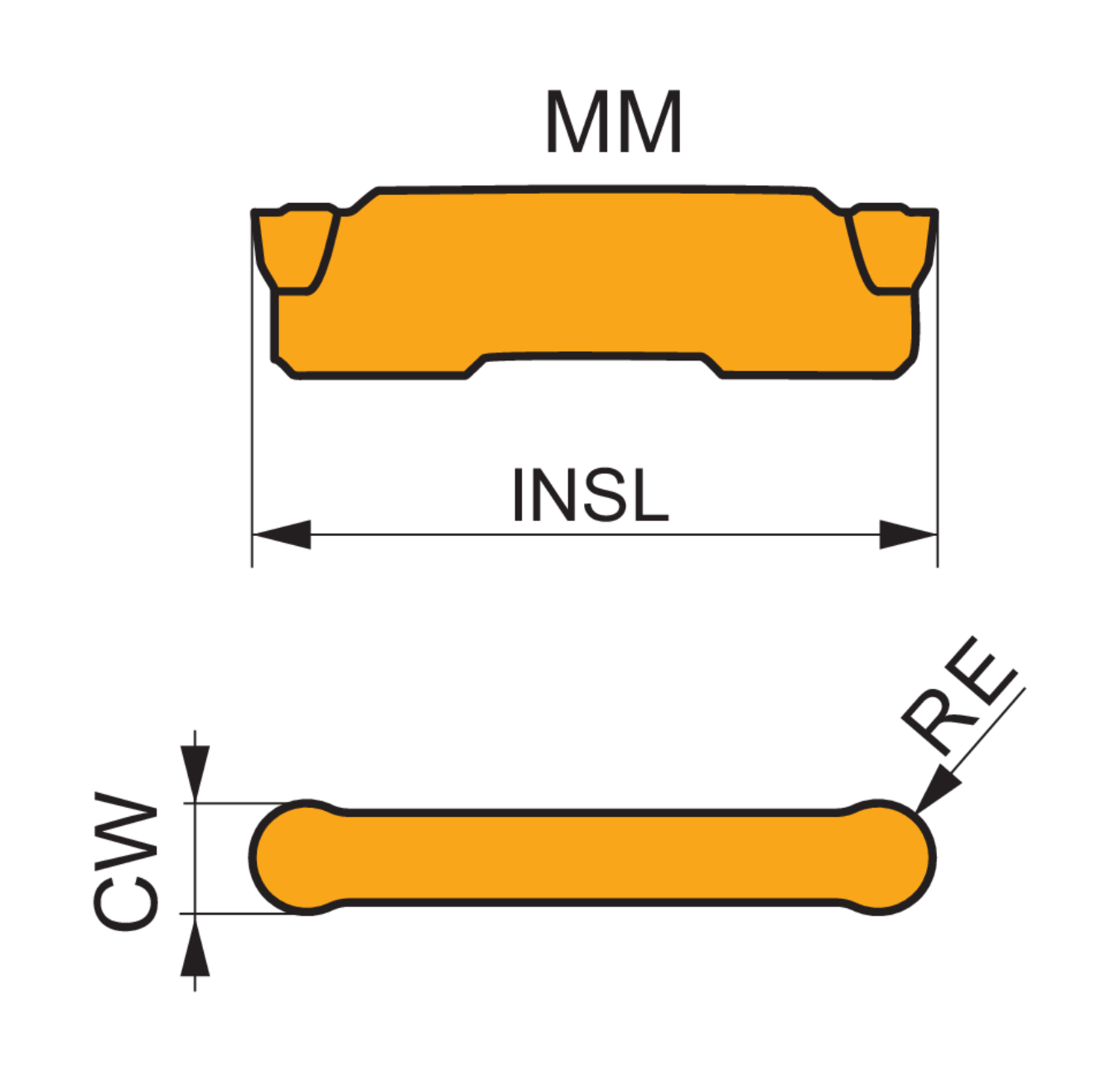

Double ended parting and grooving insert, 1.024 inch long with a 0.236 inch cutting width and 0.118 inch full radius. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25 -P40/M20 -M35 and K20 -K40 for machining of steel, stainless-steel and cast-iron. MM geometry, with full radius shape for copy profiling and longitudinal turning, and continuous to interrupted cuts.
- Product Name ISO: GL6-D600MMO-MM:G8330
- Ordering Code ANSI: GL6-D600MMO-MM:G8330
- EDP Number: 8023036
- Coating: G8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 3 |
| Insert Length (Mm.) | 26 |
| Cutting Width Upper Tolerance (Mm.) | 0.05 |
| Cutting Width Lower (Mm.) | -0.05 |
| Coating | G8330 |
