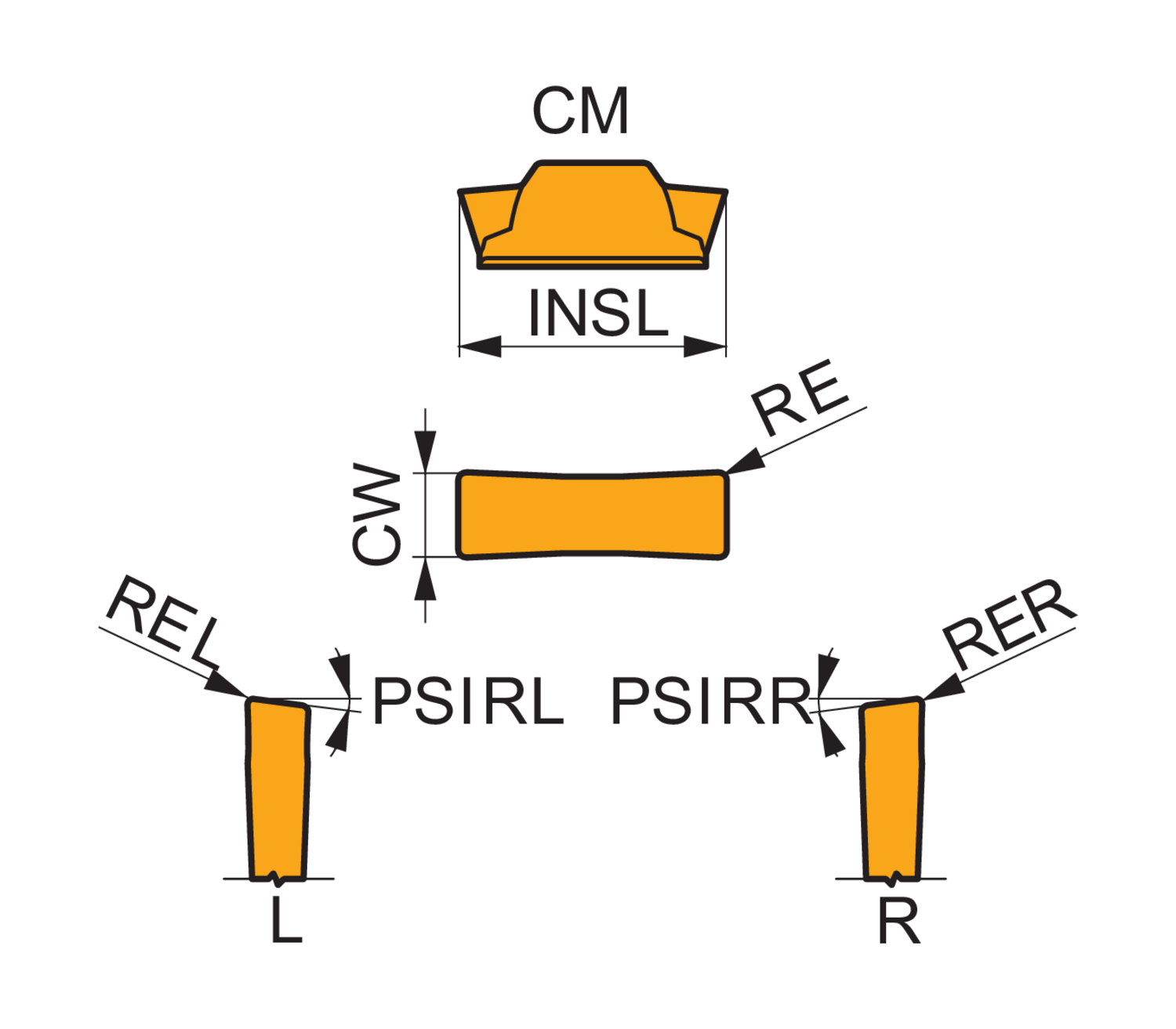

Double ended parting and grooving insert, 16.4mm long with a 4mm cutting width and 0.2mm corner radii, 6° front angle to reduce pip and burr on the right hand side, an accuracy according to tolerance class-M and chip-breaker CM, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with PRAMET GF..(RL) 04, GG..(RL) 04 and XLCCN 0416 parting and grooving tools

• Product Name ISO: LCMF 041602R6-CM:T8330
• Ordering Code ANSI: LCMF 041602R6-CM:T8330
• EDP Number: 6755653
• Coating: T8330
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
