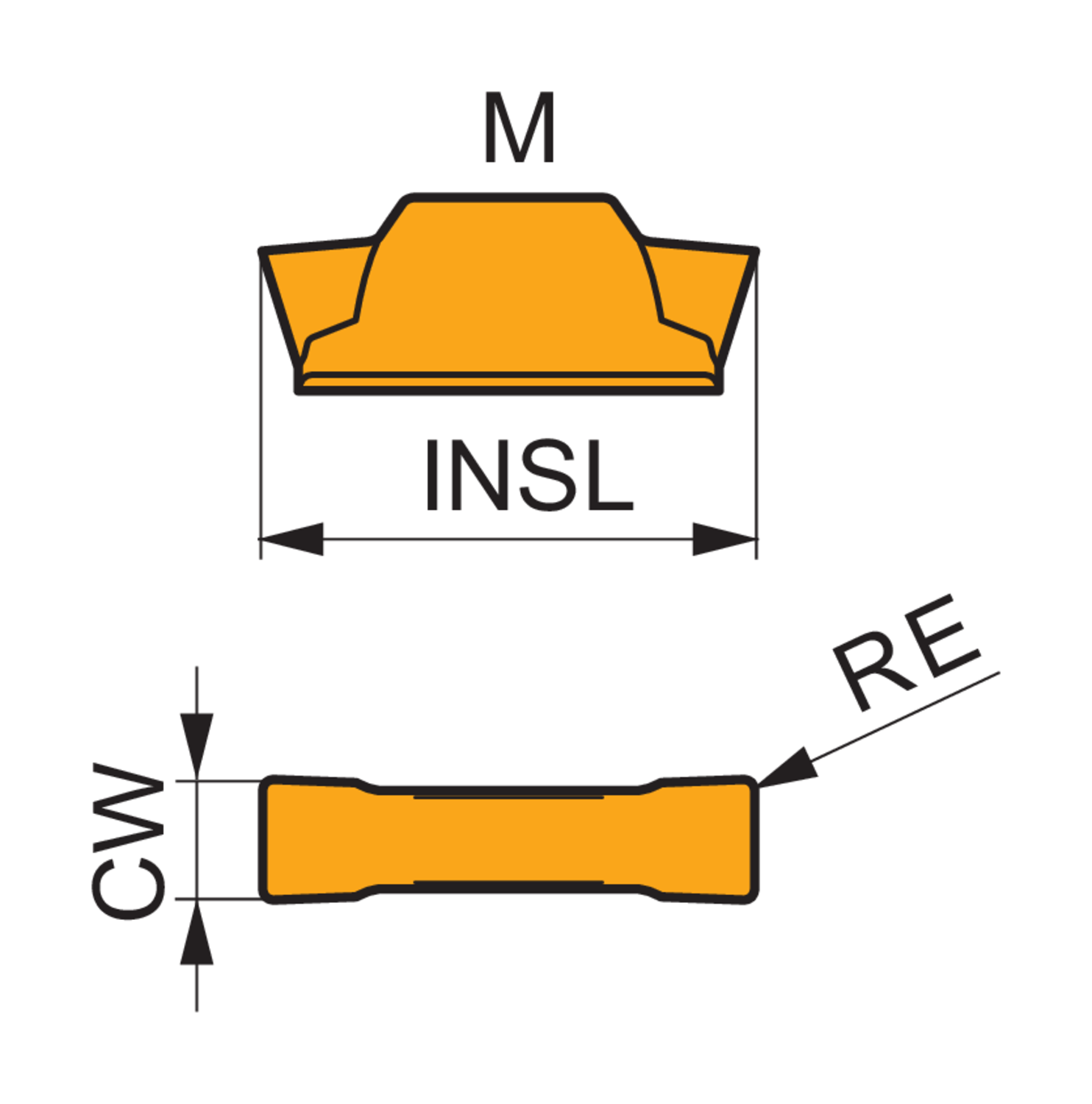

Double ended parting and grooving insert, 16.4mm long with a 4mm cutting width and 0.8mm corner radii, an accuracy according to tolerance class-M and chip-breaker M, grade T9325 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P15-P35 and K15-K35 for machining of steel and cast-iron in combination with PRAMET GF..(RL) 04, GG..(RL) 04 and XLCCN 0416 parting and grooving tools
- Product Name ISO: LCMF 041608-M:T9325
- Ordering Code ANSI: LCMF 041608-M:T9325
- EDP Number: 6754678
- Coating: T9325
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.8 |
| Insert Length (Mm.) | 16.4 |
| Cutting Width Upper Tolerance (Mm.) | 0.05 |
| Cutting Width Lower (Mm.) | -0.05 |
| Coating | T9325 |
