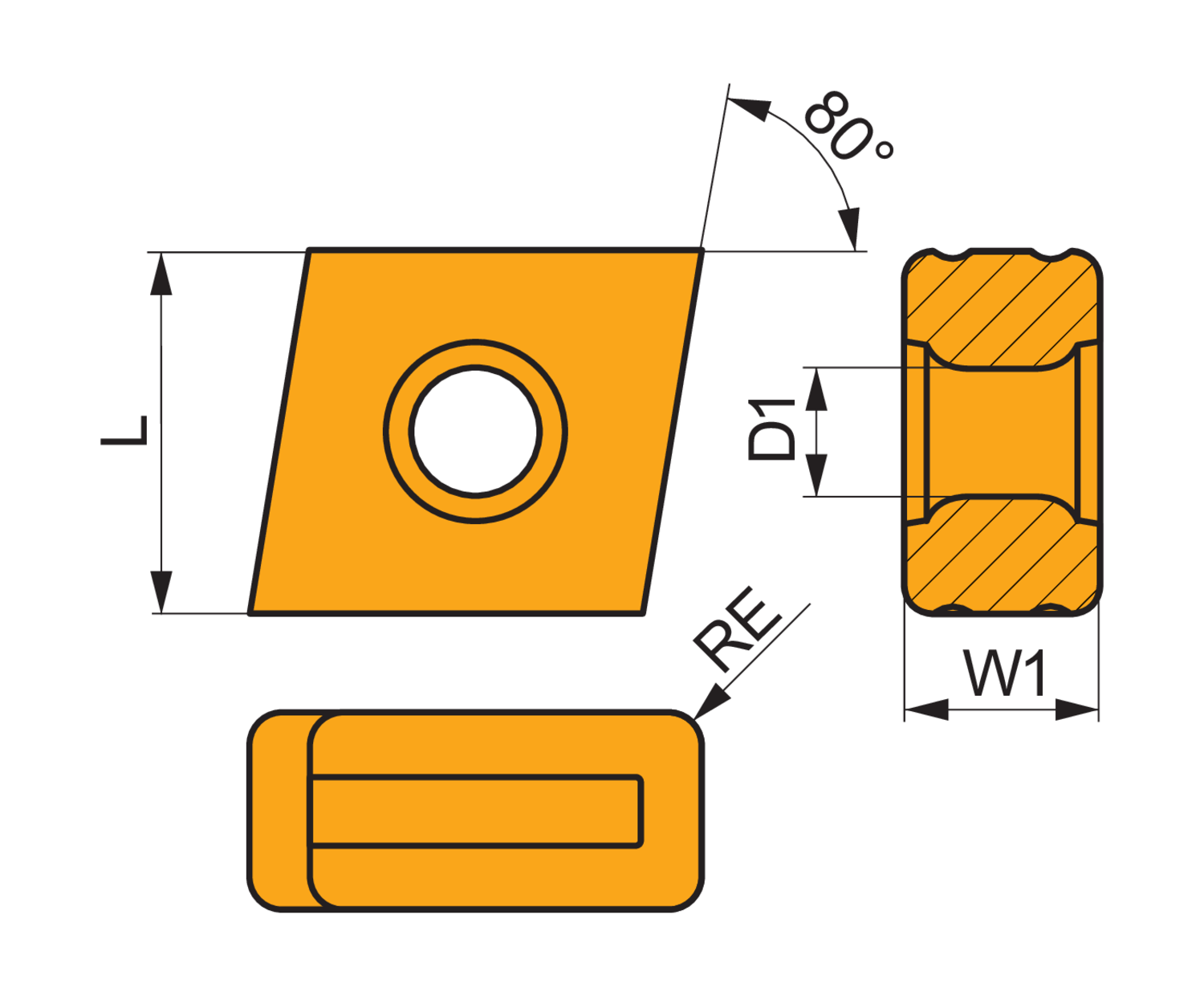

Double-sided milling insert CNM 563, 80° rhomboid for a maximum depth of cut of .5512", with .0472" corner radius, an indexing accuracy according to ISO-tolerance class-M, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel
- Product Name ISO: CNM 563:M8340
- Ordering Code ANSI: CNM 563:M8340
- EDP Number: 6800828
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 14 |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Insert Thickness (Mm.) | 8 |
| Max Depth of Cut (In.) | 0.551 |
| Coating | M8340 |
