Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of .1969", with " corner radius, an indexing accuracy according to ISO-tolerance class-G and R geometry with rounded cutting edges and facet, M9315 MT-CVD coated WC-Co carbide within ISO-grade range P05-P25 for machining of steel with face mills SHN09C
- Product Name ISO: HNGX 0906ANSN-R:M9315
- Ordering Code ANSI: HNGX 0906ANSN-R:M9315
- EDP Number: 6753665
- Coating: M9315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |

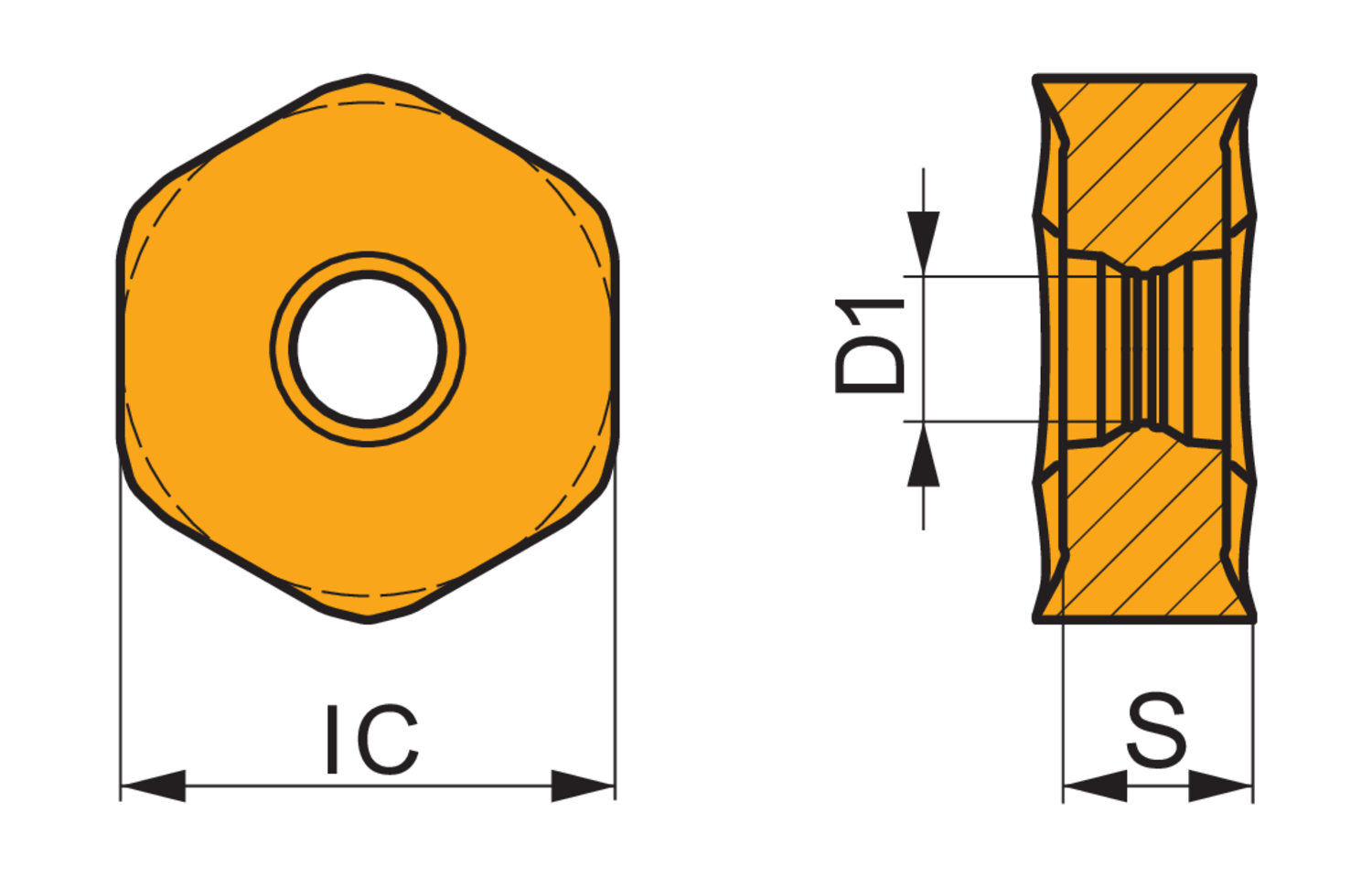

| Fixing Hole Diameter (Mm.) | 4.9 |
| Inscribing Circle Dia. (Mm.) | 16.5 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | M9315 |
