Double-sided milling insert LNEX 1210, rectangular for a maximum depth of cut of 10.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-E and F geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20 -P40 for machining of steel with shoulder mills SLN12X
- Product Name ISO: LNEX 121008SR-F:M8330
- Ordering Code ANSI: LNEX 121008SR-F:M8330
- EDP Number: 8184458
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

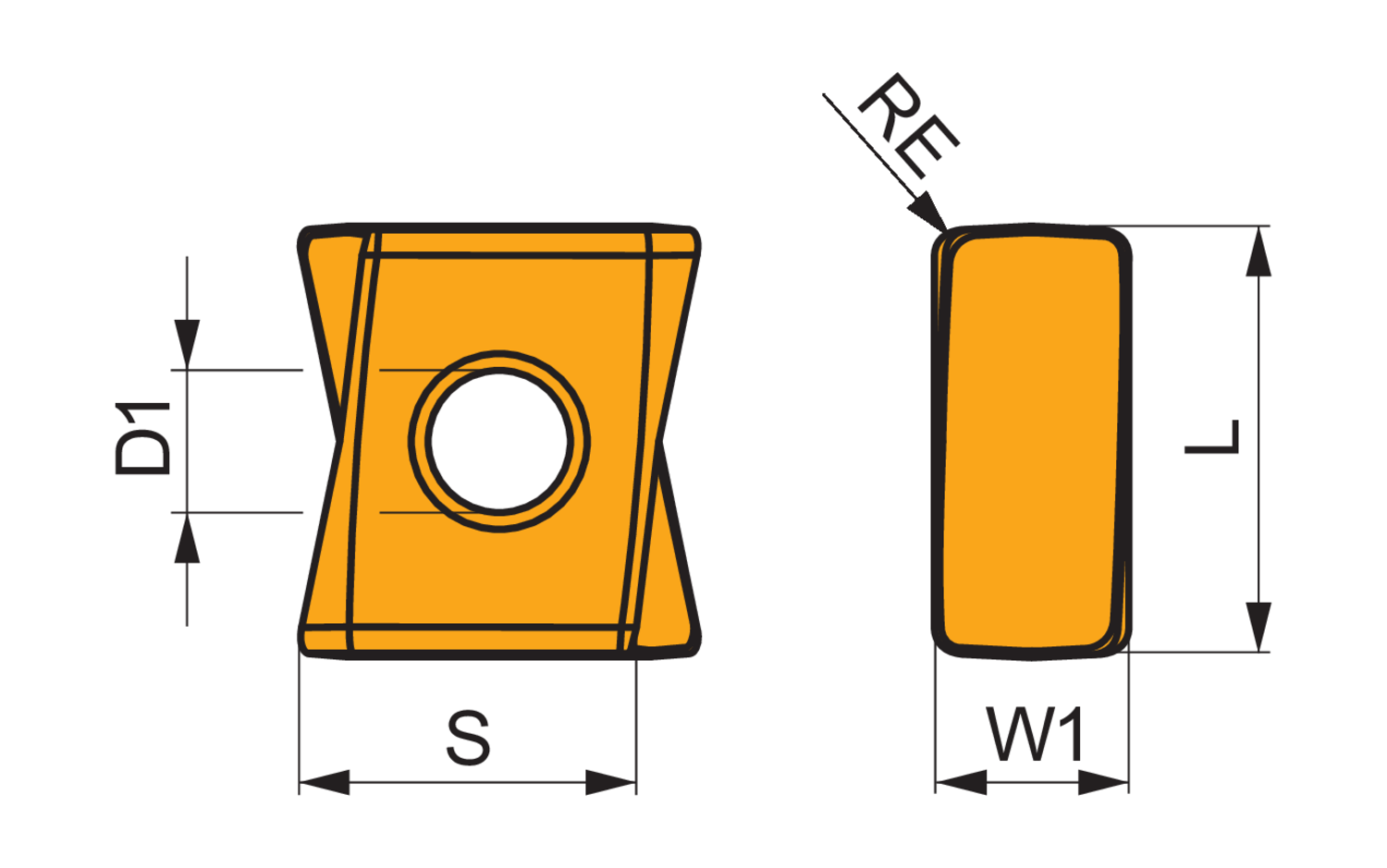

| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Insert Thickness (Mm.) | 10.26 |
| Insert Width (Mm.) | 6 |
