Double-sided milling insert LNGX 1205, rectangular for a maximum depth of cut of .3543", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G and F geometry with rounded cutting edges, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01-P10 for machining of steel with shoulder mills SLN12
- Product Name ISO: LNGX 120508ER-F:M8310
- Ordering Code ANSI: LNGX 120508ER-F:M8310
- EDP Number: 6922540
- Coating: M8310
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

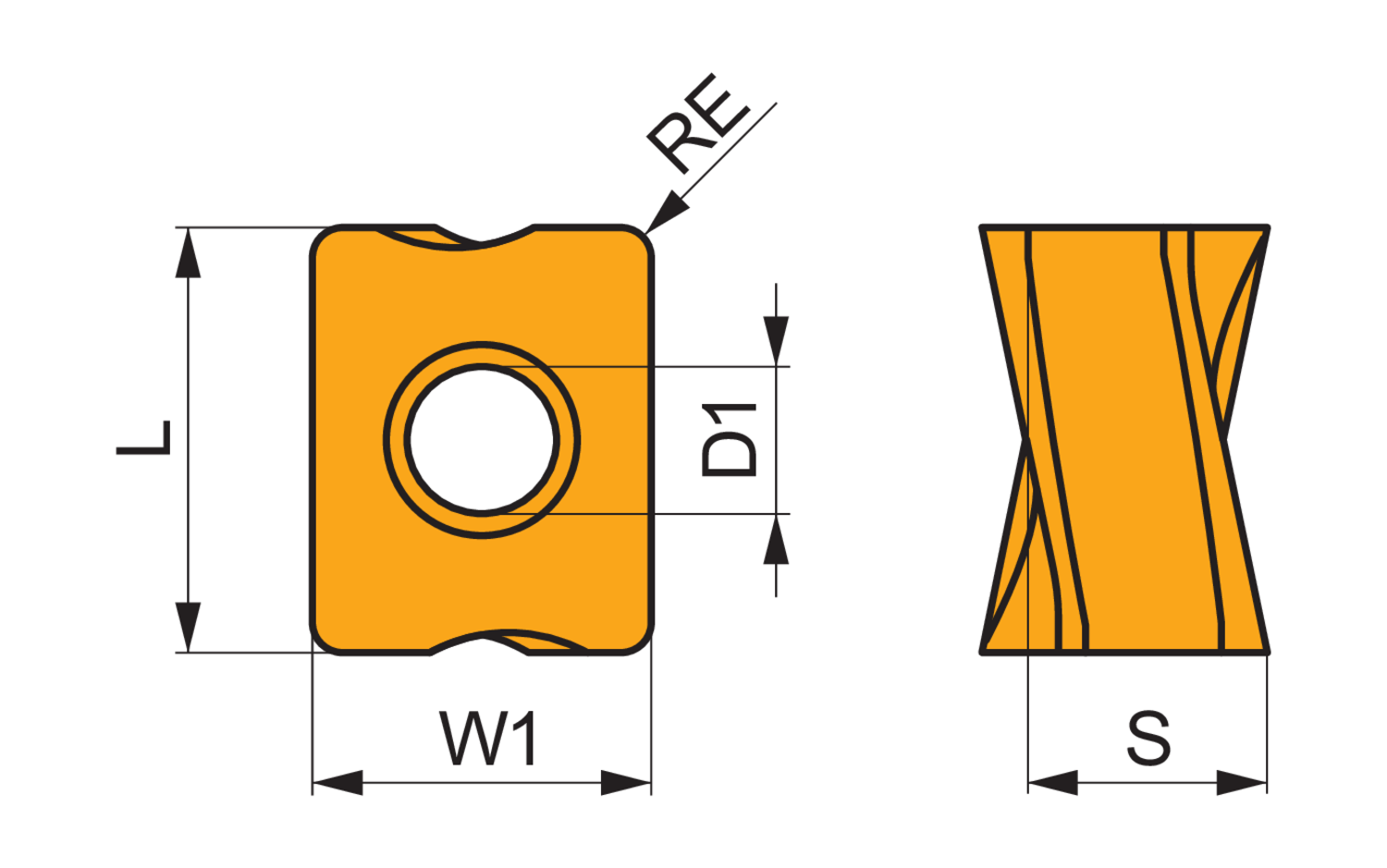

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.5 |
| Insert Thickness (Mm.) | 5.96 |
| Insert Width (Mm.) | 9.5 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | M8310 |
