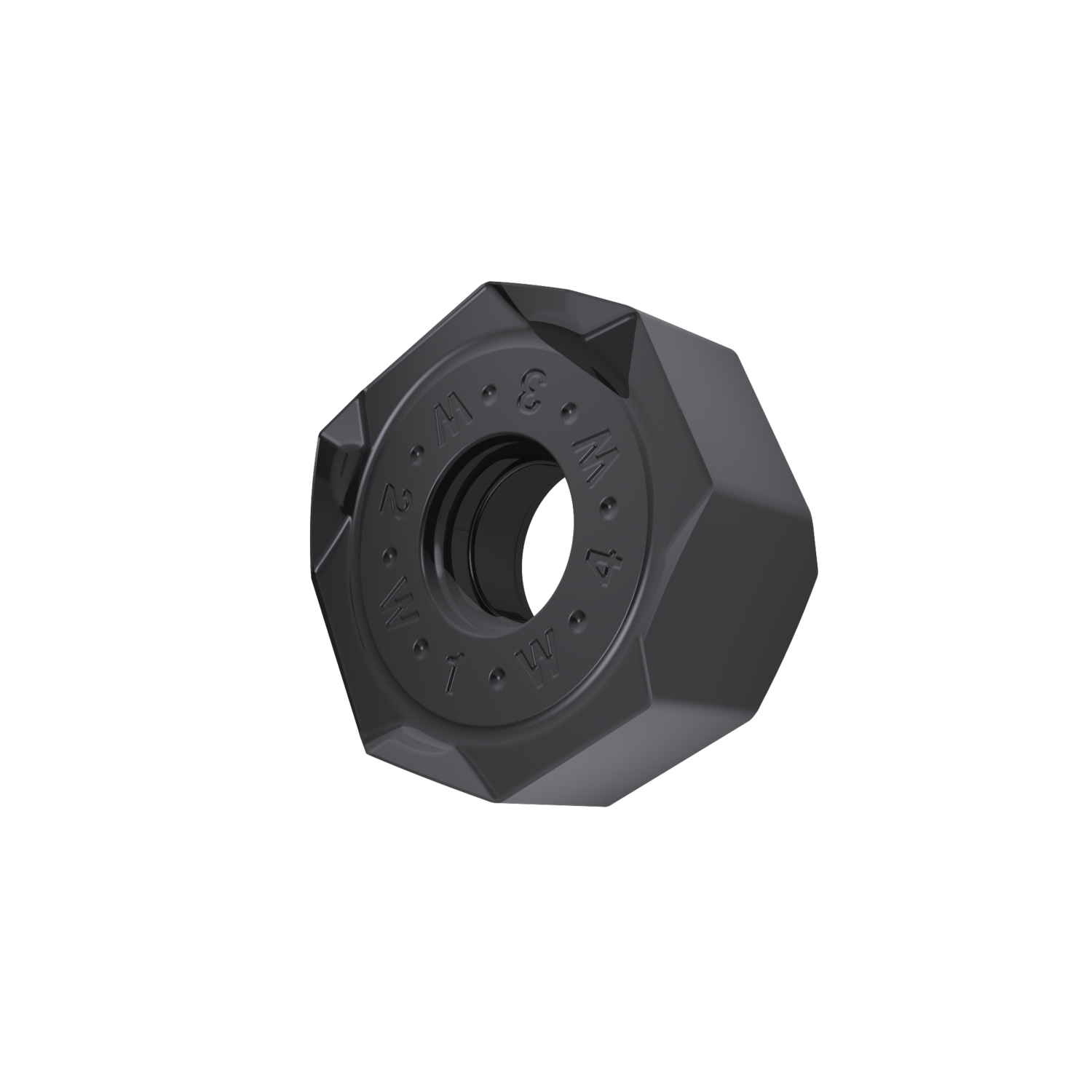

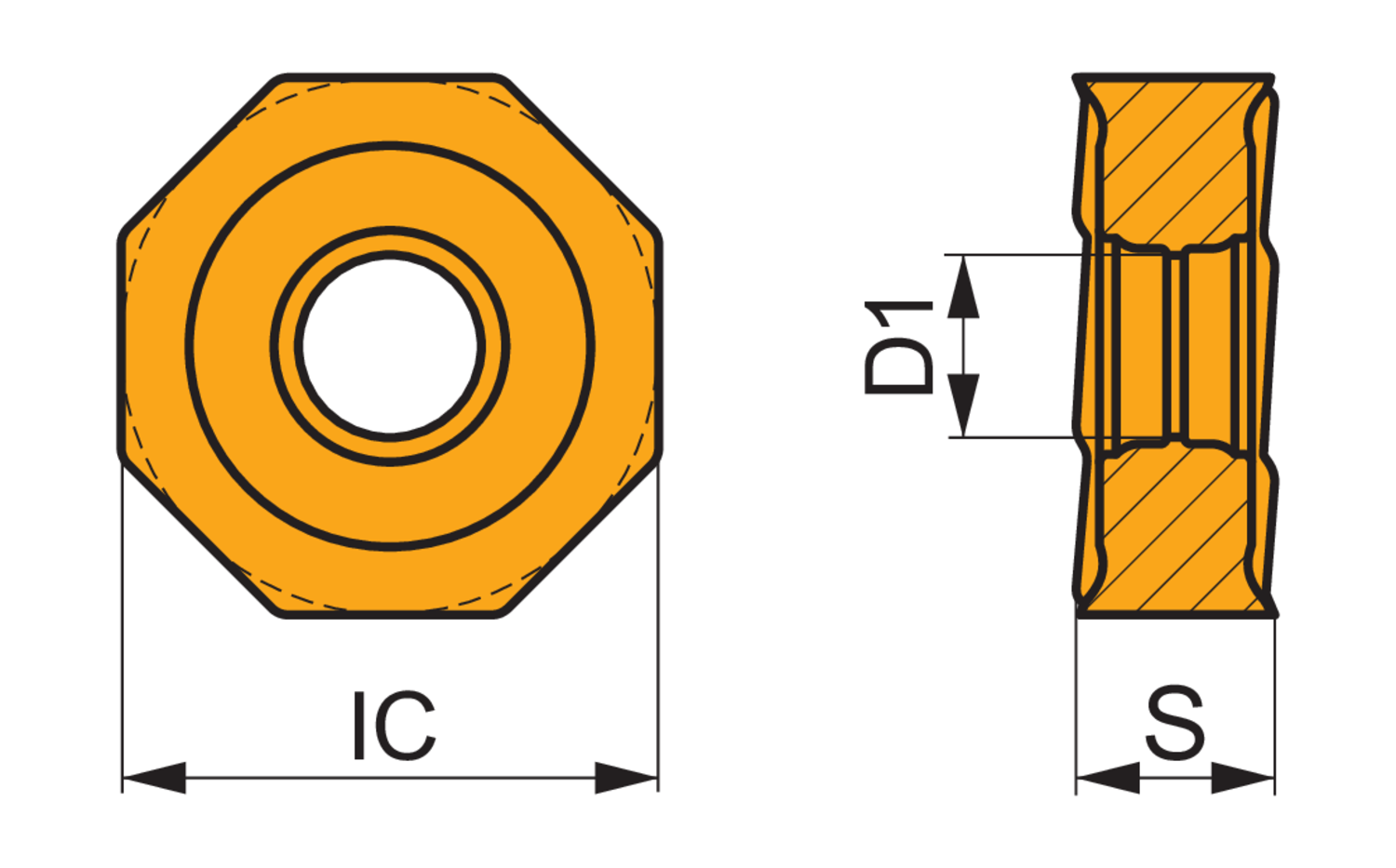

Double-sided milling insert ONMX 0605, octagonal and wiper design for a maximum depth of cut of 4mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and W geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10 -P20 for machining of steel with face mills SON06C

• Product Name ISO: ONMX 060508SR-W:8215
• Ordering Code ANSI: ONMX 060508SR-W:8215
• EDP Number: 8348750
• Coating: 8215
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
