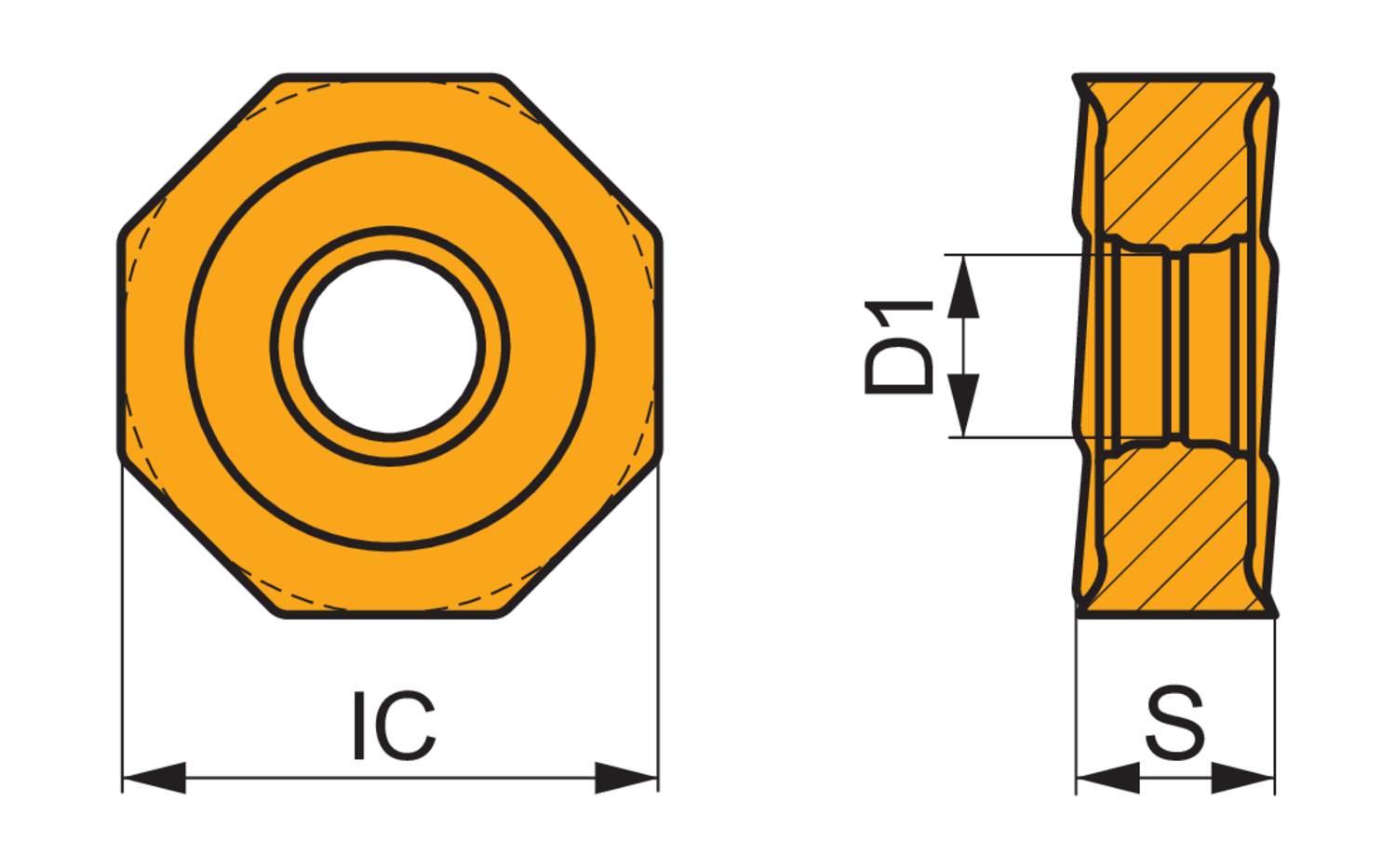

Double-sided milling insert ONMX 0605, octagonal for a maximum depth of cut of 4mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20 -P40 for machining of steel with face mills SON06C
- Product Name ISO: ONMX 060508SR-M:M8330
- Ordering Code ANSI: ONMX 060508SR-M:M8330
- EDP Number: 8348442
- Coating: M8330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.7 |
| Inscribing Circle Dia. (Mm.) | 17 |
| Insert Thickness (Mm.) | 5.56 |
| Coating | M8330 |
