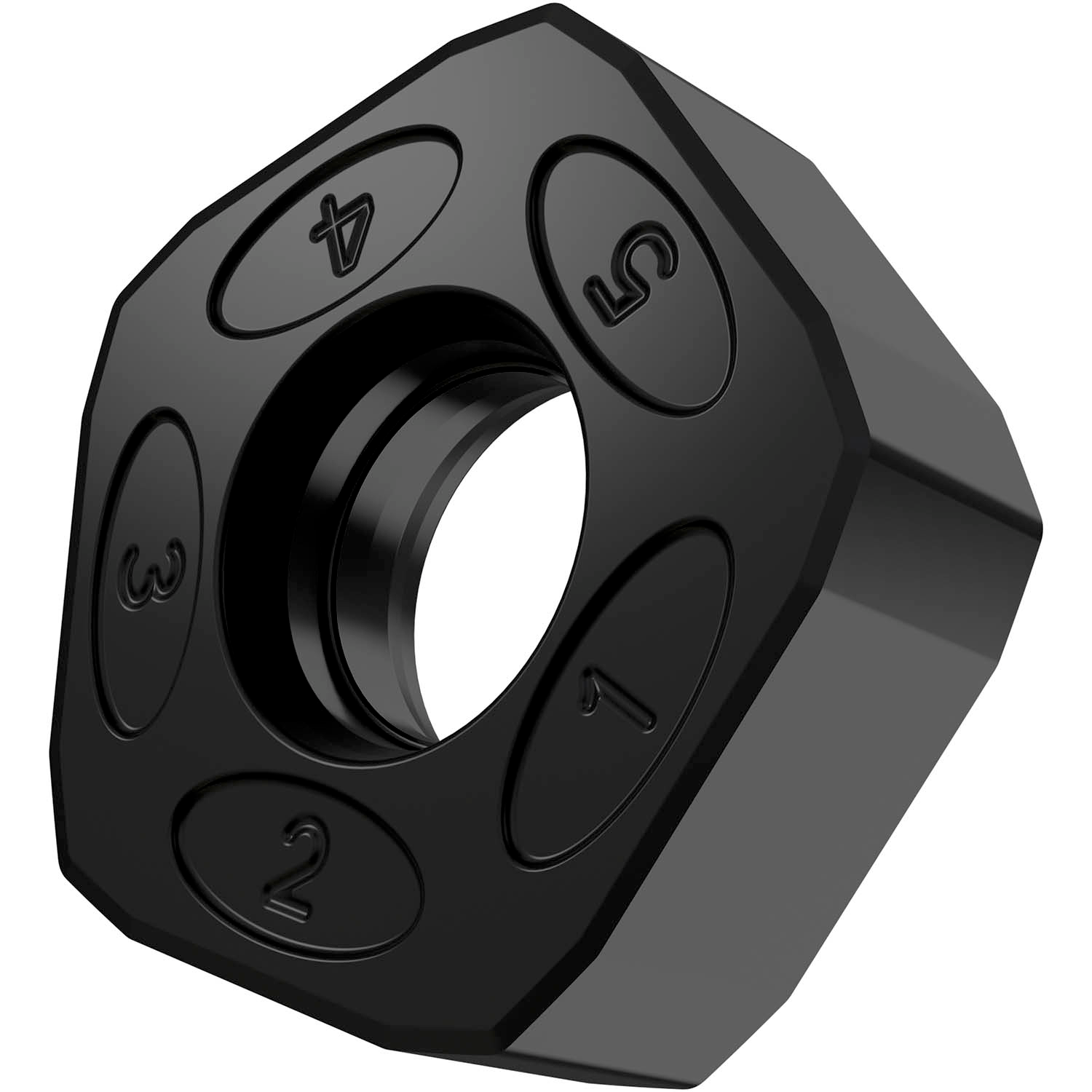

Double-sided milling insert PNMQ 1308, pentagonal for a maximum depth of cut of .3937", with " corner radius, an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide for machining with face mills SPN13
- Product Name ISO: PNMQ 1308DNSN:M8345
- Ordering Code ANSI: PNMQ 1308DNSN:M8345
- EDP Number: 6756181
- Coating: M8345

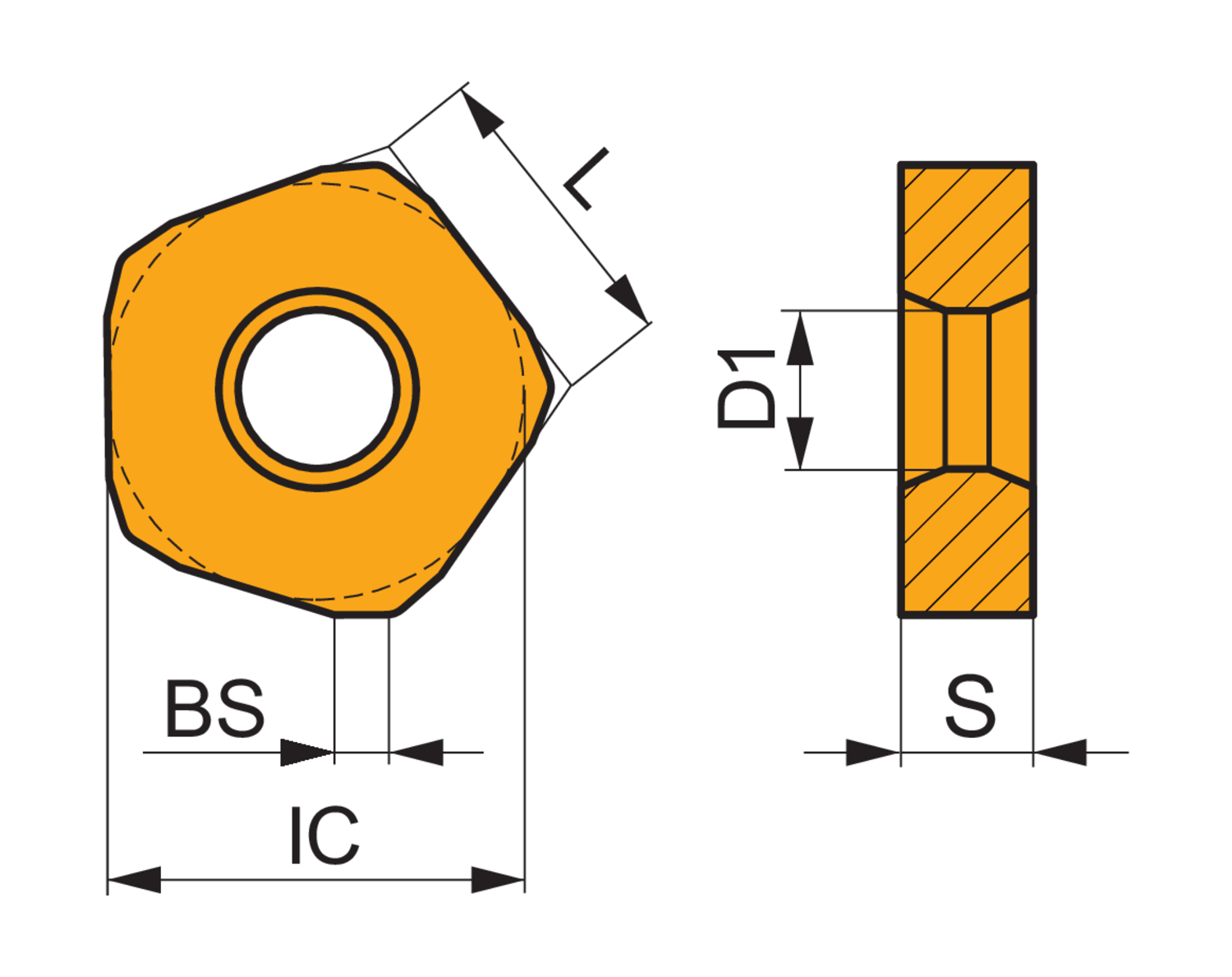

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 10 |
| Fixing Hole Diameter (Mm.) | 10 |
| Inscribing Circle Dia. (Mm.) | 24.4 |
| Insert Thickness (Mm.) | 7.94 |
| Max Depth of Cut (In.) | 0.394 |
| Coating | M8345 |
