Double-sided milling insert PNMU 1308 with chip-breakers, pentagonal for a maximum depth of cut of .3937", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with face mills SPN13
- Product Name ISO: PNMU 1308DNSR-M:M8345
- Ordering Code ANSI: PNMU 1308DNSR-M:M8345
- EDP Number: 6756164
- Coating: M8345
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

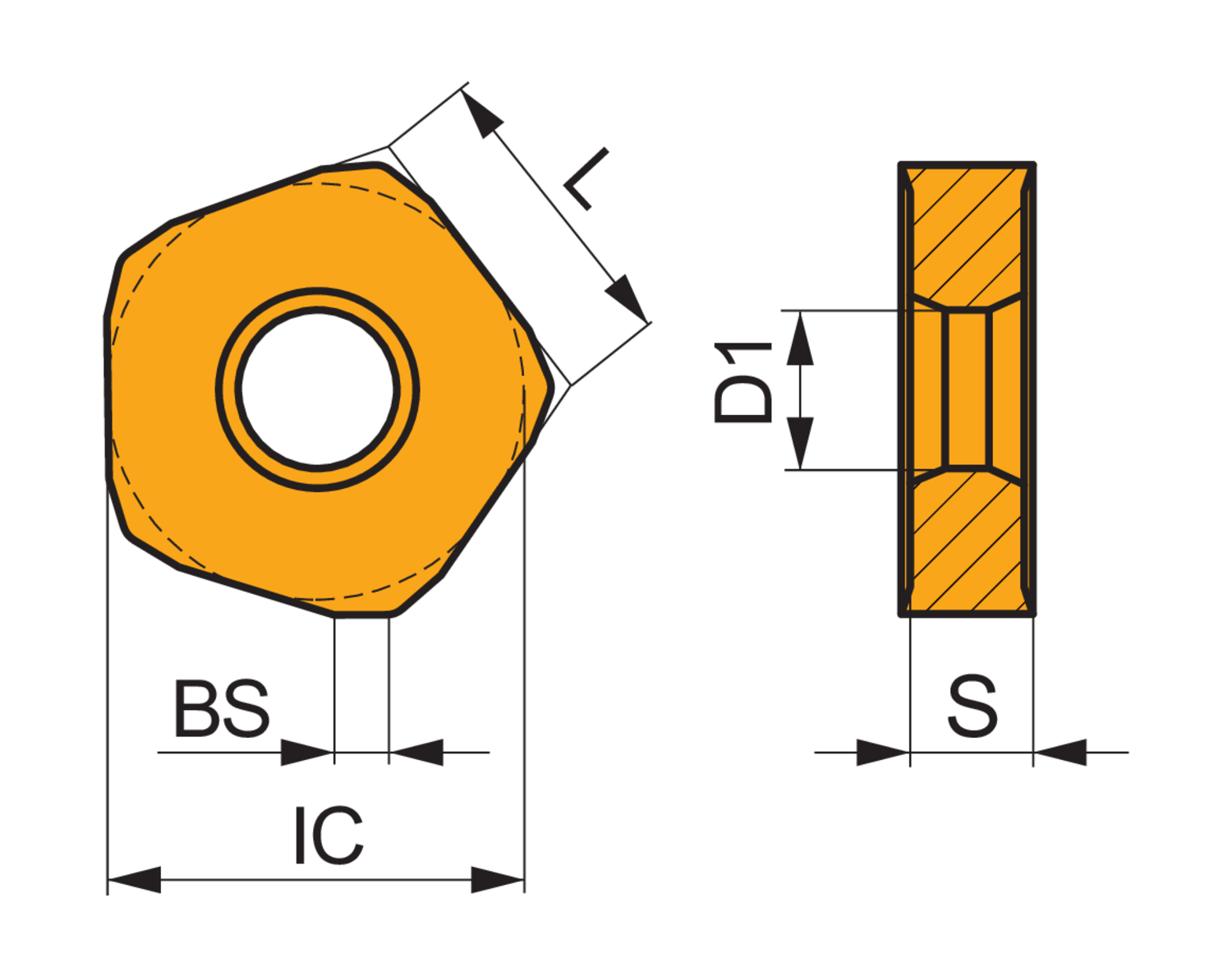

| Depth of Cut Maximum (Mm.) | 10 |
| Fixing Hole Diameter (Mm.) | 10 |
| Inscribing Circle Dia. (Mm.) | 24.4 |
| Insert Thickness (Mm.) | 7.94 |
| Max Depth of Cut (In.) | 0.394 |
| Coating | M8345 |
