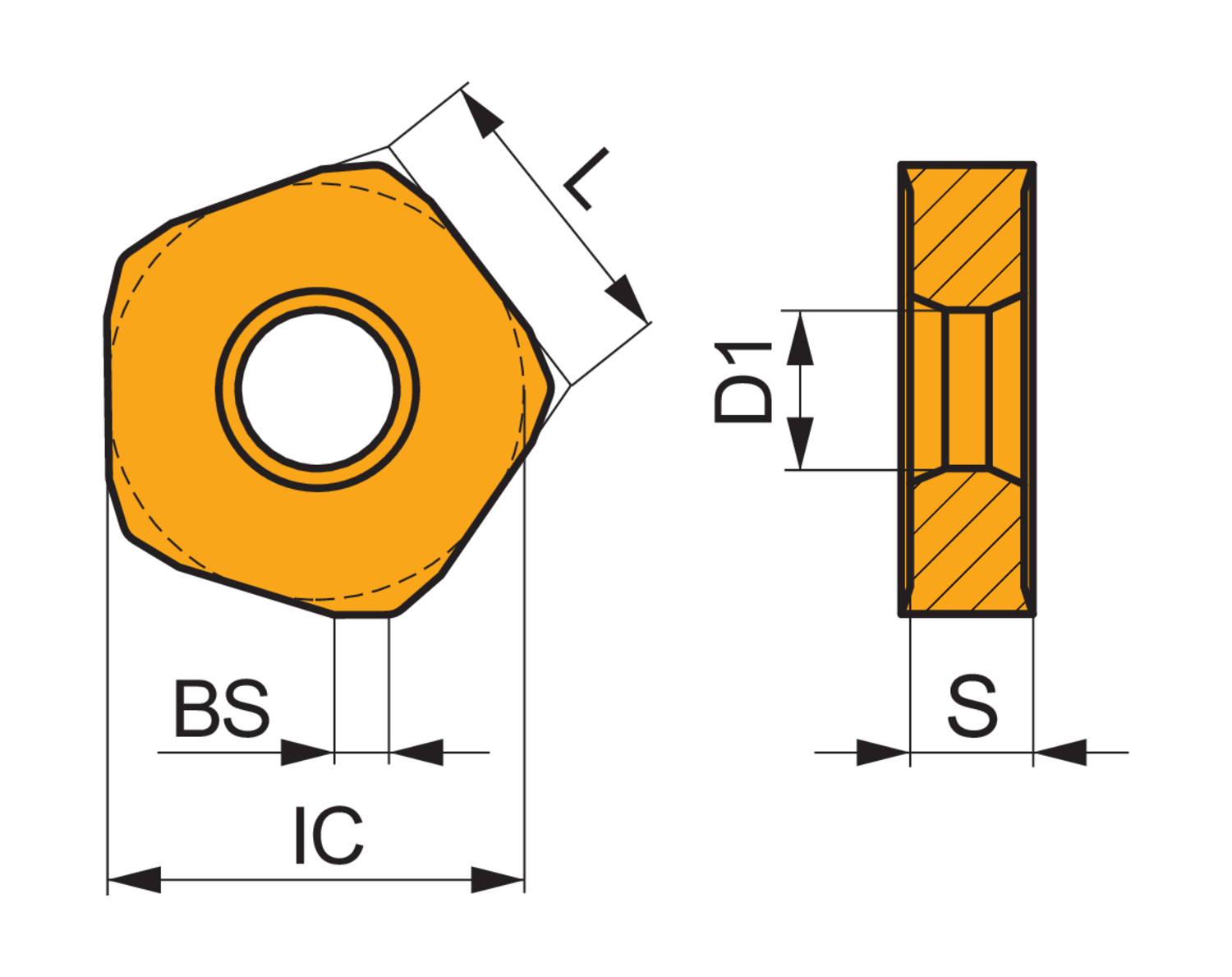

Double-sided milling insert PNMU 1308 with chip-breakers, pentagonal for a maximum depth of cut of .3937", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide for machining with face mills SPN13

• Product Name ISO: PNMU 1308DNSR-M:M9340
• Ordering Code ANSI: PNMU 1308DNSR-M:M9340
• EDP Number: 6756165
• Coating: M9340
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
