Double-sided milling insert PNMU 1308 with chip-breakers, pentagonal for a maximum depth of cut of .3937", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with face mills SPN13
- Product Name ISO: PNMU 1308DNSR-M:M8330
- Ordering Code ANSI: PNMU 1308DNSR-M:M8330
- EDP Number: 7447929
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

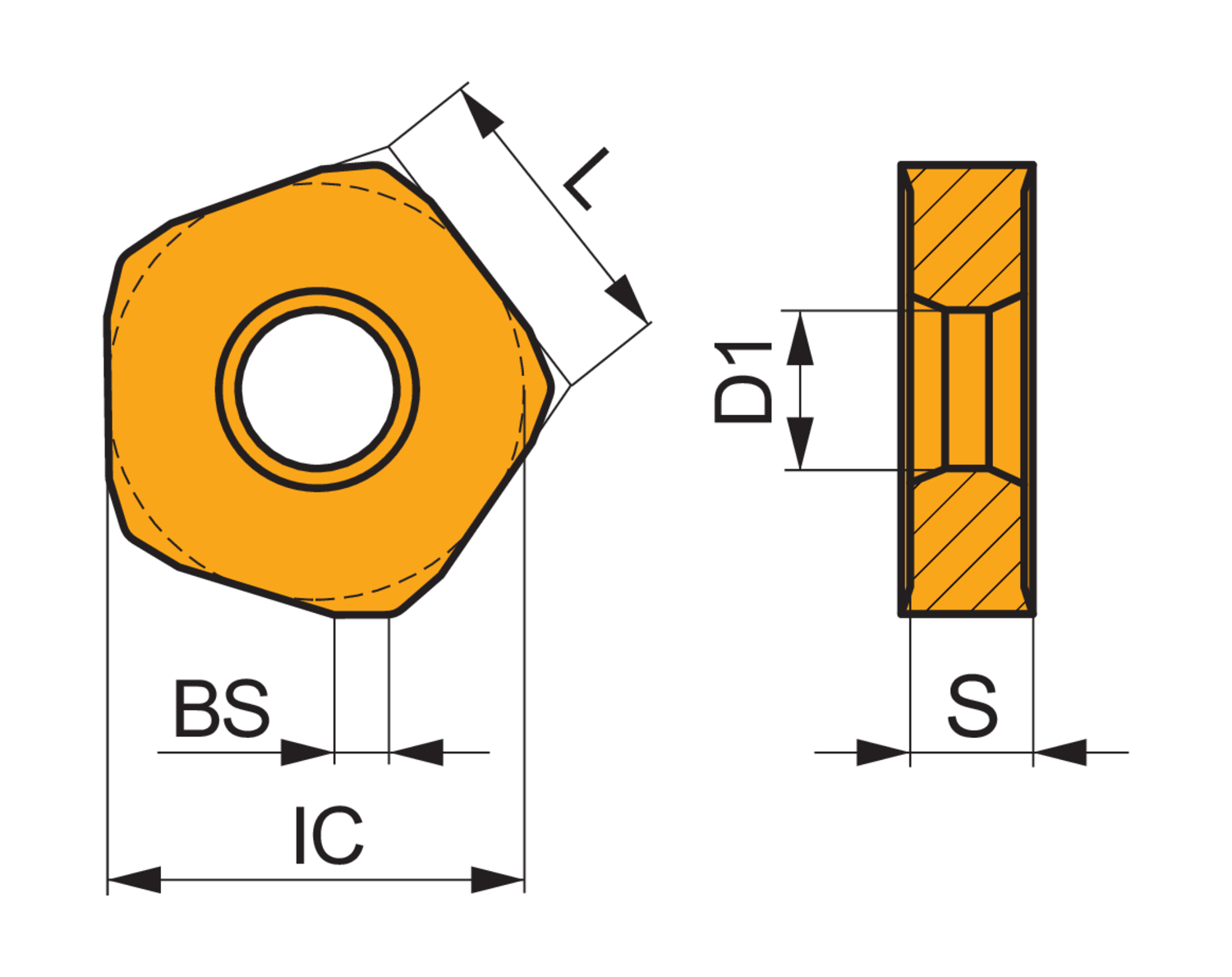

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 10 |
| Fixing Hole Diameter (Mm.) | 10 |
| Inscribing Circle Dia. (Mm.) | 24.4 |
| Insert Thickness (Mm.) | 7.94 |
| Max Depth of Cut (In.) | 0.394 |
| Coating | M8330 |
