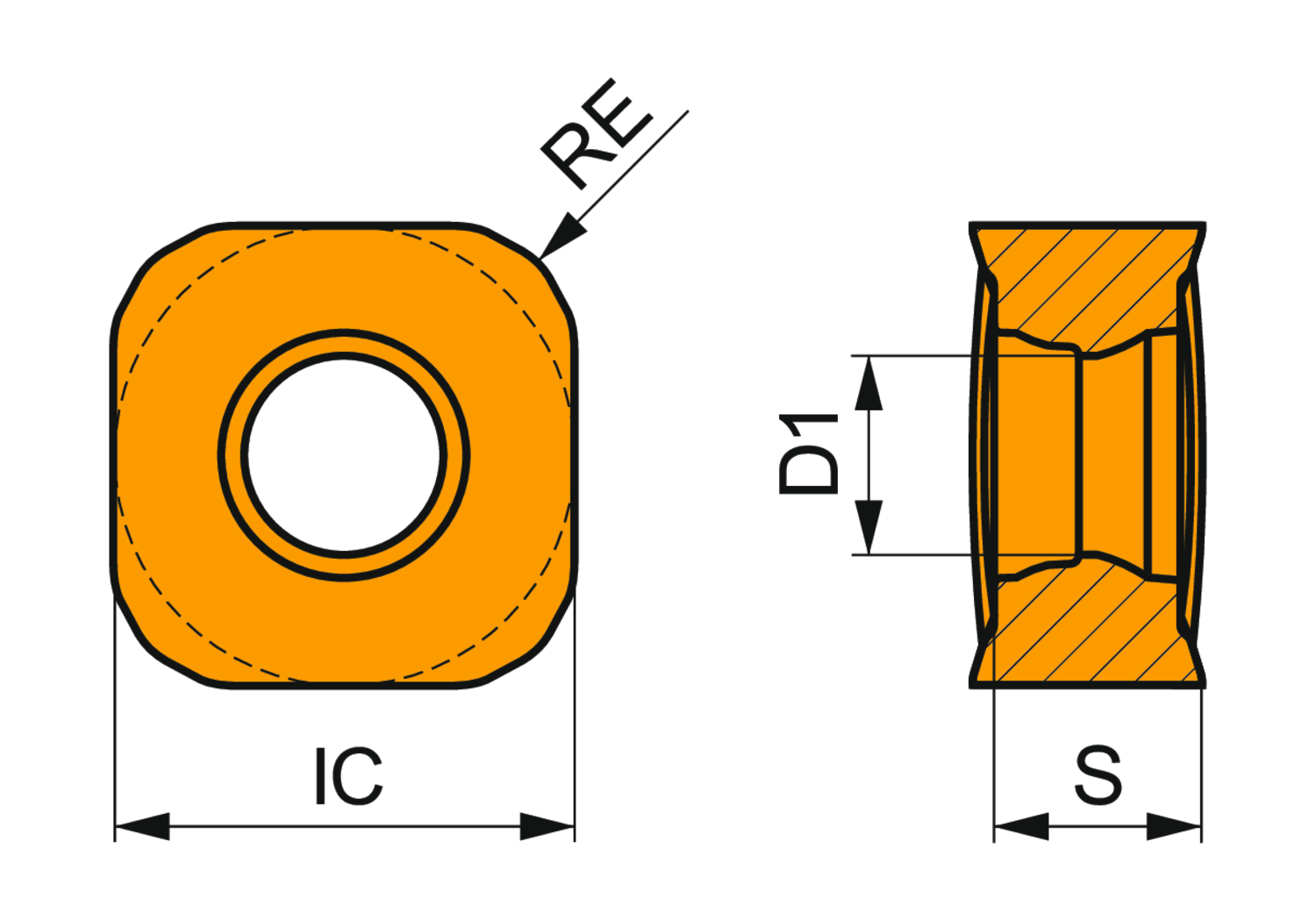

Double-sided milling insert SNGX 1104, square for a maximum depth of cut of 1.7mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-G and MM geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade ranges P35 -P50/M30 -M40 and S15 -S20 for machining of steel, stainless-steel and superalloy with high feed cutters SSN11

• Product Name ISO: SNGX 110416SR-MM:M9340
• Ordering Code ANSI: SNGX 110416SR-MM:M9340
• EDP Number: 7799797
• Coating: M9340
• Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
