Double-sided milling insert SNGX 1104, square for a maximum depth of cut of 1.7mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade range P35 -P50 for machining of steel with high feed cutters SSN11
- Product Name ISO: SNGX 110416SR-M:M9340
- Ordering Code ANSI: SNGX 110416SR-M:M9340
- EDP Number: 7799792
- Coating: M9340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

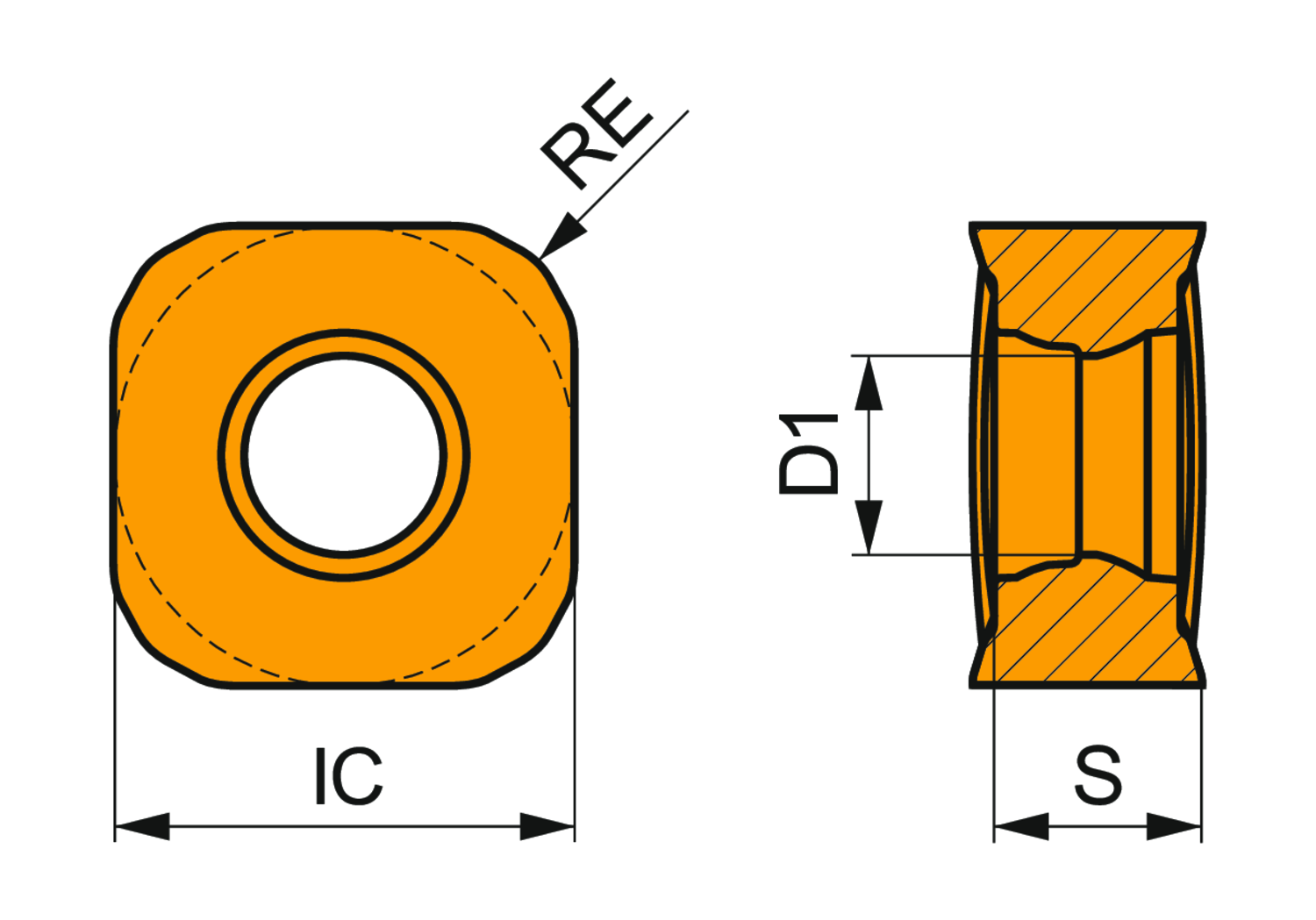

| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 1.6 |
| Fixing Hole Diameter (Mm.) | 4.56 |
| Inscribing Circle Dia. (Mm.) | 10.6 |
| Insert Thickness (Mm.) | 4.76 |
| Coating | M9340 |
