Double-sided milling insert SNGX 1305, square for a maximum depth of cut of .4724", with .0472" corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with shoulder mills with extended flute J(T)-SLSN
- Product Name ISO: SNGX 130512SN-M:M8340
- Ordering Code ANSI: SNGX 130512SN-M:M8340
- EDP Number: 6801321
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

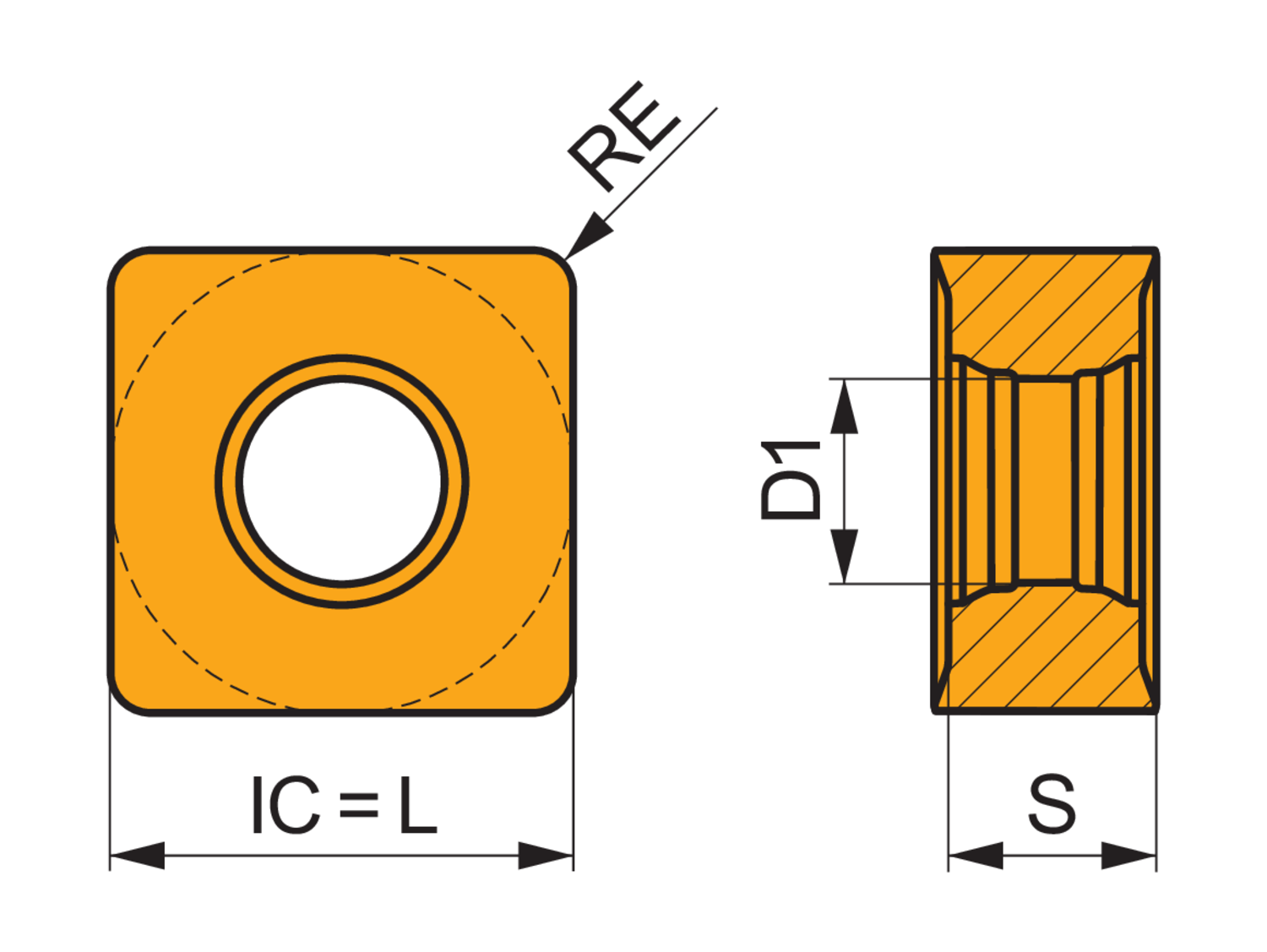

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 5.9 |
| Inscribing Circle Dia. (Mm.) | 13.2 |
| Insert Thickness (Mm.) | 5.96 |
| Max Depth of Cut (In.) | 0.472 |
| Coating | M8340 |
