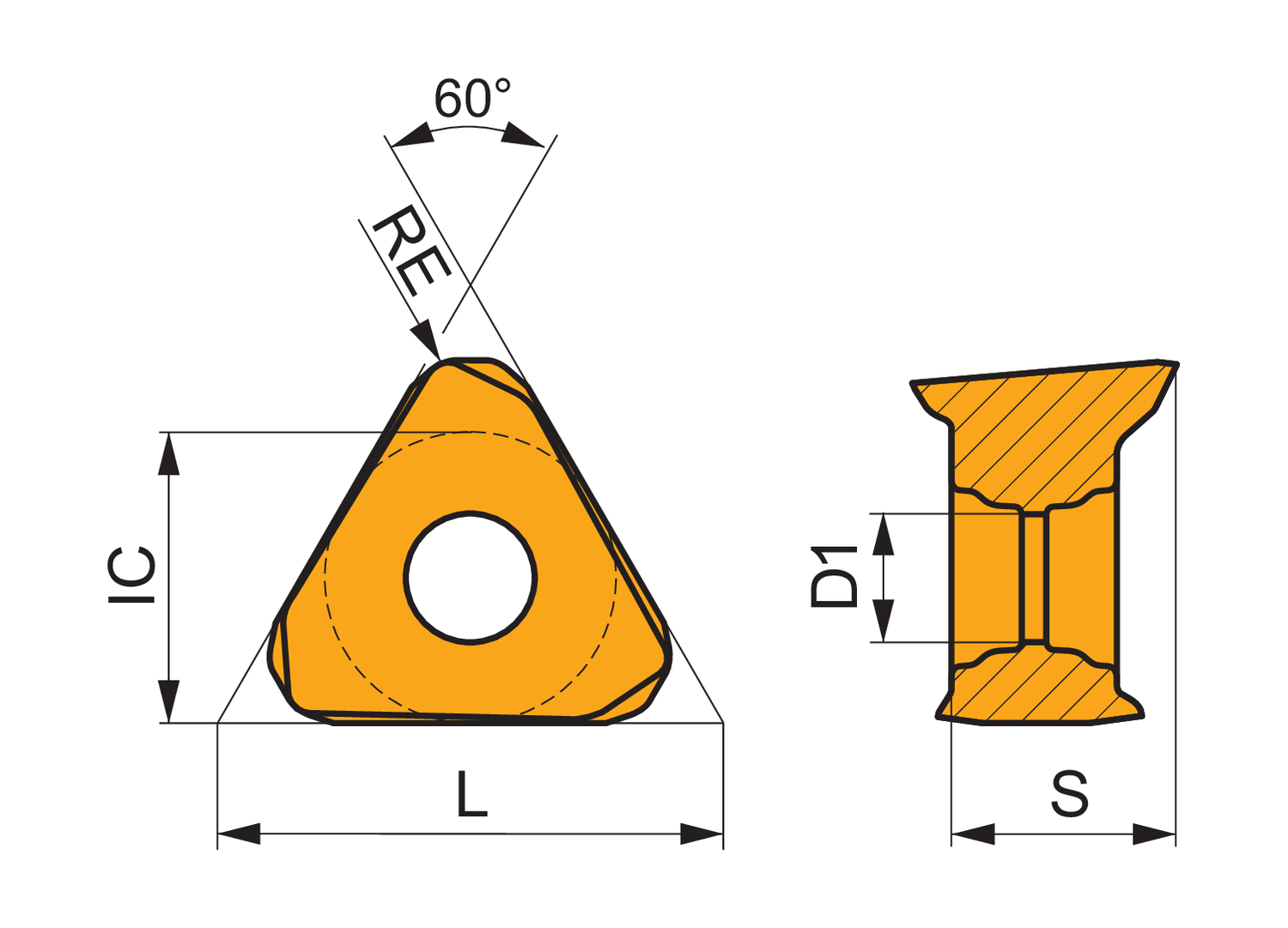

Double-sided milling insert TNGX 1606, triangular for a maximum depth of cut of 10.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide within ISO-grade range P10 -P30 for machining of steel with shoulder face mills STN16

• Product Name ISO: TNGX 160608SR-M:M9325
• Ordering Code ANSI: TNGX 160608SR-M:M9325
• EDP Number: 8019799
• Coating: M9325
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
