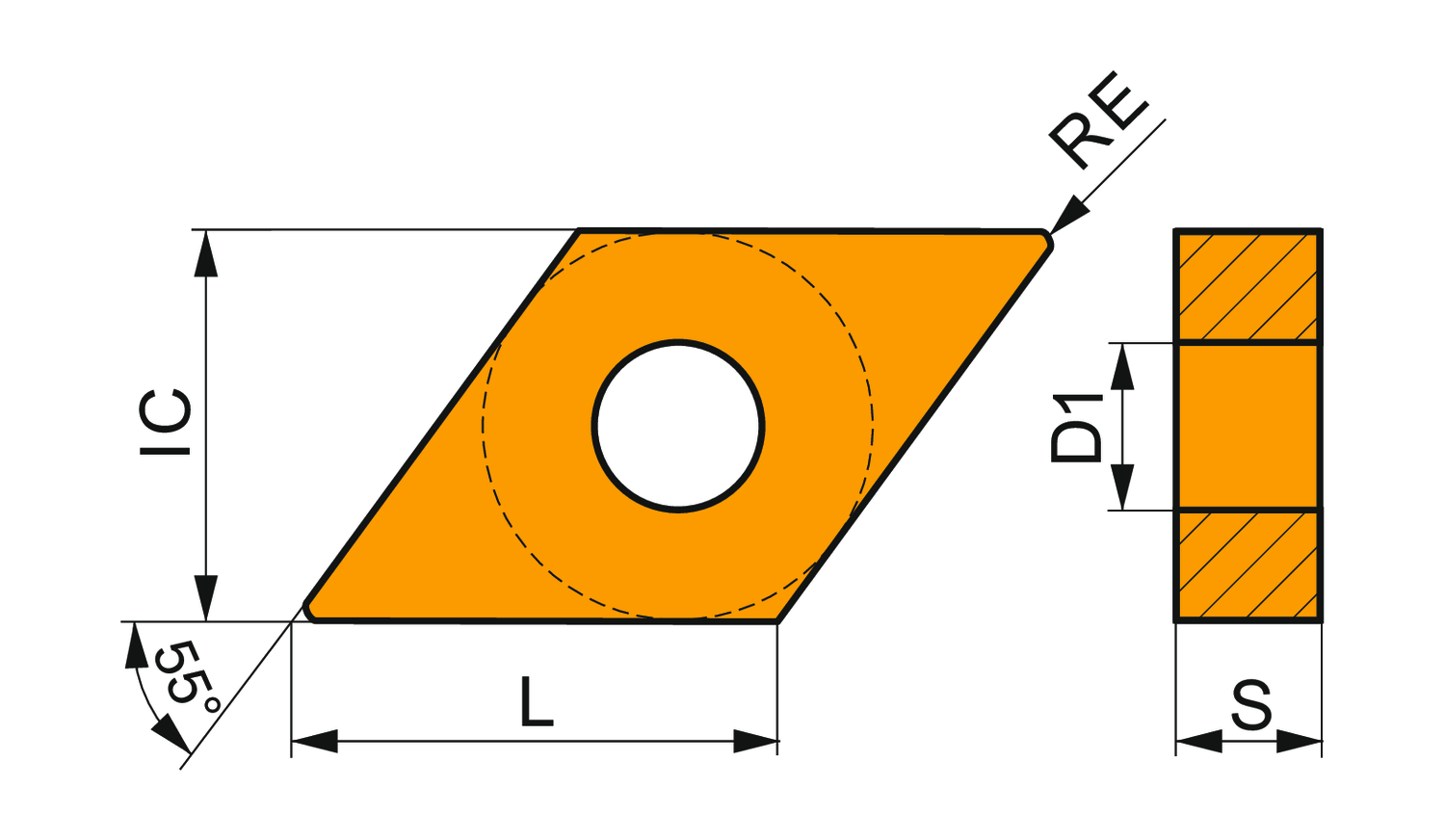

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 1/2", 1/4" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO range K05 - K20, for fine to medium machining of cast-irons
- Product Name ISO: DNMA 150604:T6310
- Ordering Code ANSI: DNMA 441:T6310
- EDP Number: 6922856
- Coating: T6310
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3.9 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 5.16 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.154 |
| Insert Geometry | Negative |
| Coating | T6310 |
