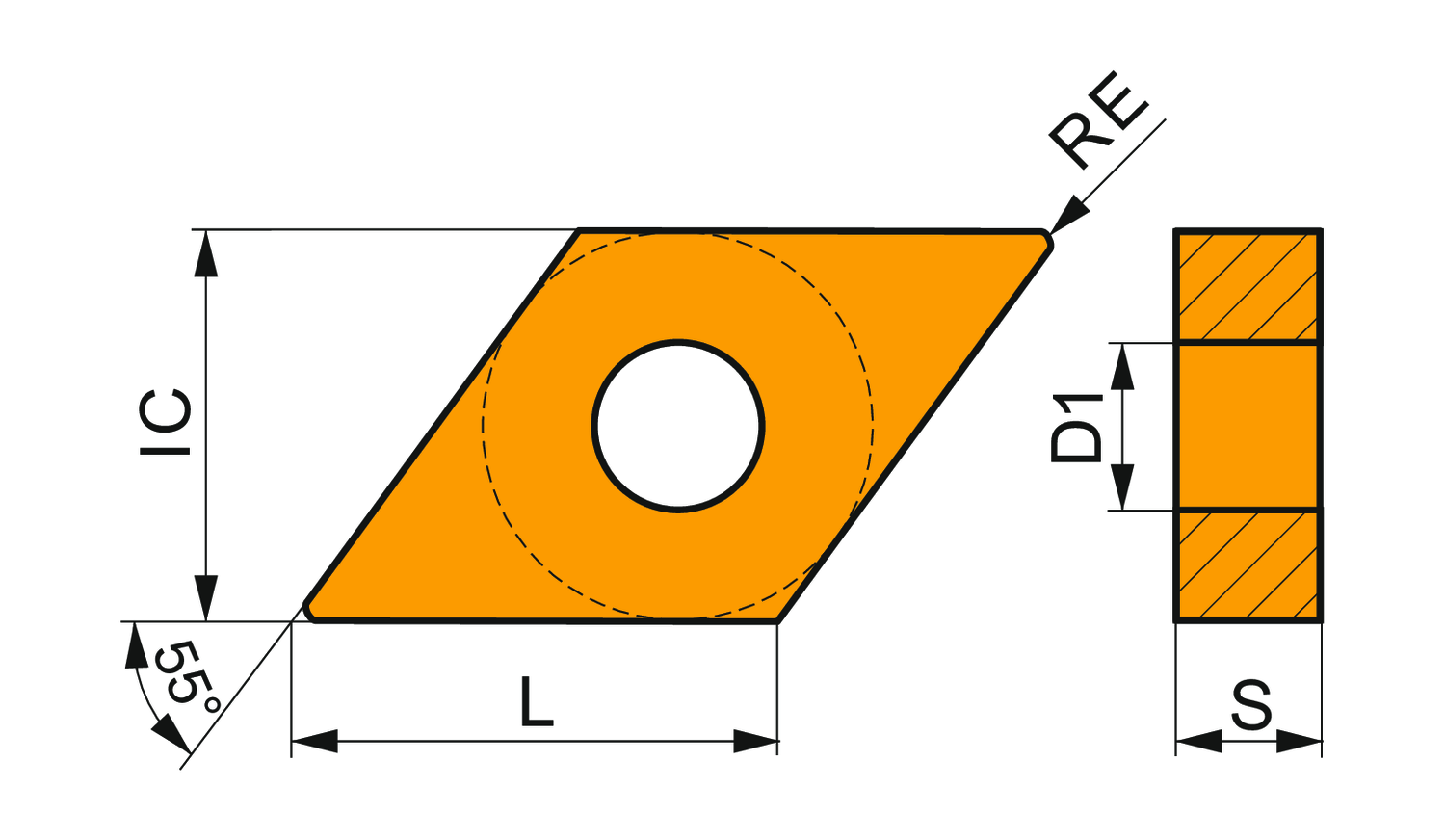

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01-K15, for fine to medium machining of cast-irons
- Product Name ISO: DNMA 150408:T5305
- Ordering Code ANSI: DNMA 432:T5305
- EDP Number: 6755822
- Coating: T5305
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3.9 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.16 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.154 |
| Insert Geometry | Negative |
| Coating | T5305 |
