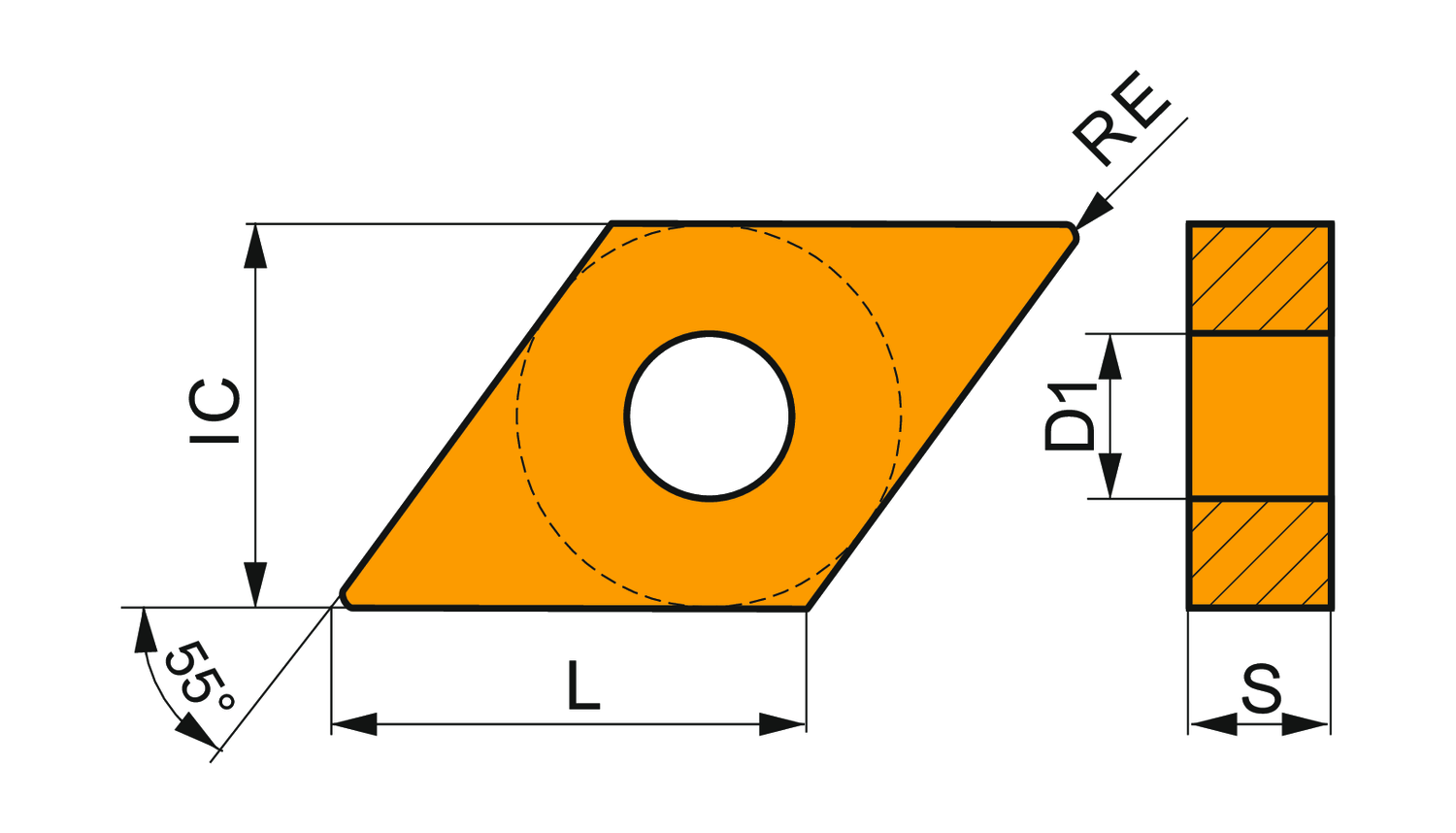

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 3/8", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker SI, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20-M40, for medium to heavy machining of stainless-steels with a right handed turning tool
- Product Name ISO: DNMG 110408ER-SI:T7335
- Ordering Code ANSI: DNMG 332R-SI:T7335
- EDP Number: 6754783
- Coating: T7335
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3.3 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 3.81 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.13 |
| Insert Geometry | Negative |
| Coating | T7335 |
