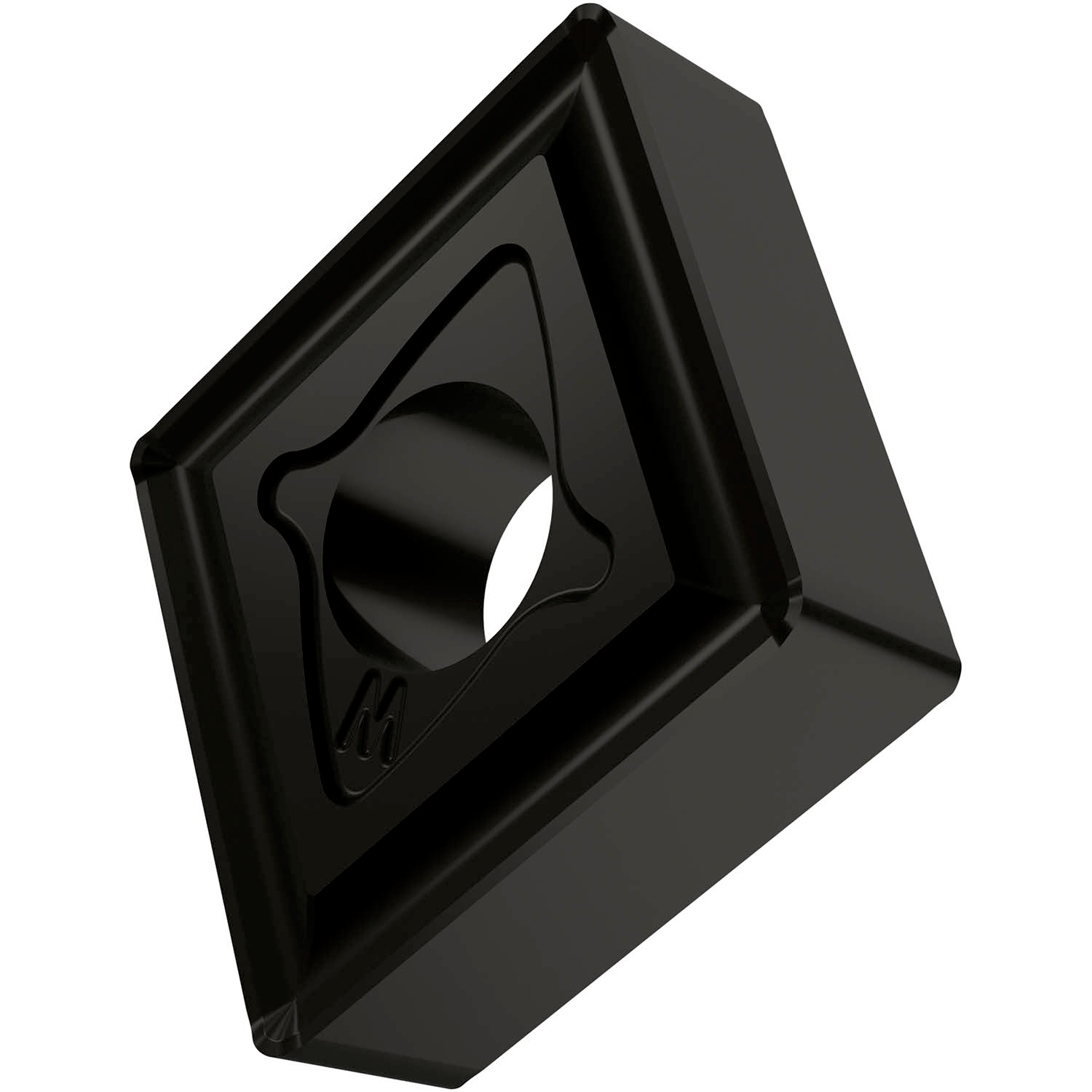

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius, indexing accuracy according to ISO-tolerance class- M, , chip-breaker MR with WIPER edge design, in grade T5315, a MT-CVD coated WC-Co carbide, for medium to heavy machining
- Product Name ISO: CNMG 120408W-MR:T5315
- Ordering Code ANSI: CNMG 432W-MR:T5315
- EDP Number: 6850839
- Coating: T5315
| Quick Ship Items | No, but I will Ship Soon |

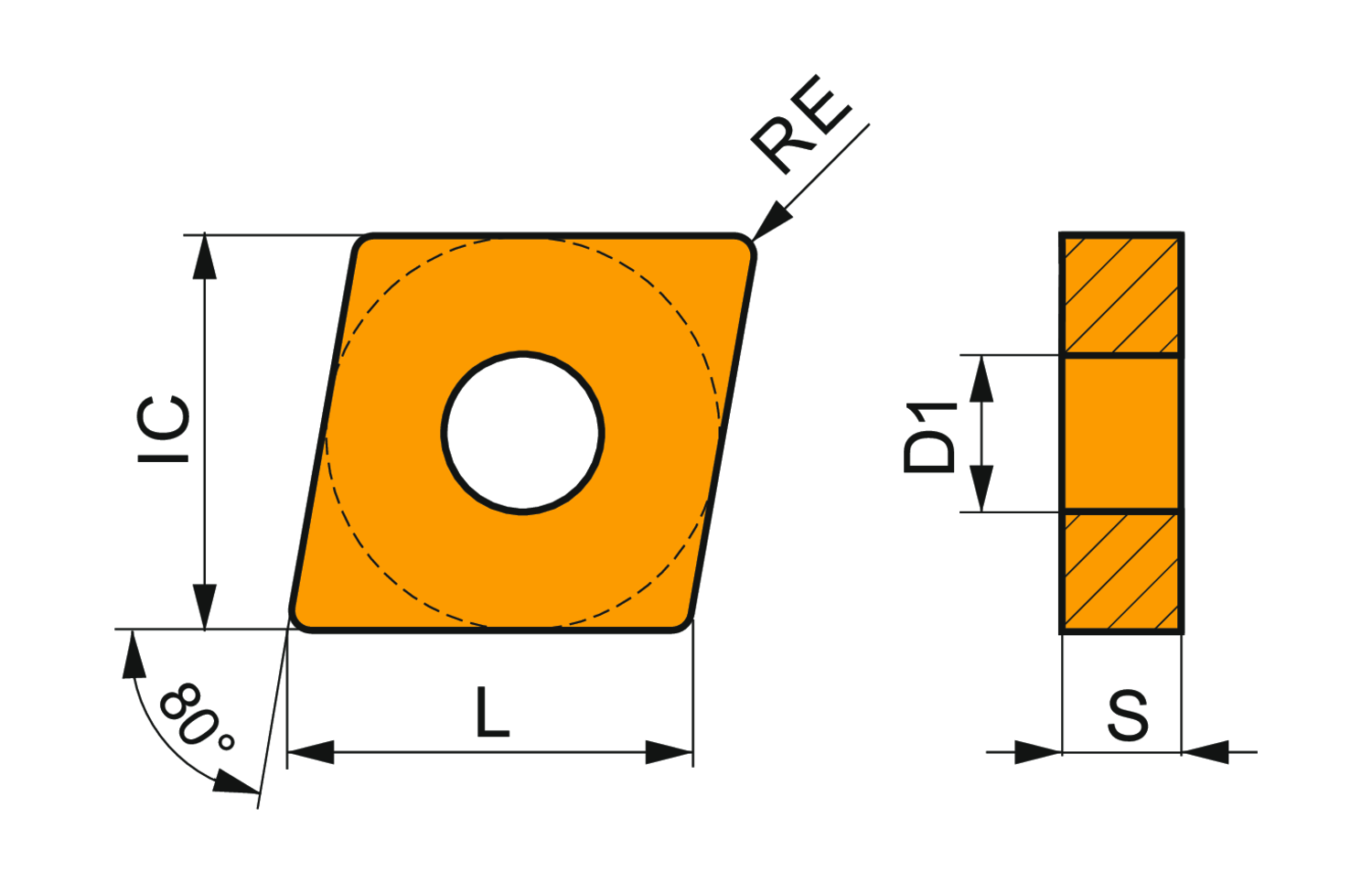

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.16 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.197 |
| Insert Geometry | Negative |
| Coating | T5315 |
