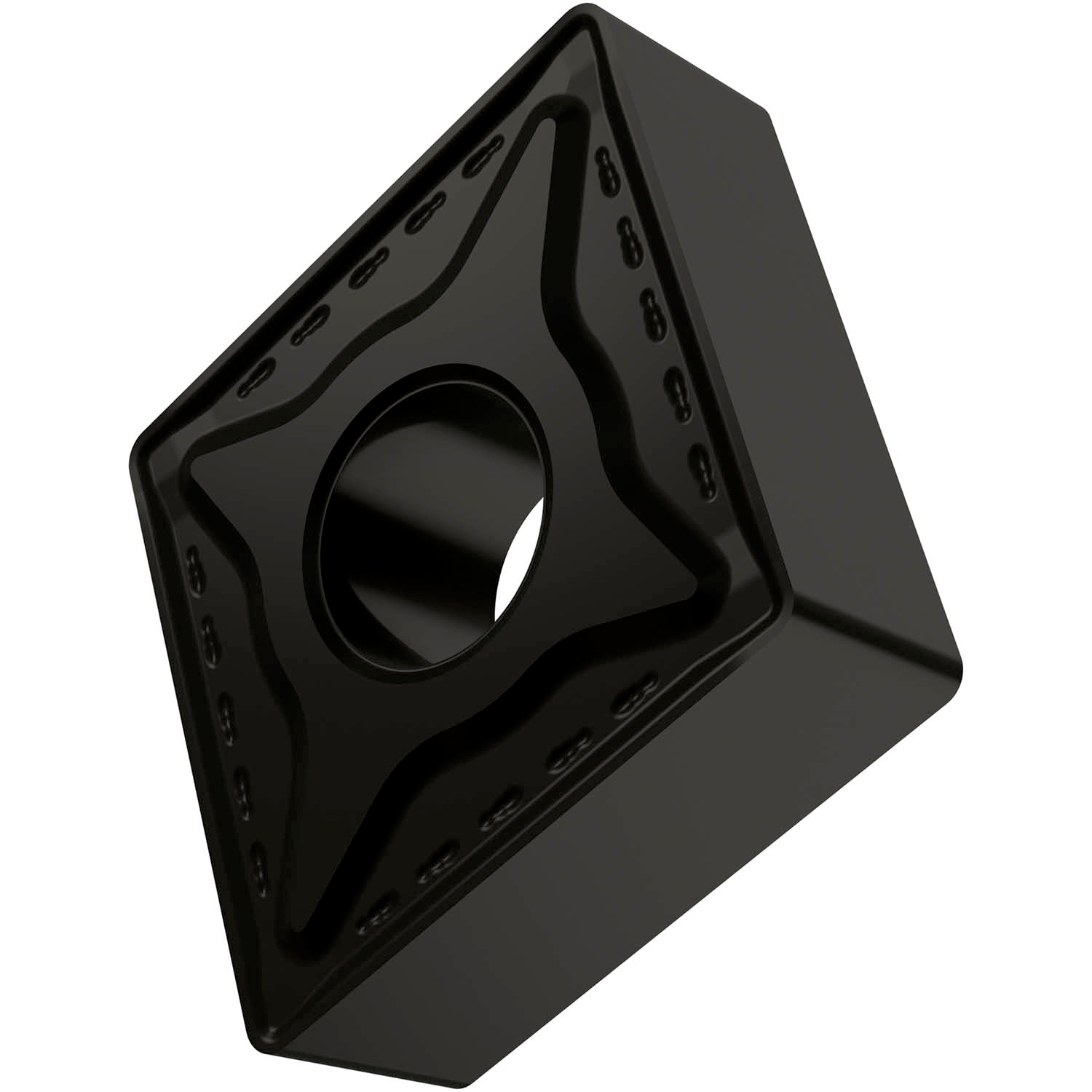

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20-M40, for medium to heavy machining of stainless-steels
- Product Name ISO: CNMG 120412E-RM:T7335
- Ordering Code ANSI: CNMG 433-RM:T7335
- EDP Number: 6922686
- Coating: T7335
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 7 |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 5.16 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.276 |
| Insert Geometry | Negative |
| Coating | T7335 |
