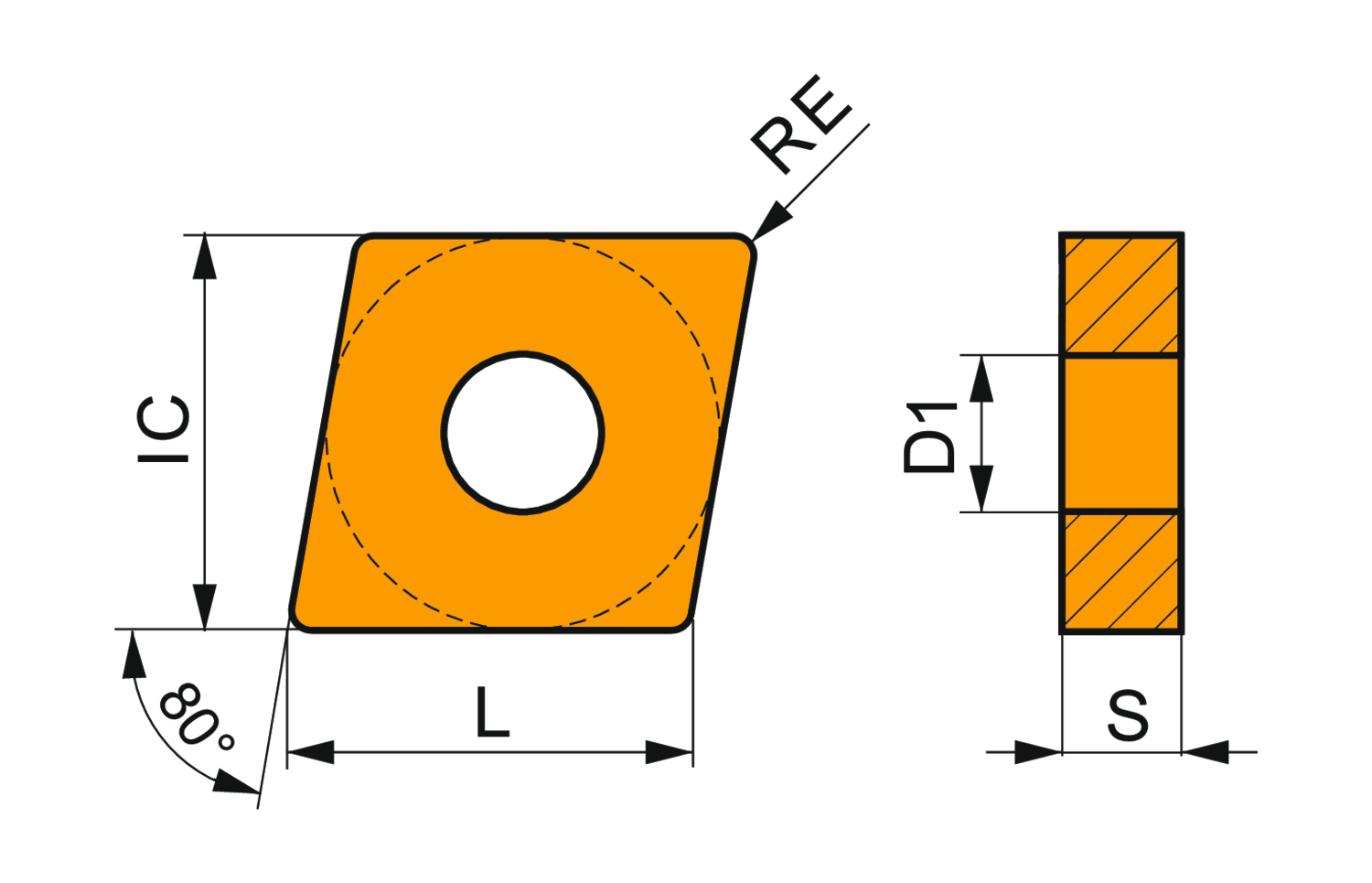

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 3/4", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker R, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for medium to heavy machining of cast-irons
- Product Name ISO: CNMG 190616E-R:T5315
- Ordering Code ANSI: CNMG 644-R:T5315
- EDP Number: 6922756
- Coating: T5315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 1.6 |
| Fixing Hole Diameter (Mm.) | 7.94 |
| Inscribing Circle Dia. (Mm.) | 19.05 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.354 |
| Insert Geometry | Negative |
| Coating | T5315 |
