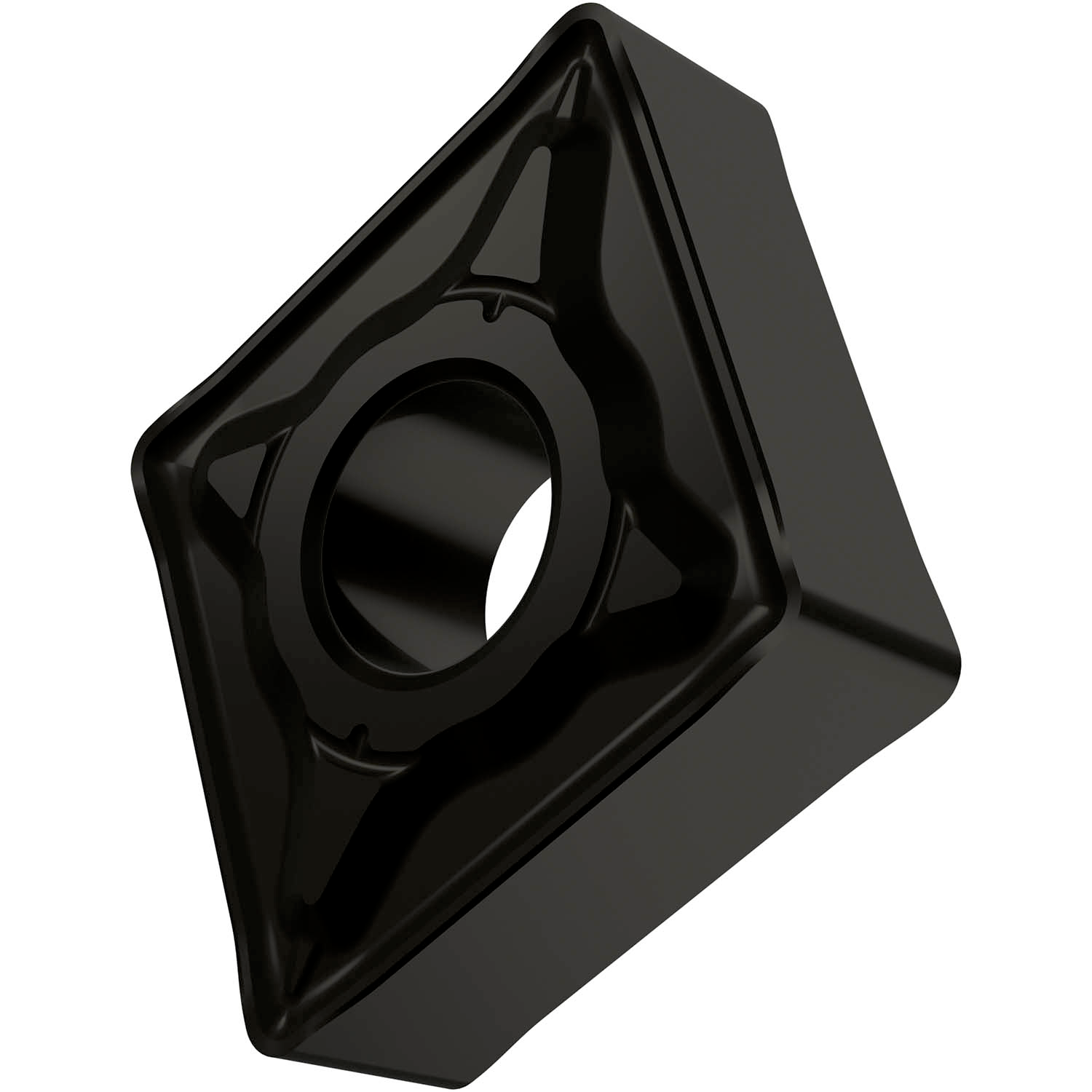

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 3/4", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NRM, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M20 - M40 and S15 - S25, for medium to heavy machining of stainless-steels and super-alloys
- Product Name ISO: CNMG 190616-NRM:T7335
- Ordering Code ANSI: CNMG 644-NRM:T7335
- EDP Number: 7271034
- Coating: T7335
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 10 |
| Corner Radius (Mm.) | 1.6 |
| Fixing Hole Diameter (Mm.) | 7.94 |
| Inscribing Circle Dia. (Mm.) | 19.05 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.394 |
| Insert Geometry | Negative |
| Coating | T7335 |
