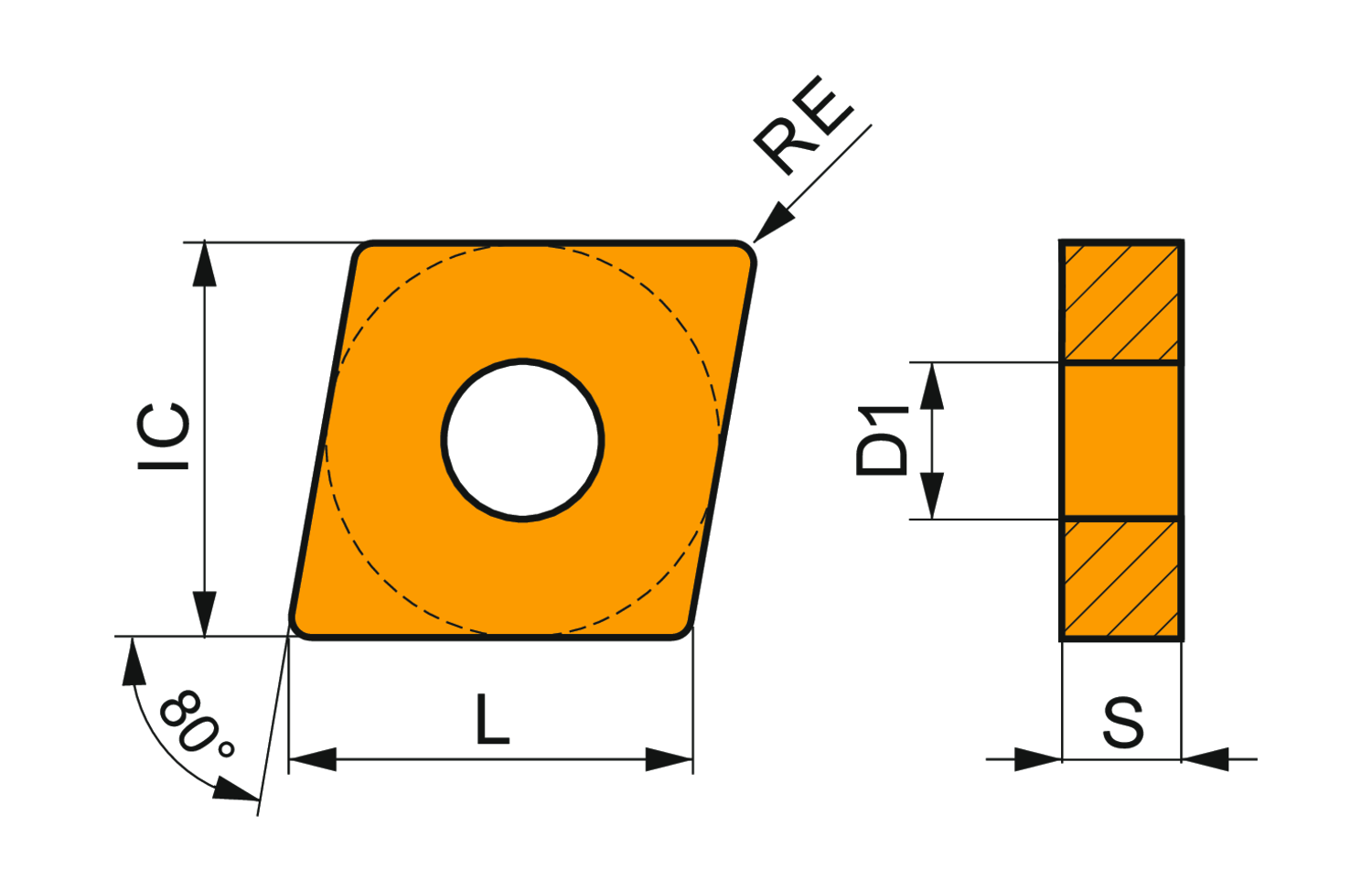

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 3/4", 1/4" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker HR2, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 - P35, for heavy to extra heavy machining of steels
- Product Name ISO: CNMM 190624-HR2:T9226
- Ordering Code ANSI: CNMM 646-HR2:T9226
- EDP Number: 7036350
- Coating: T9226
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13 |
| Corner Radius (Mm.) | 2.4 |
| Fixing Hole Diameter (Mm.) | 7.94 |
| Inscribing Circle Dia. (Mm.) | 19.05 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.512 |
| Insert Geometry | Negative |
| Coating | T9226 |
