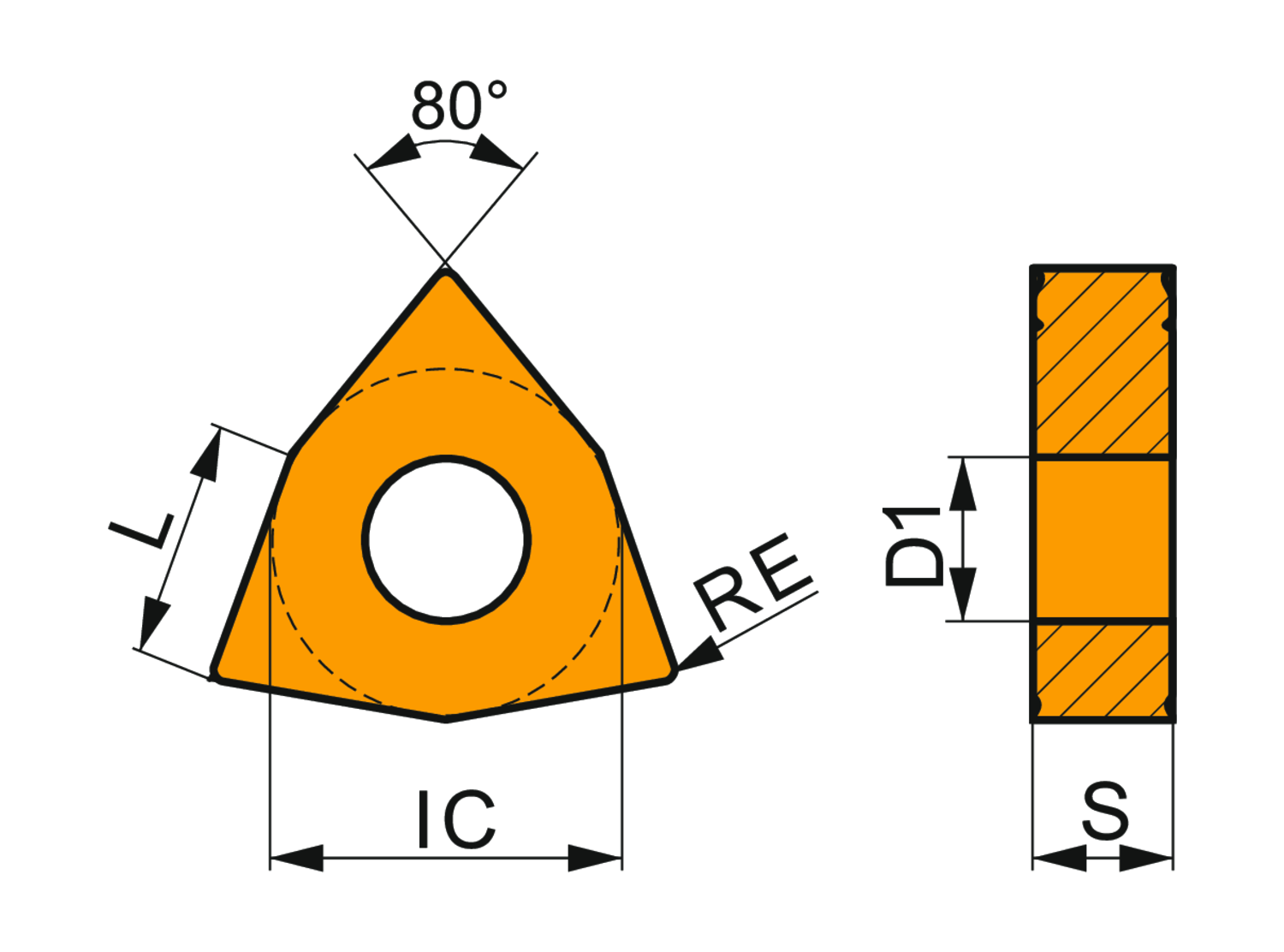

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 0.375 inch, 0.187 inch thick, 0.016 inch nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8415.
- Product Name ISO: WNMG 060404E-FM:T8415
- Ordering Code ANSI: WNMG 331-FM:T8415
- EDP Number: 8553152
- Coating: T8415
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 3.81 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Geometry | Negative |
| Coating | T8415 |
