Double-sided negative turning insert, round with a diameter of 1/2", 3/16" thick, indexing accuracy according to ISO-tolerance class- M, chip-breaker 08, in grade T5305, a MT-CVD coated WC-Co carbide, for heavy to medium machining
- Product Name ISO: RNMG 120400E-08:T5305
- Ordering Code ANSI: RNMG 43-08:T5305
- EDP Number: 6755850
- Coating: T5305
Product Measurement Standard | Metric |
Depth of Cut Maximum (Mm.) | 4.8 |
Fixing Hole Diameter (Mm.) | 5.16 |

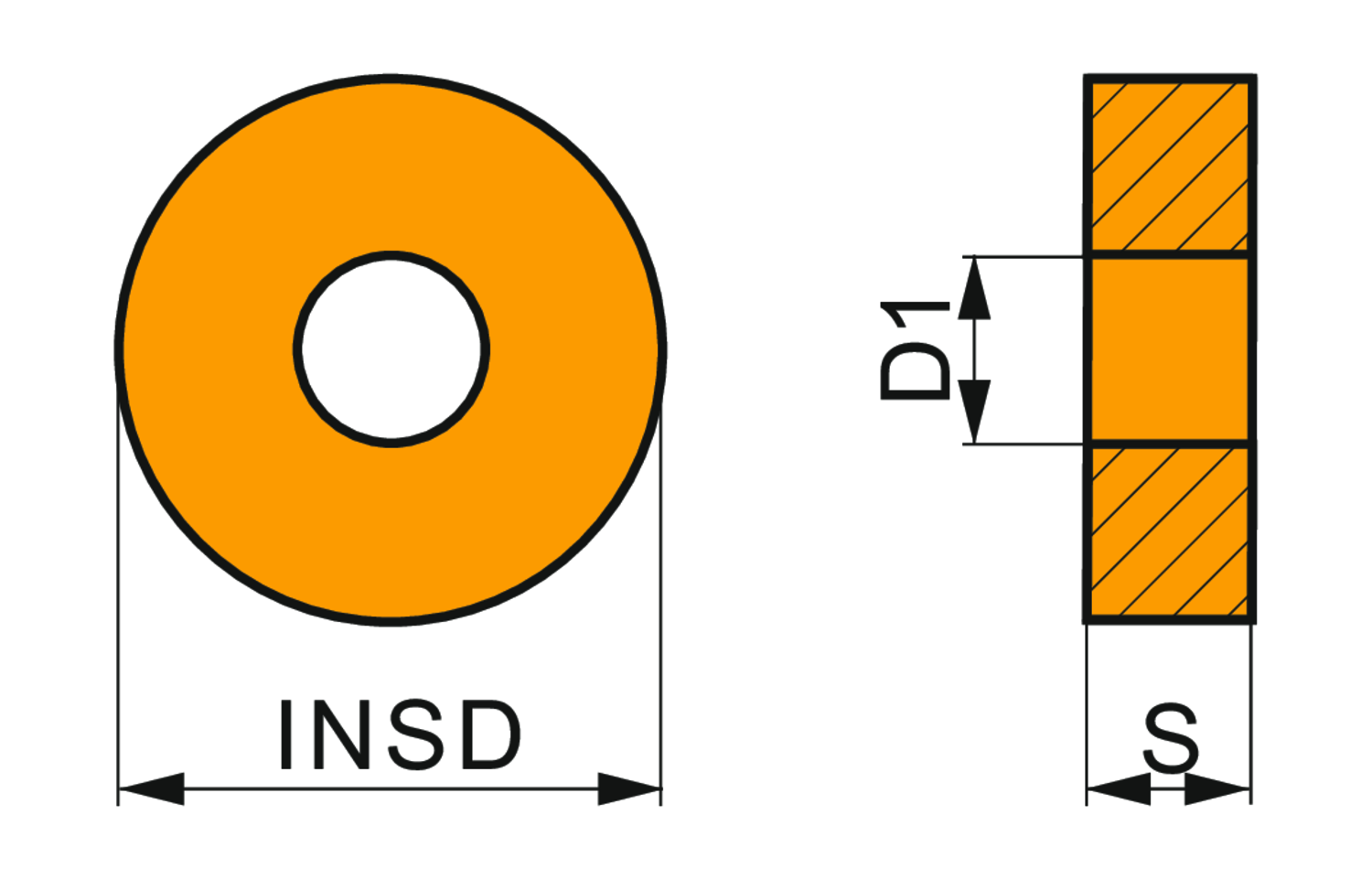

Insert Dia. (Mm.) | 12.7 |
Insert Thickness (Mm.) | 4.76 |
Max Depth of Cut (In.) | 0.189 |
Insert Geometry | Negative |
Coating | T5305 |
