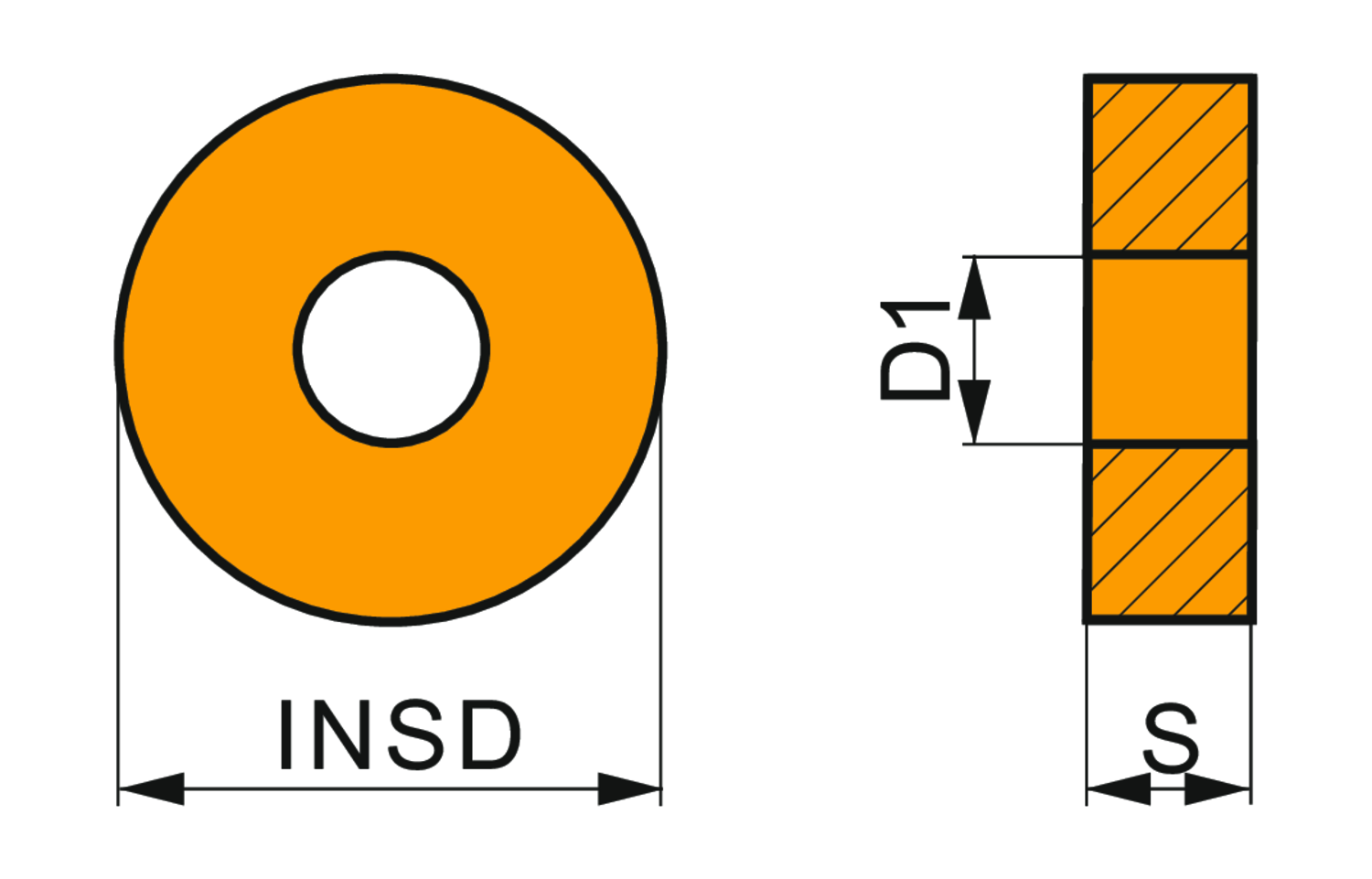

Double-sided negative turning insert, round with a diameter of 5/8", 1/4" thick, indexing accuracy according to ISO-tolerance class- M, chip-breaker 08, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide, for heavy to medium machining
- Product Name ISO: RNMG 150600E-08:T9325
- Ordering Code ANSI: RNMG 54-08:T9325
- EDP Number: 6753995
- Coating: T9325
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 6 |
| Fixing Hole Diameter (Mm.) | 6.35 |
| Insert Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.236 |
| Insert Geometry | Negative |
| Coating | T9325 |
